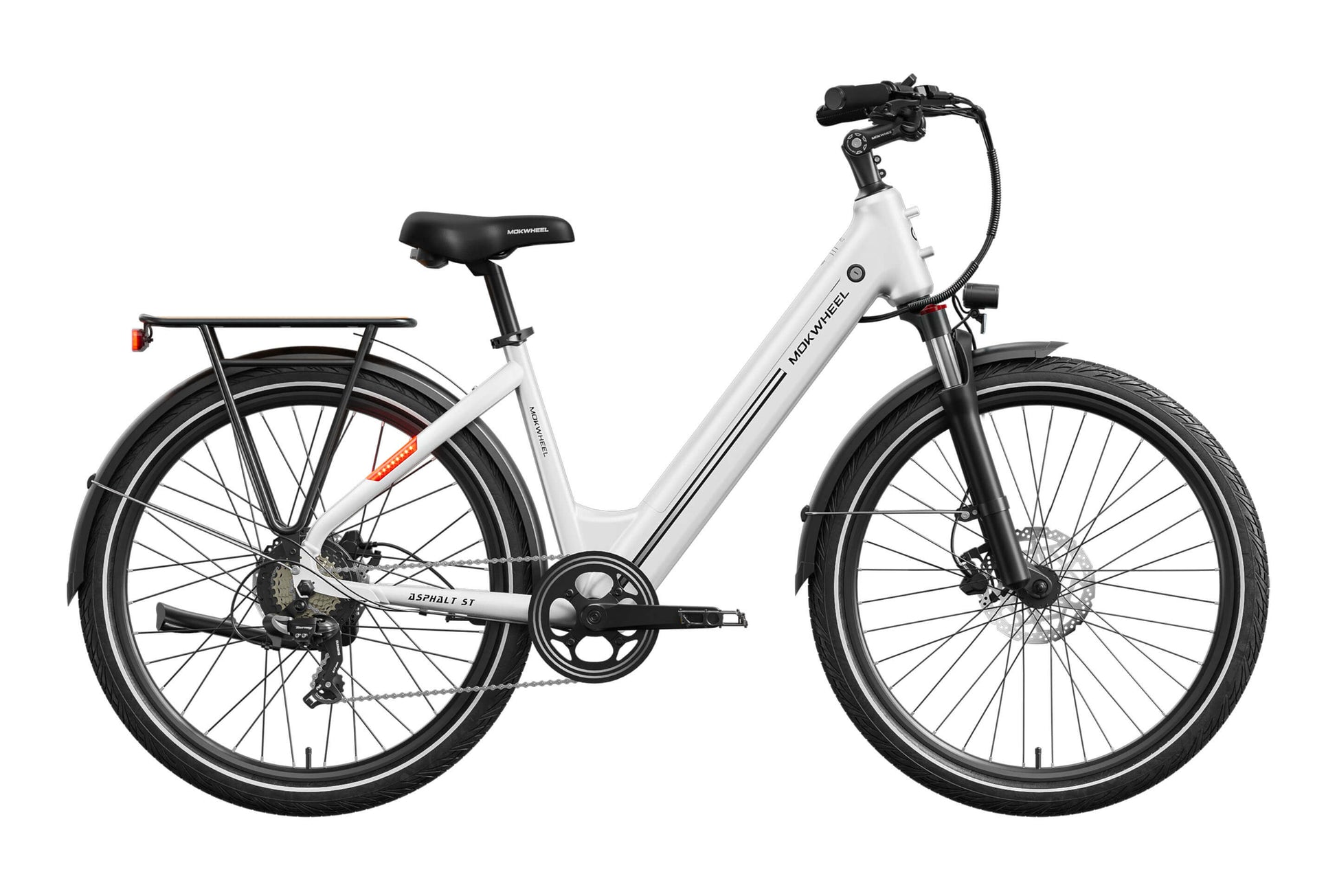

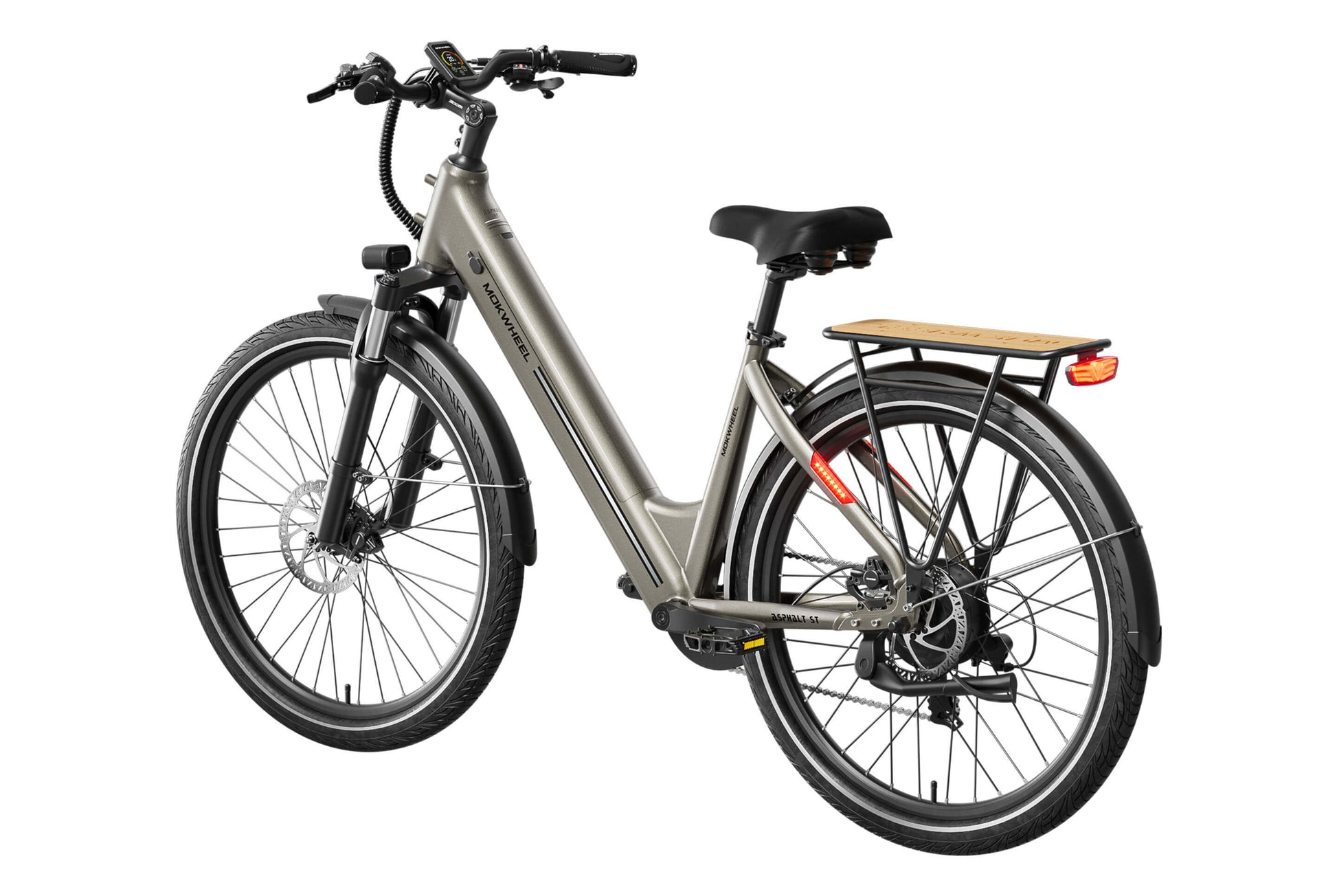

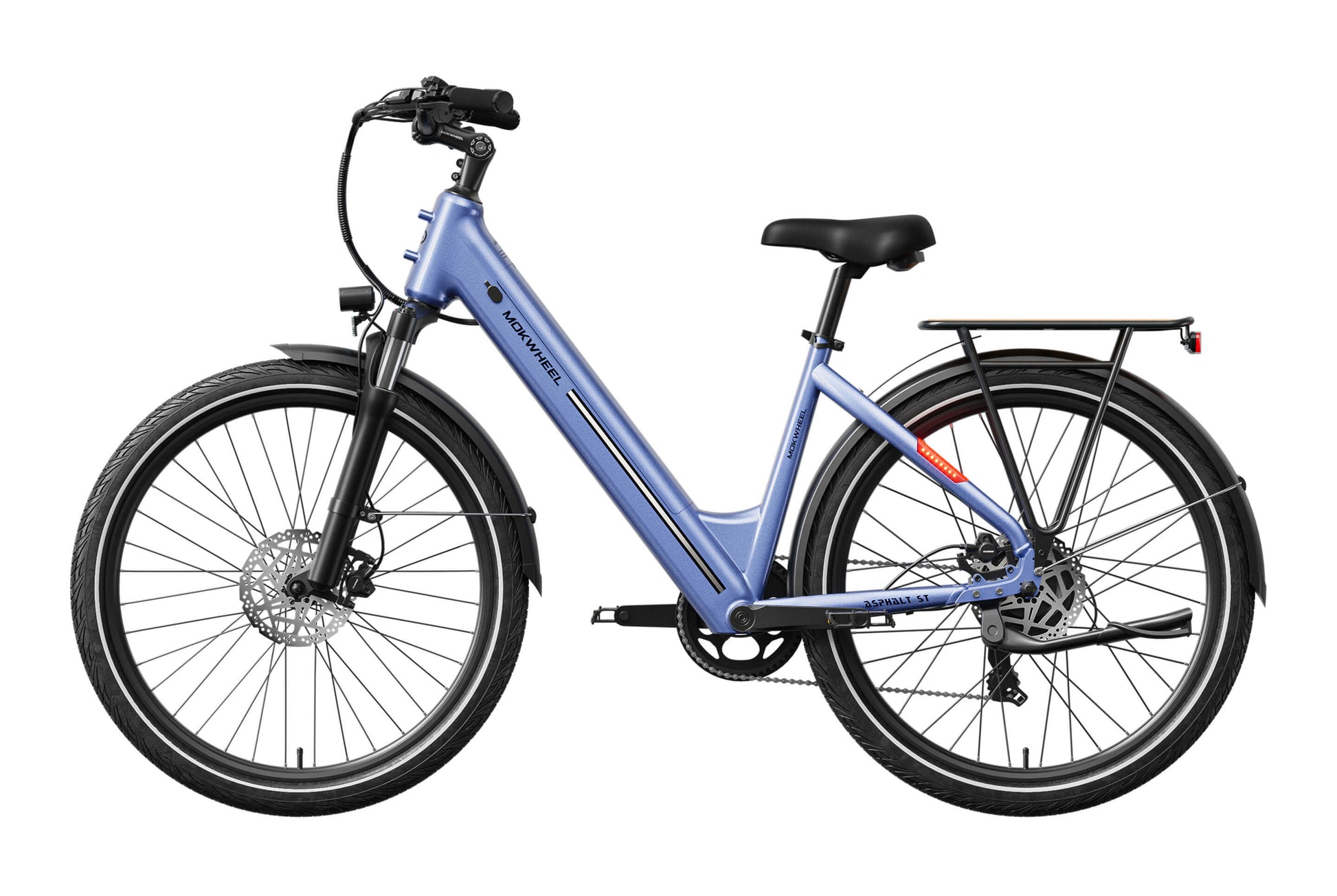

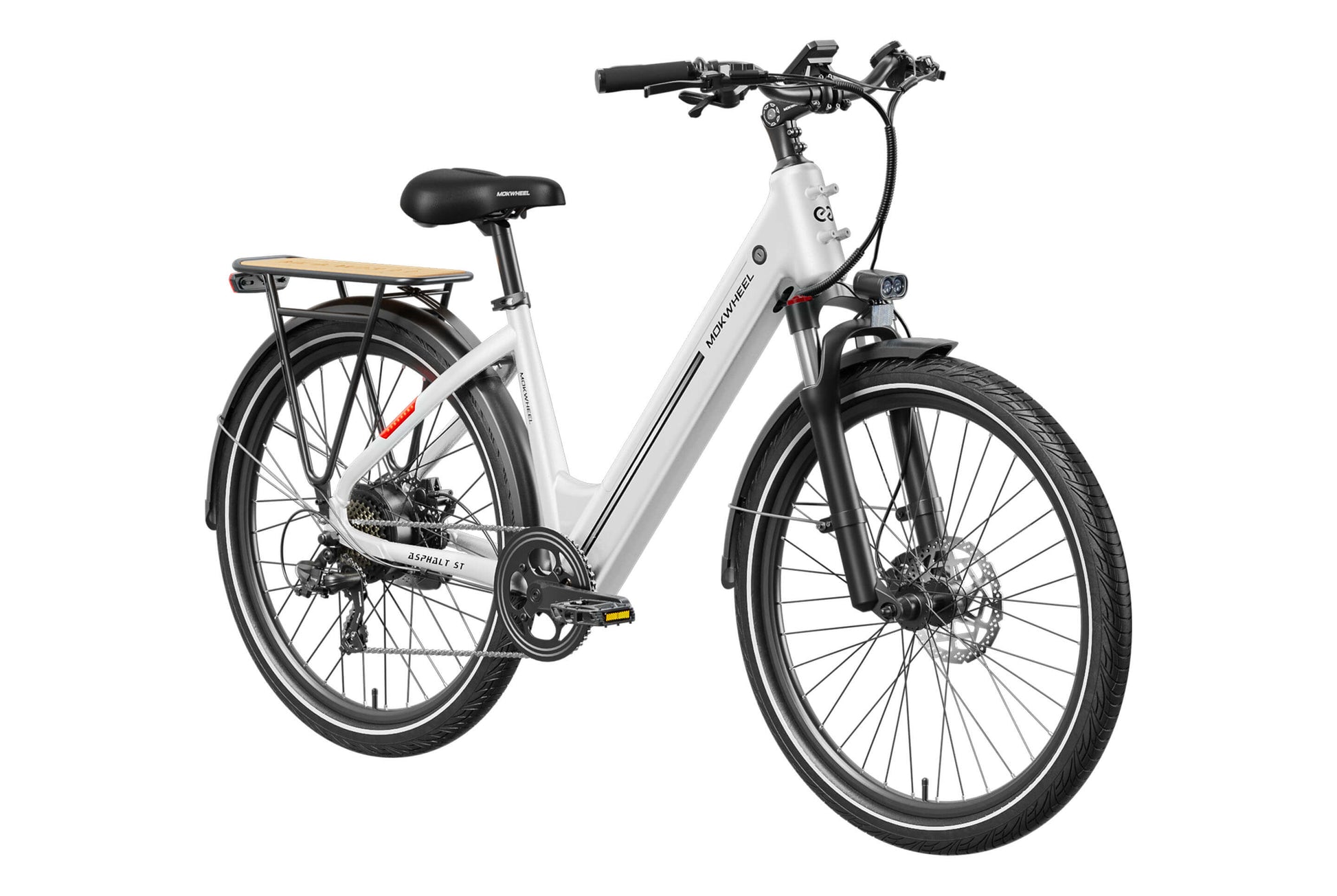

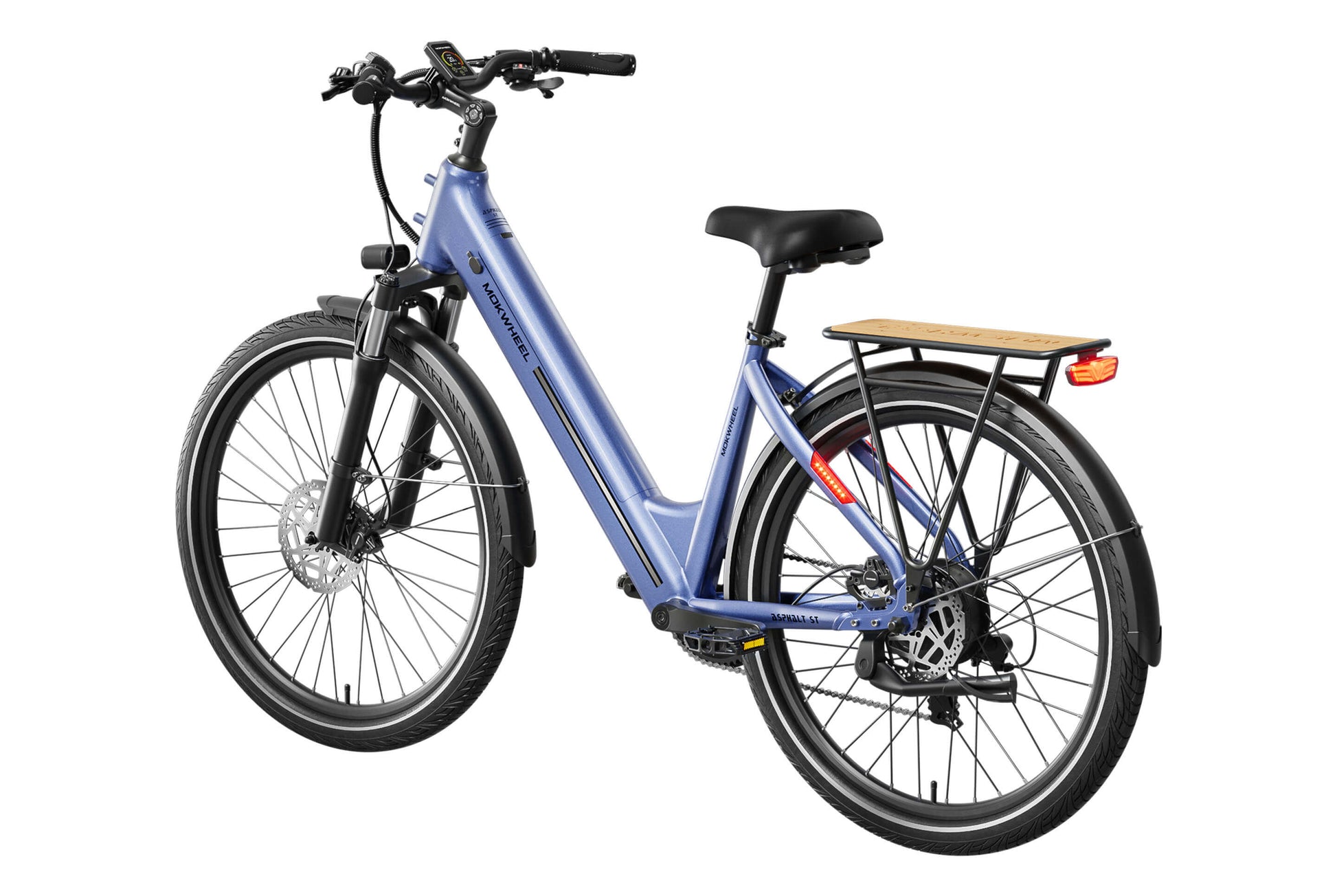

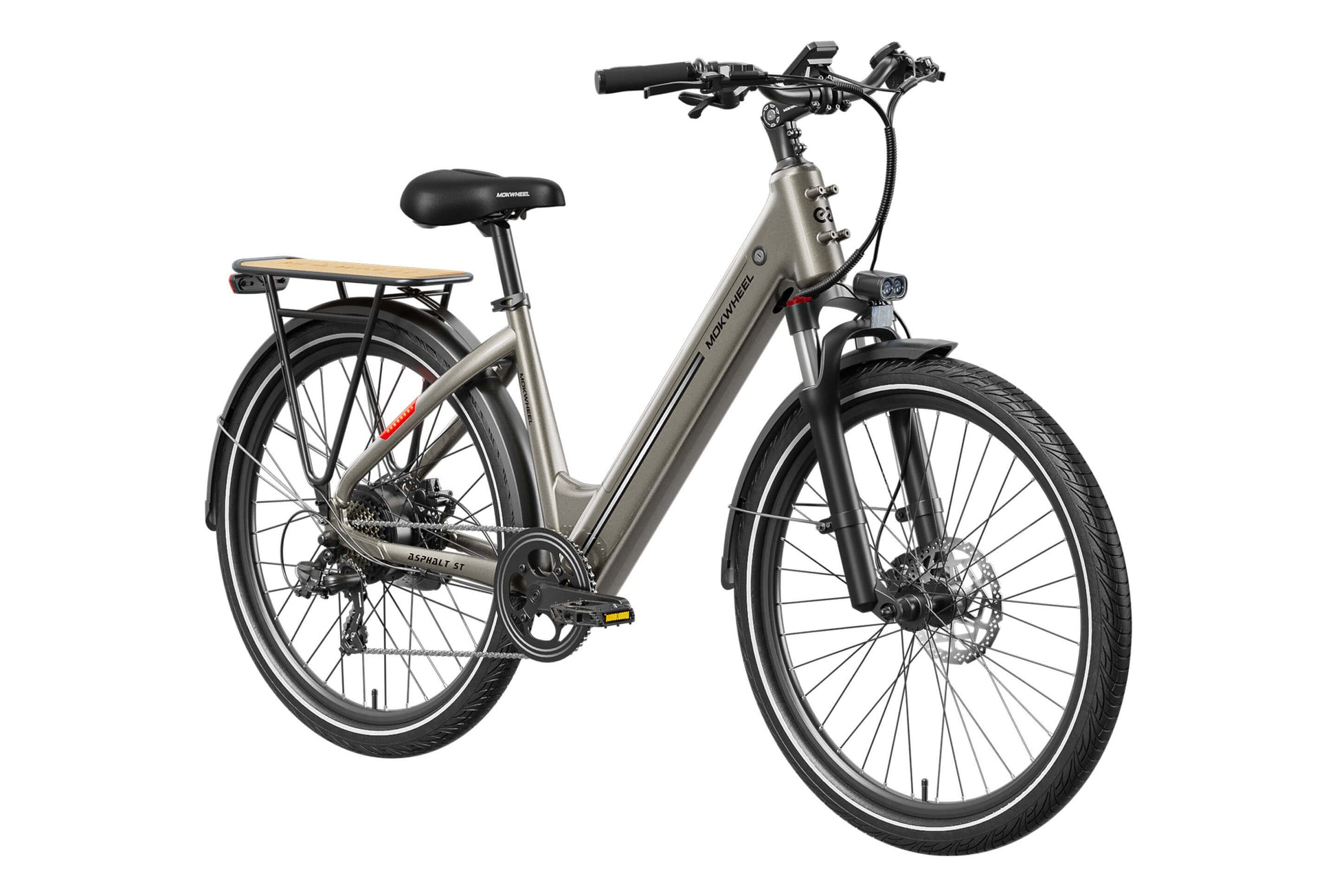

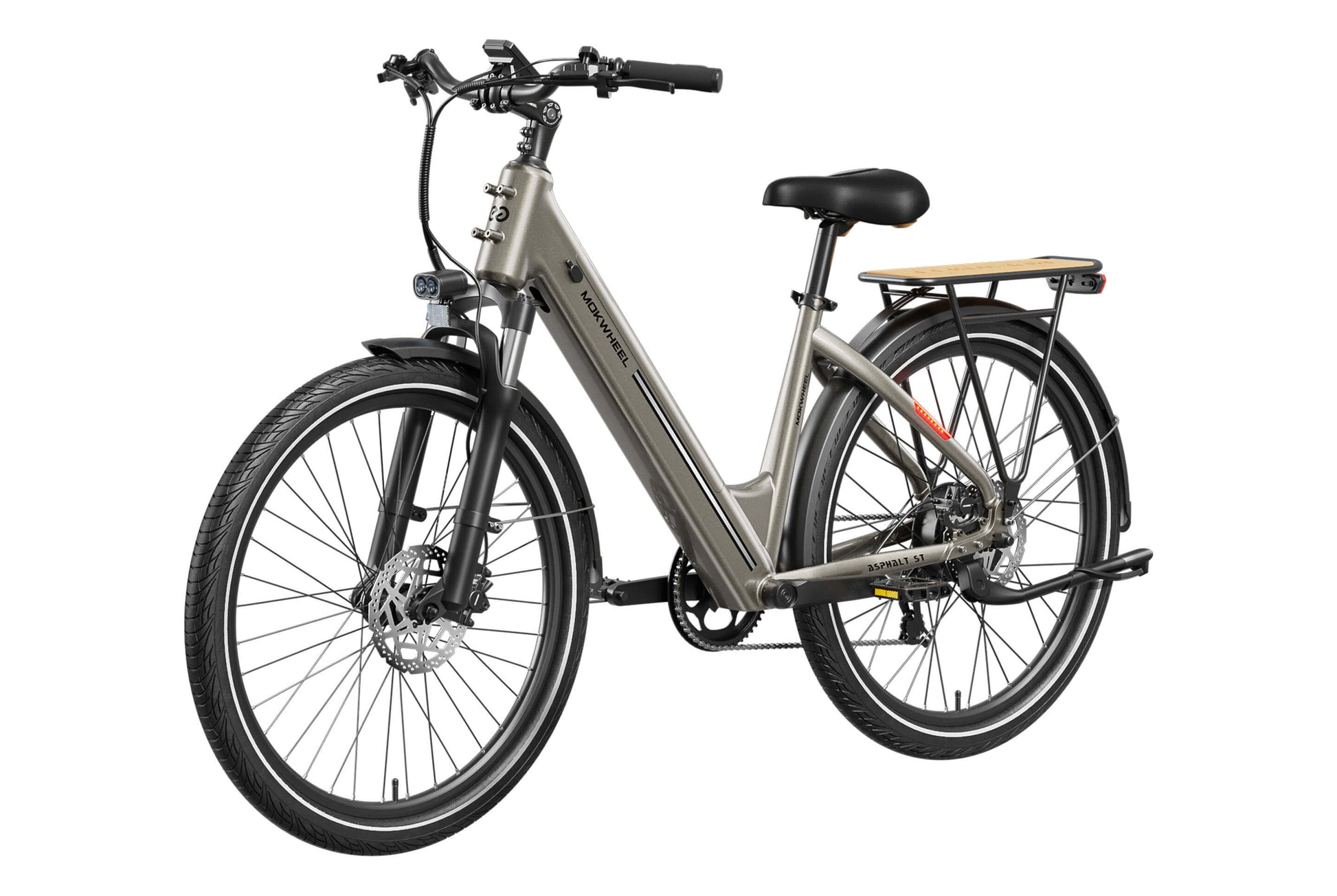

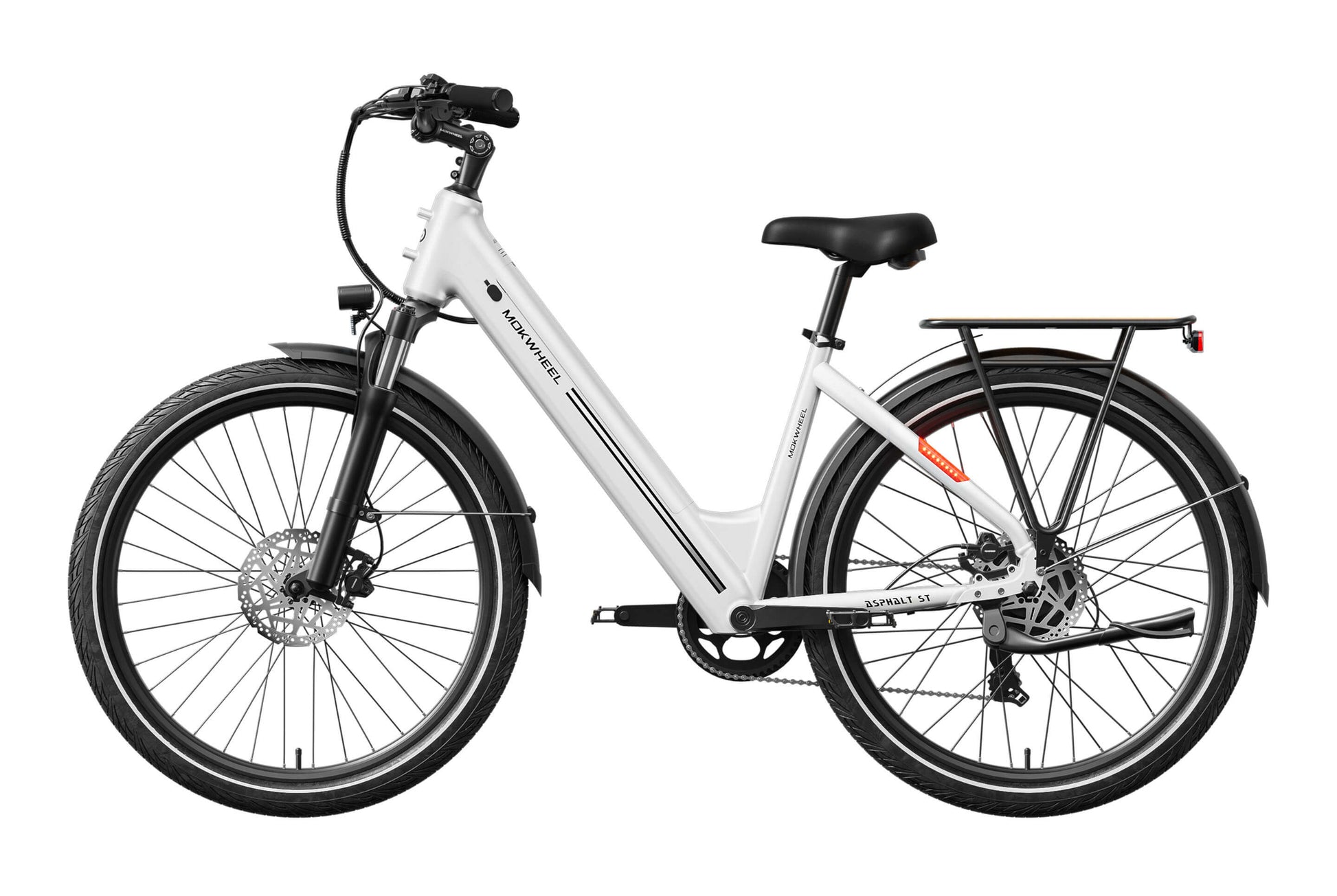

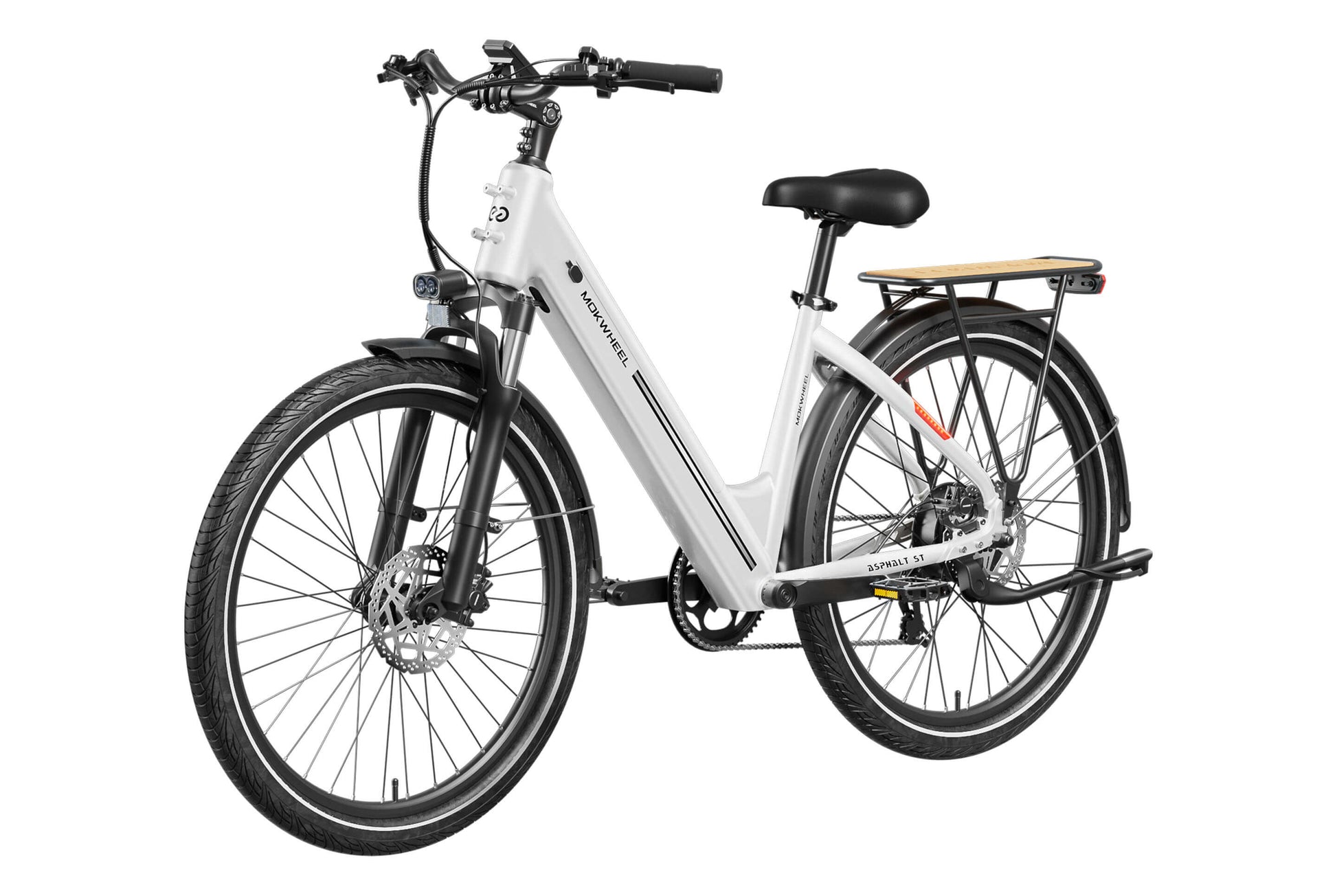

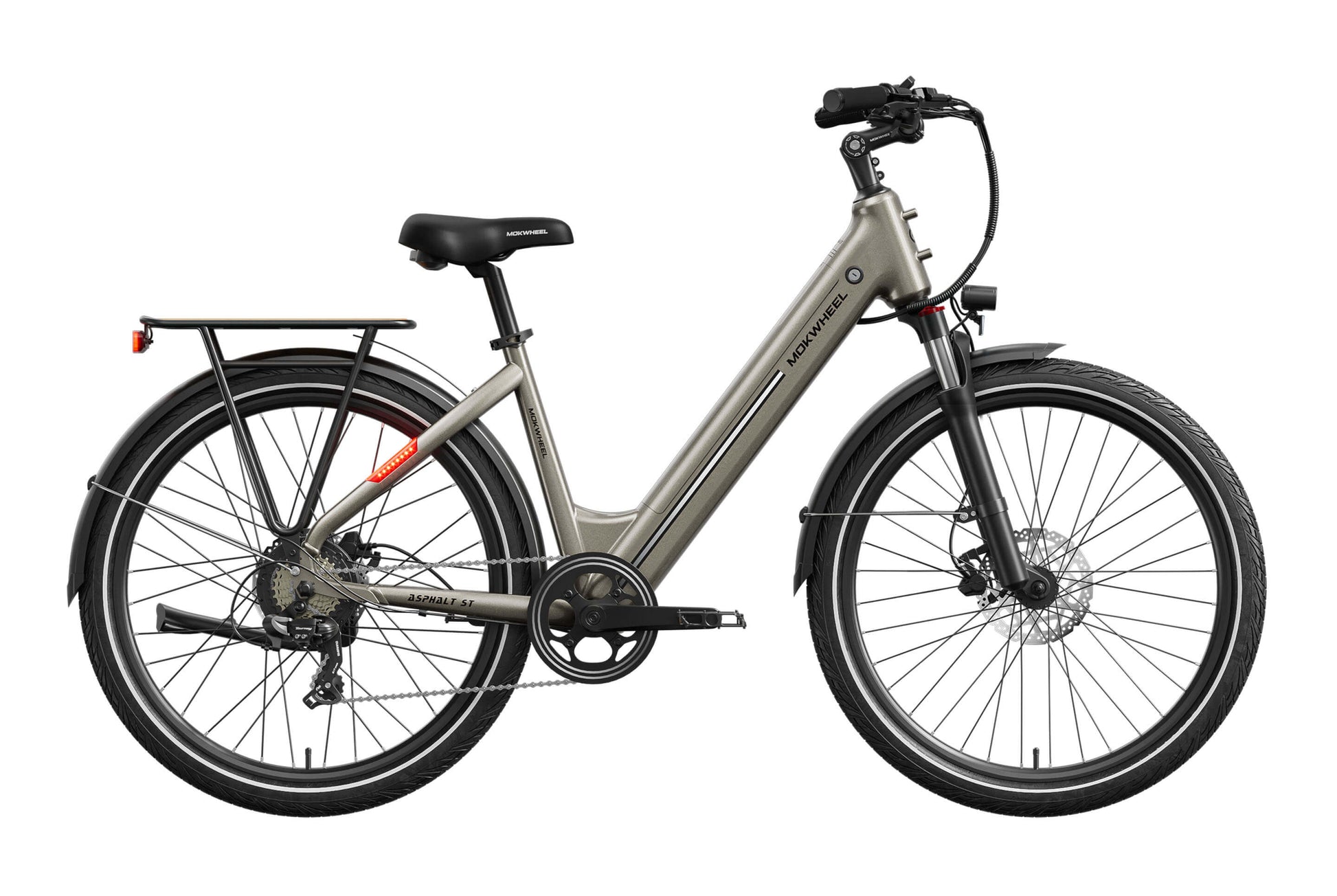

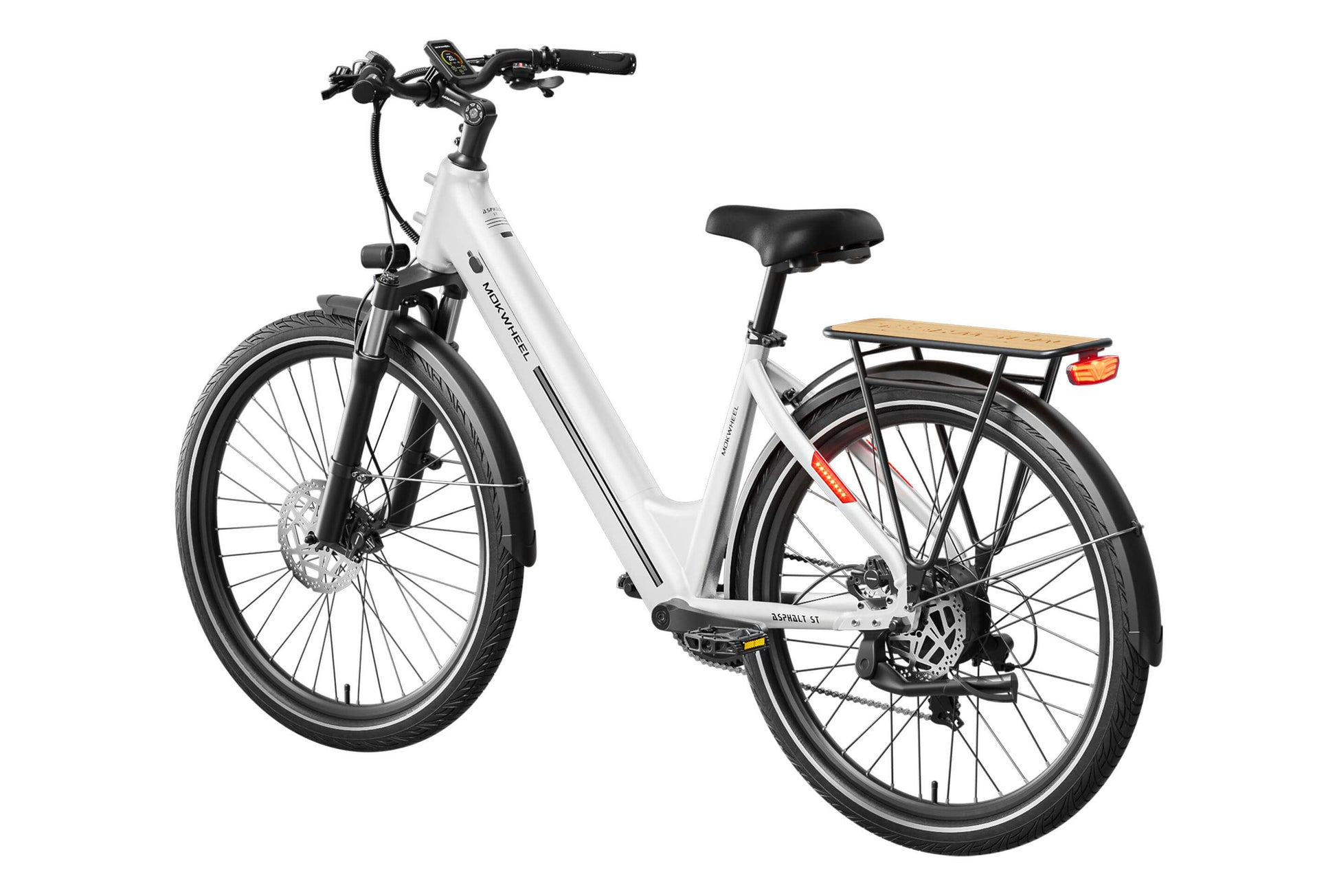

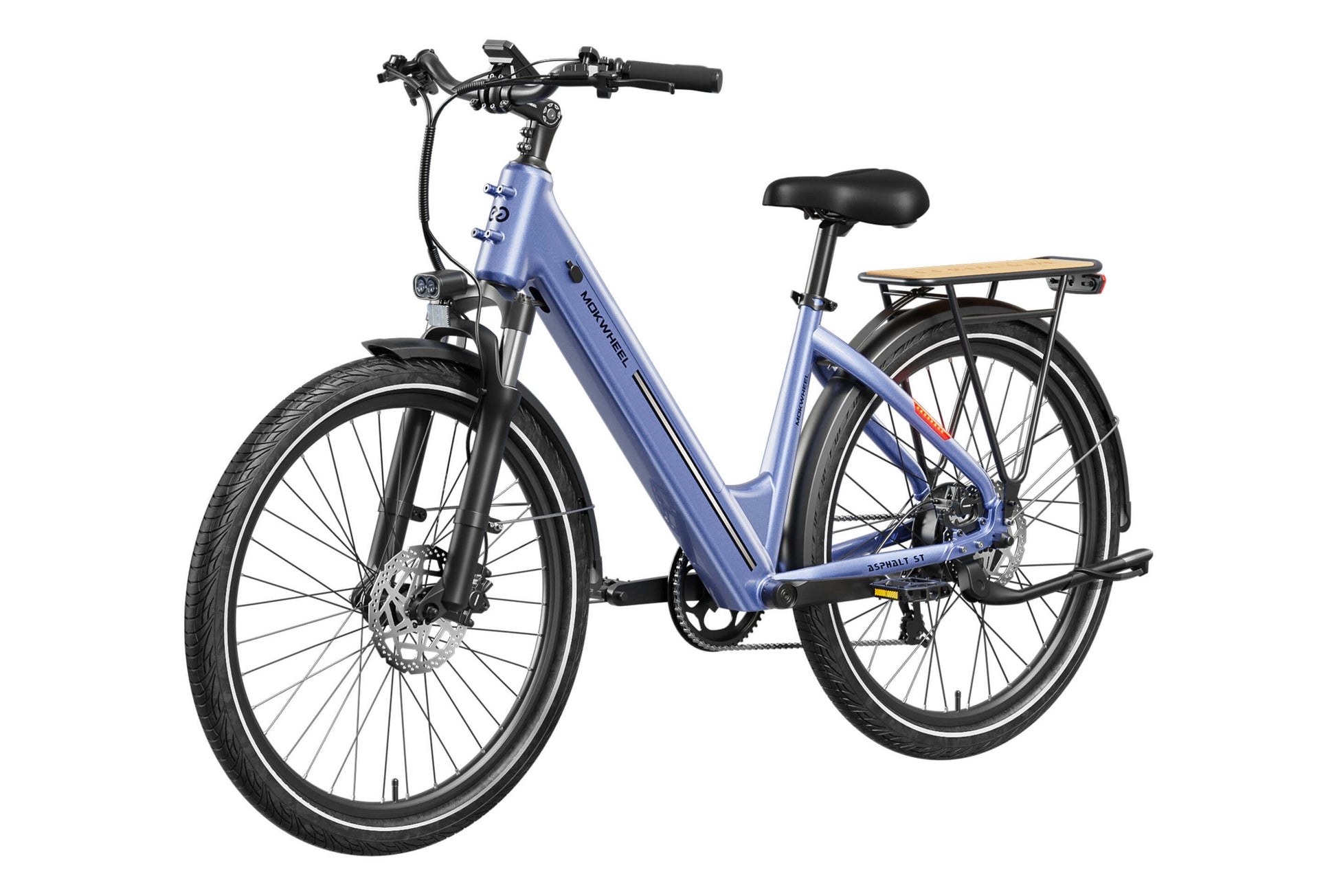

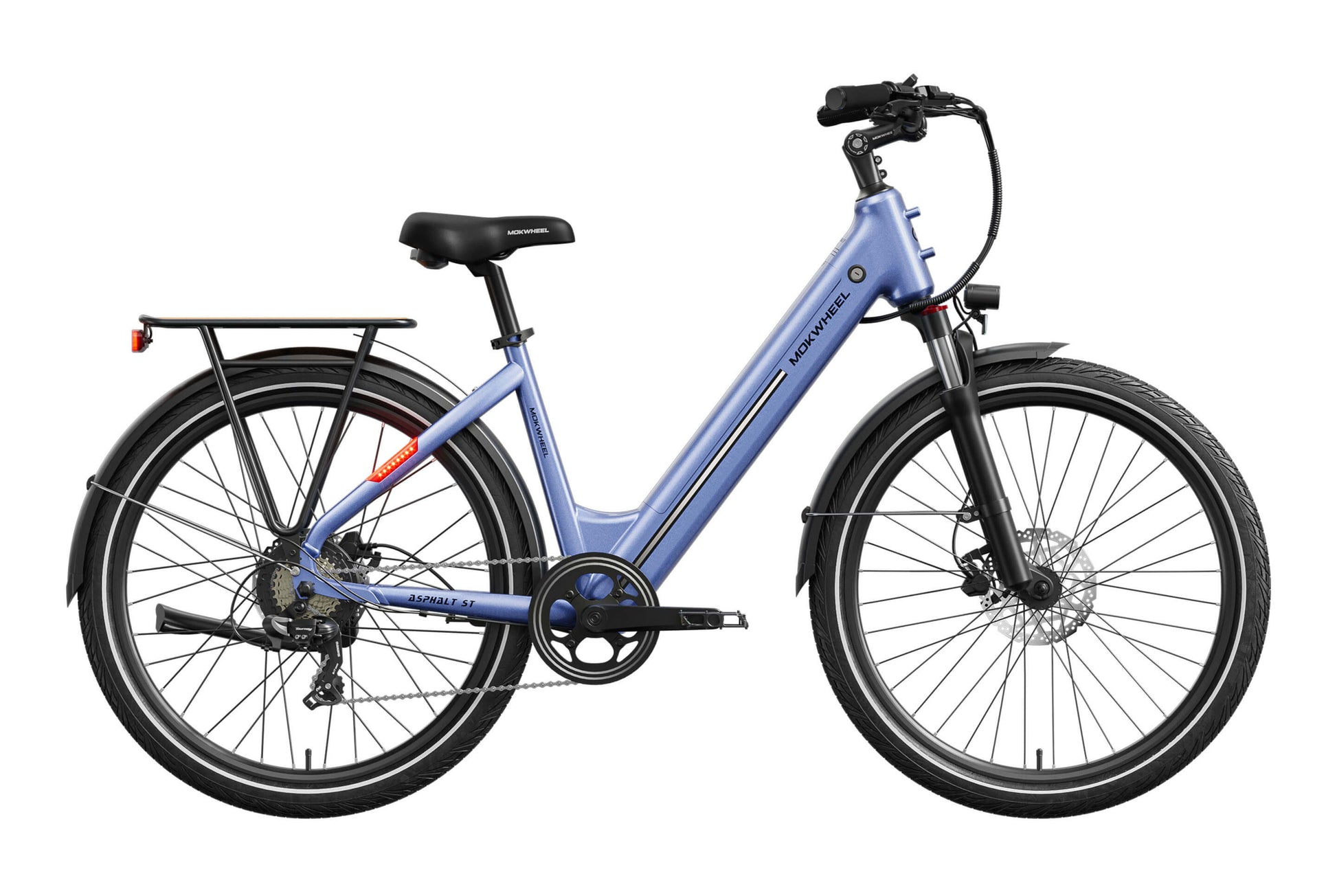

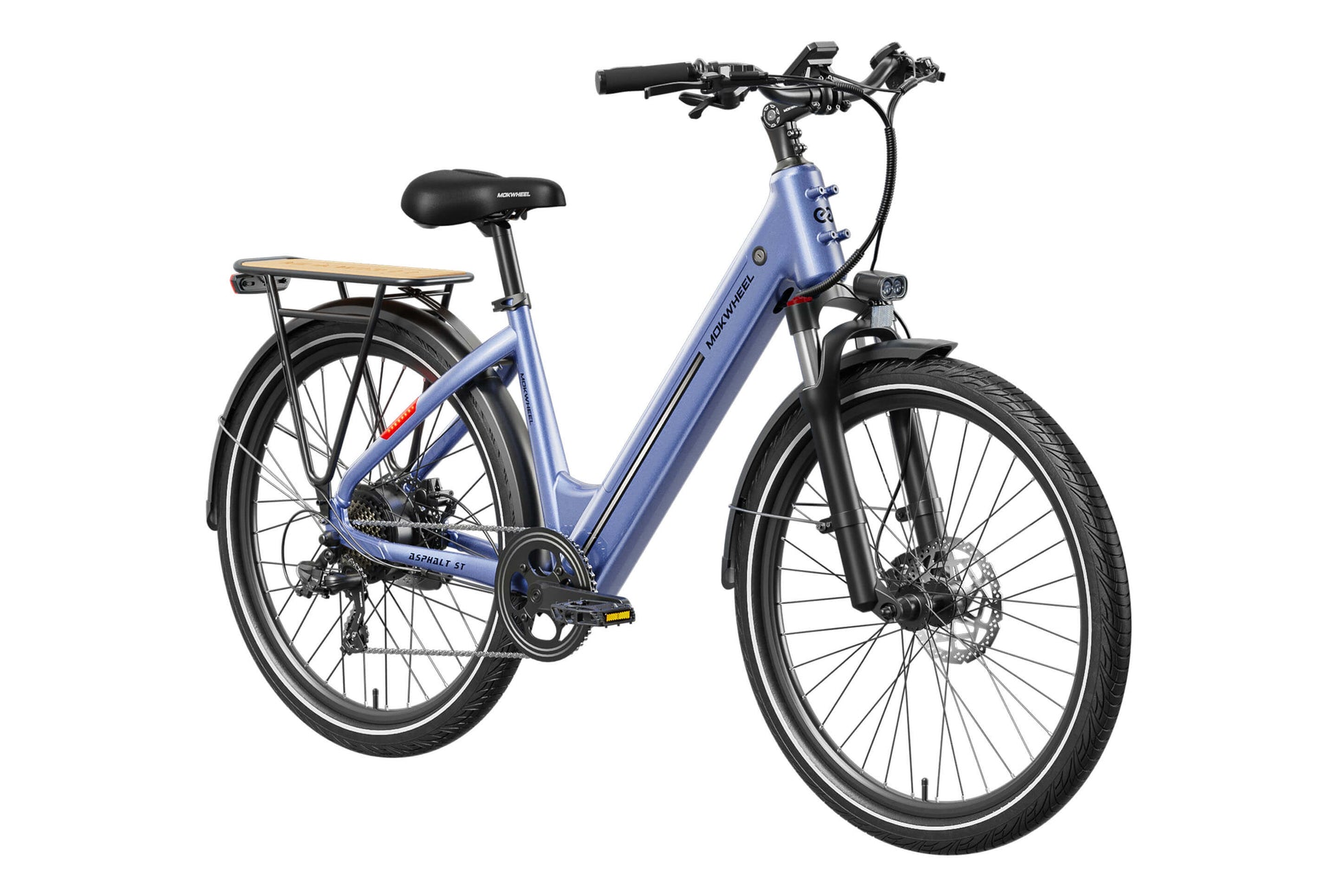

Mokwheel Asphalt ST Ebike

Asphalt ST Ebike

Size and Fit
The Asphalt ST is designed in one versatile size to fit most adults, offering a comfortable riding experience for heights between 5'2" and 6'2".

Standard Frame Dimensions

• Reach: 18 inches

• Top Tube Length: 26 inches

• Standover Height: 18 inches

• Wheelbase: 45 inches

• Minimum Saddle Height: 32 inches

• Maximum Saddle Height: 40 inches

• Total Length: 73 inches

• Head Tube Length: 7 inches

Technical Specifications
Built for smooth commuting, reliable performance, and long-range efficiency:

• Battery: 48V 14.7Ah, UL certified

• Charger: 48V 3A

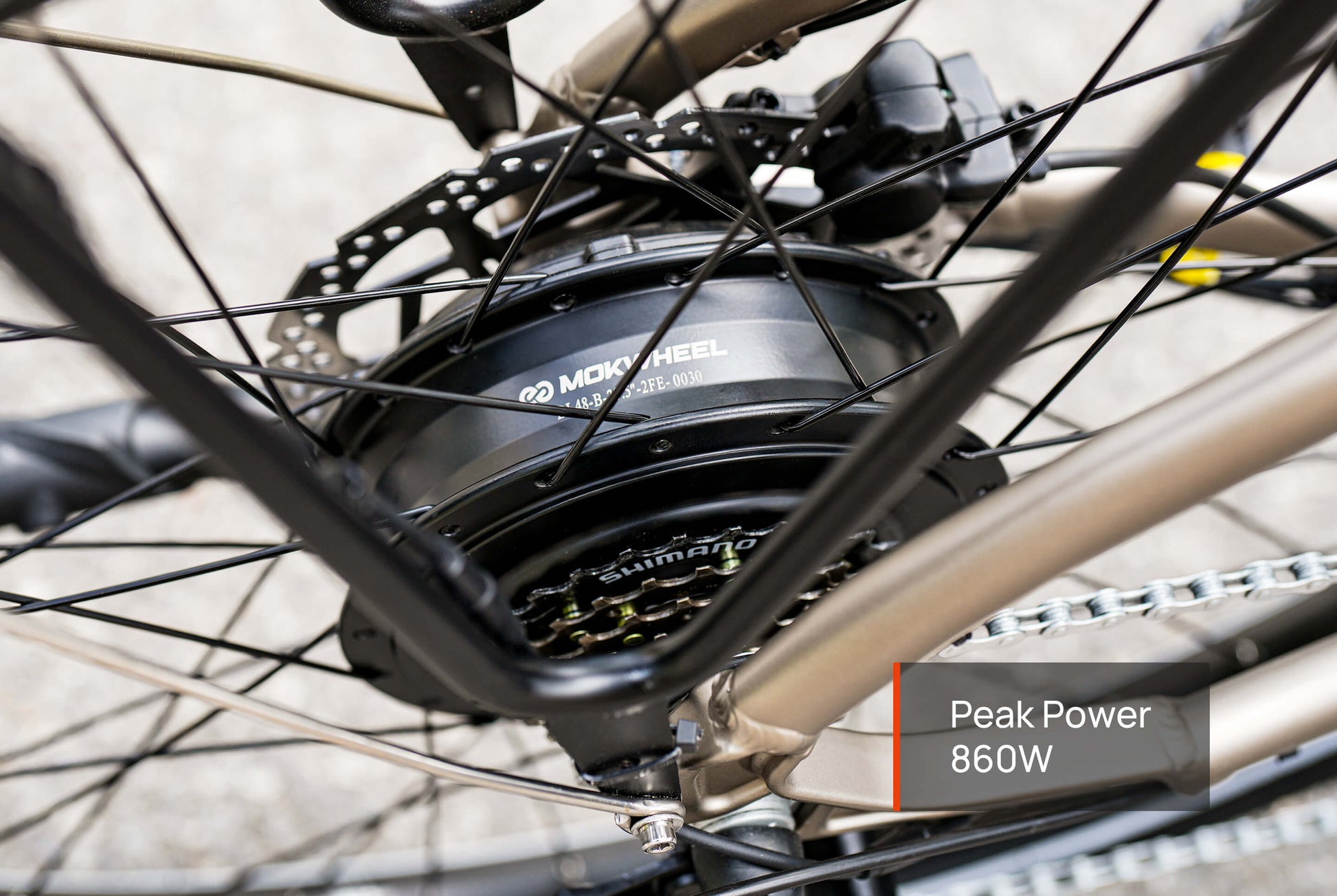

• Motor: Continuous 500W, Peak 860W, Torque 70Nm+

• Speed: 20 mph with throttle, 28 mph with pedal assist

• Weight: 63 lbs

• Range: 50–60 miles

• Payload Capacity: 300 lbs

Performance and Handling
Premium components deliver controlled, comfortable, and stable riding:

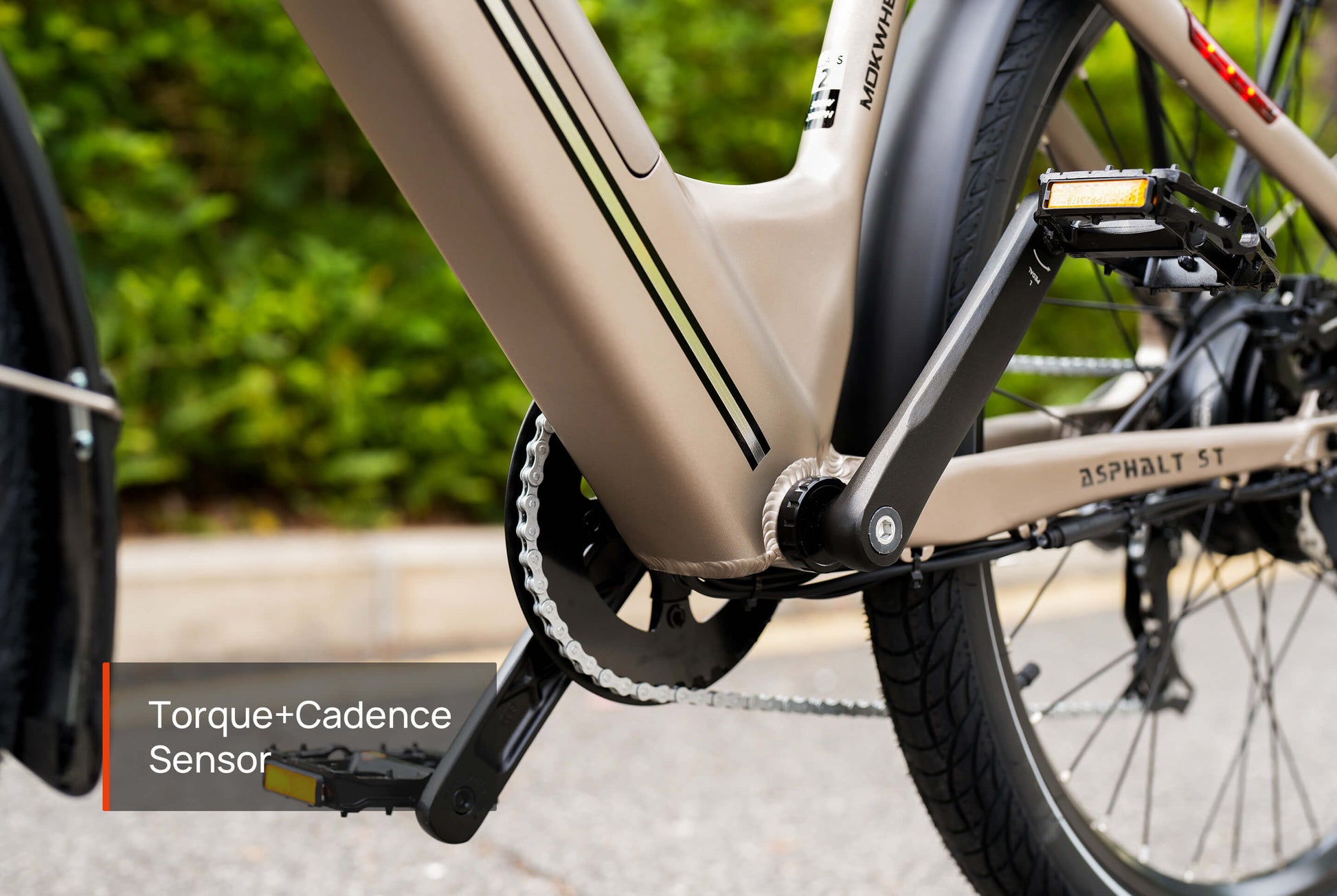

• Sensor: Torque and cadence sensor

• Tires: 27.5" x 2.4"

• Display: Integrated LED display

• Brakes: TEKTRO HD-E350 hydraulic disc brakes

• Gearing: Shimano 7-speed

• Derailleur: Shimano 7-speed rear

• Brake Lever: Aluminum alloy

• Chain: KMC stainless steel

• Crankset: 44T cassette, 170mm crank

• Front Fork: 100mm adjustable suspension

• Frame: 6061 aluminum alloy

• Throttle: Thumb

• Handlebar: 680mm aluminum alloy, 31.8mm

• Kickstand: Aluminum alloy

• Rims: Aluminum alloy

• Saddle: Customized comfort leather seat

• Spokes: Heavy-duty carbon steel, 13G × 263 mm front / 223 mm rear

Smooth. Efficient. Confident.
The Asphalt ST is designed for riders who value everyday reliability, ergonomic comfort, and strong performance on urban roads and commuting routes.
