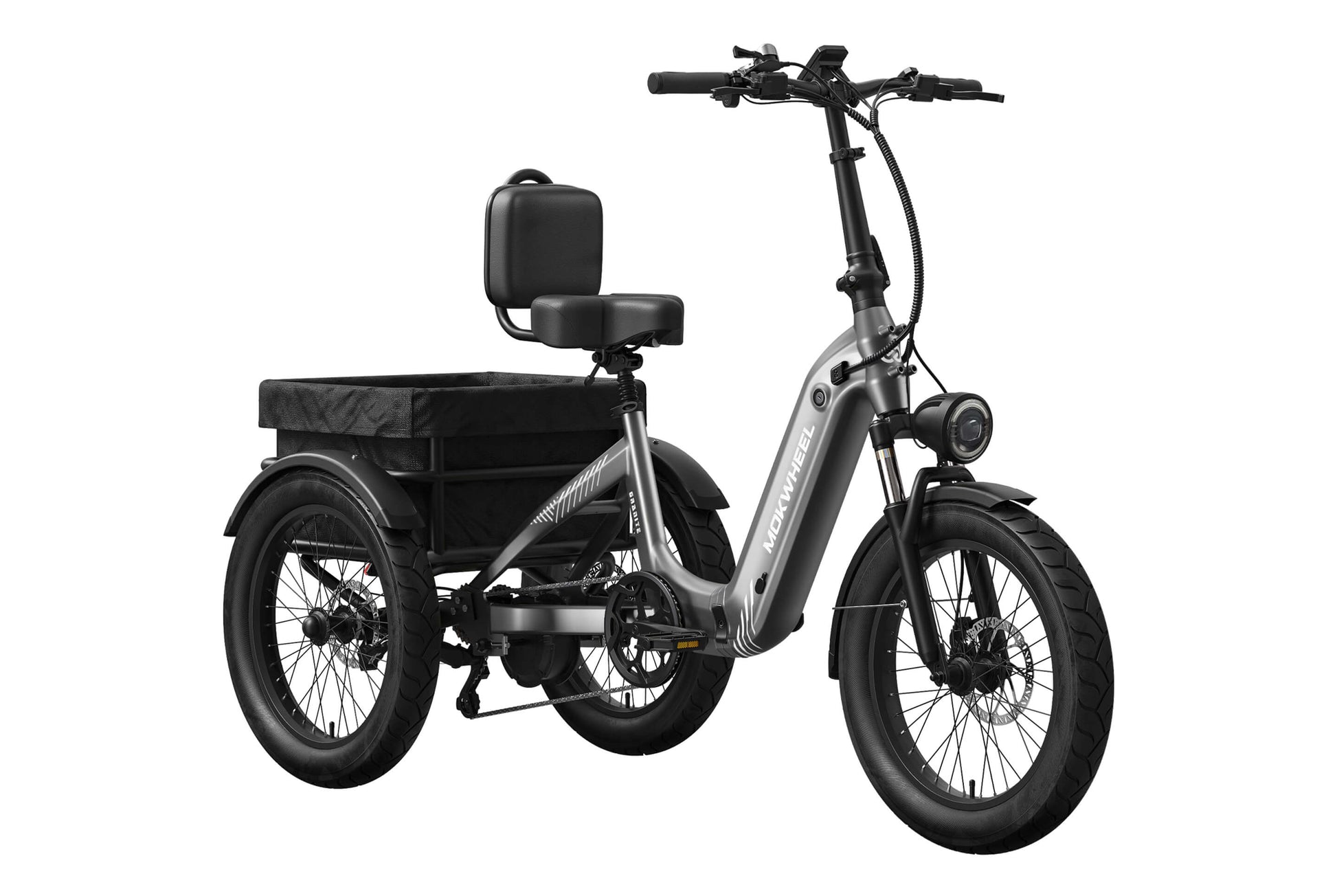

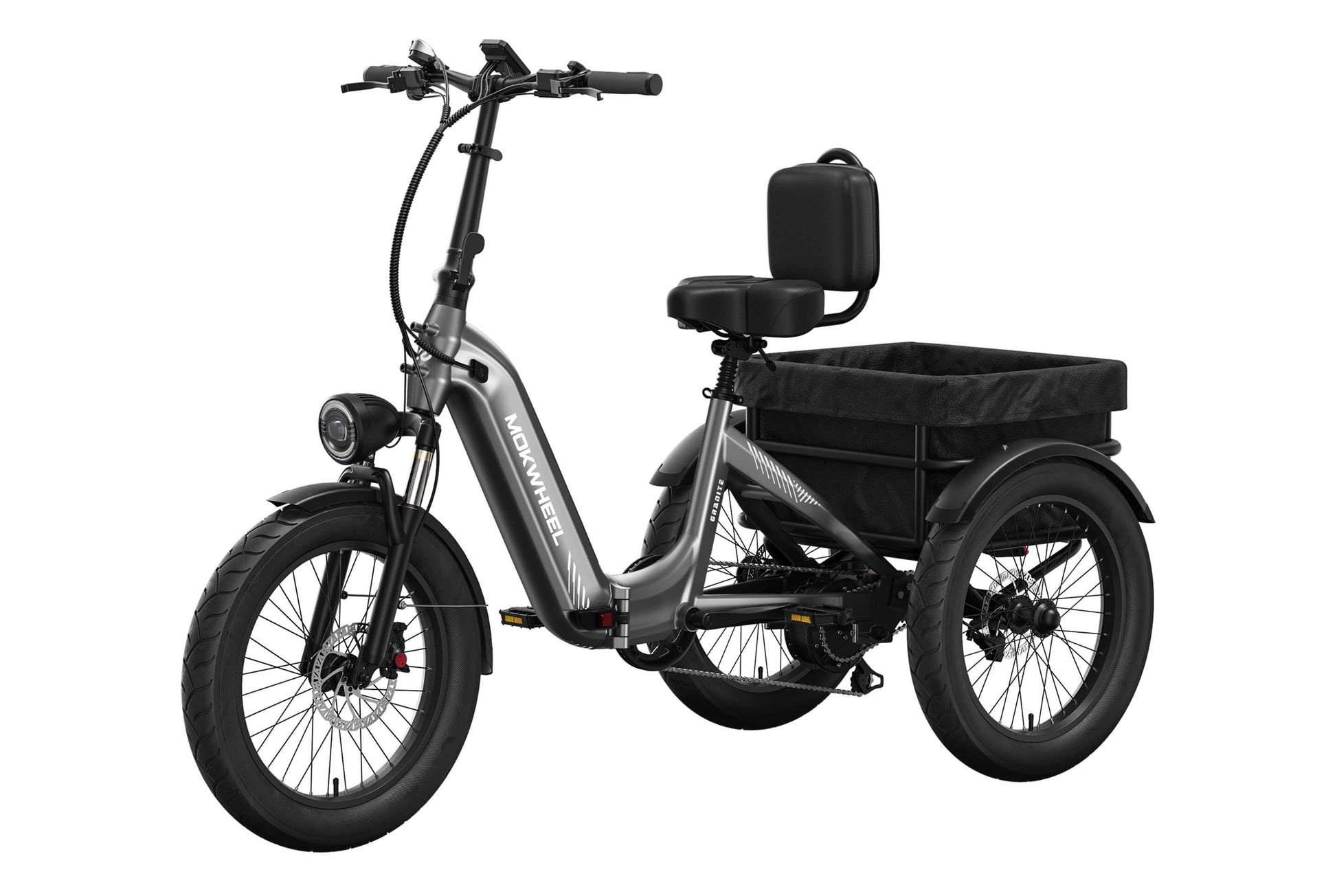

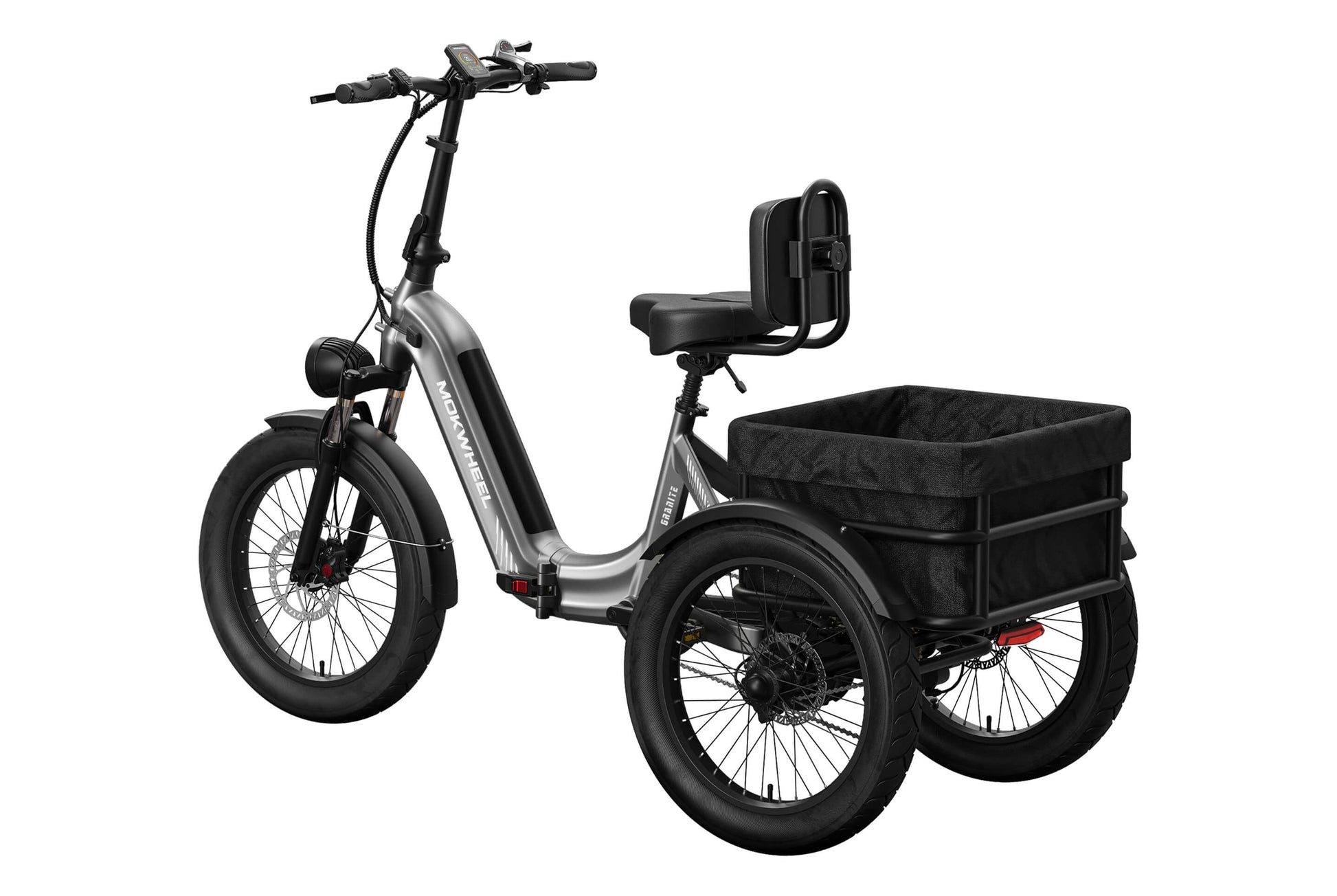

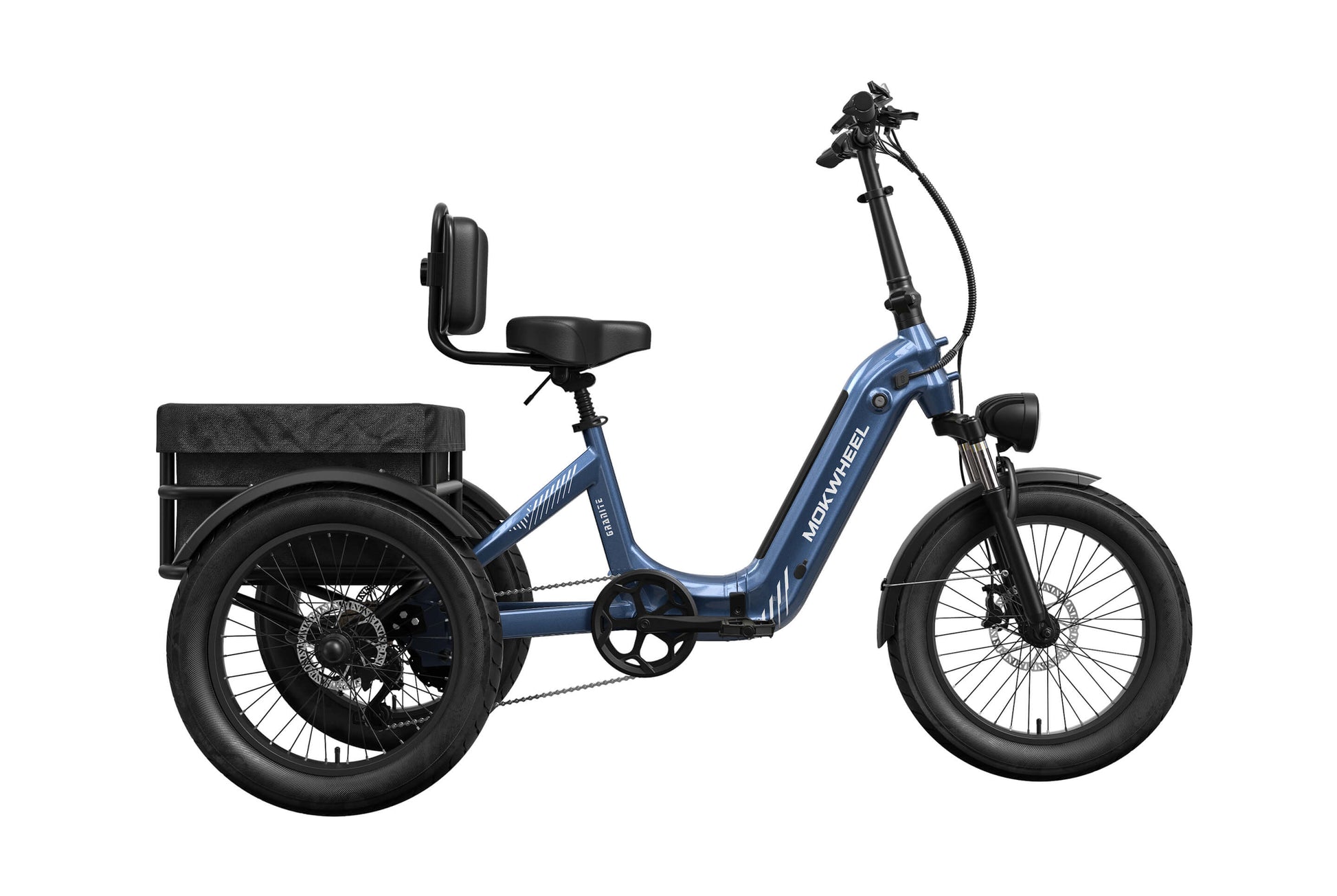

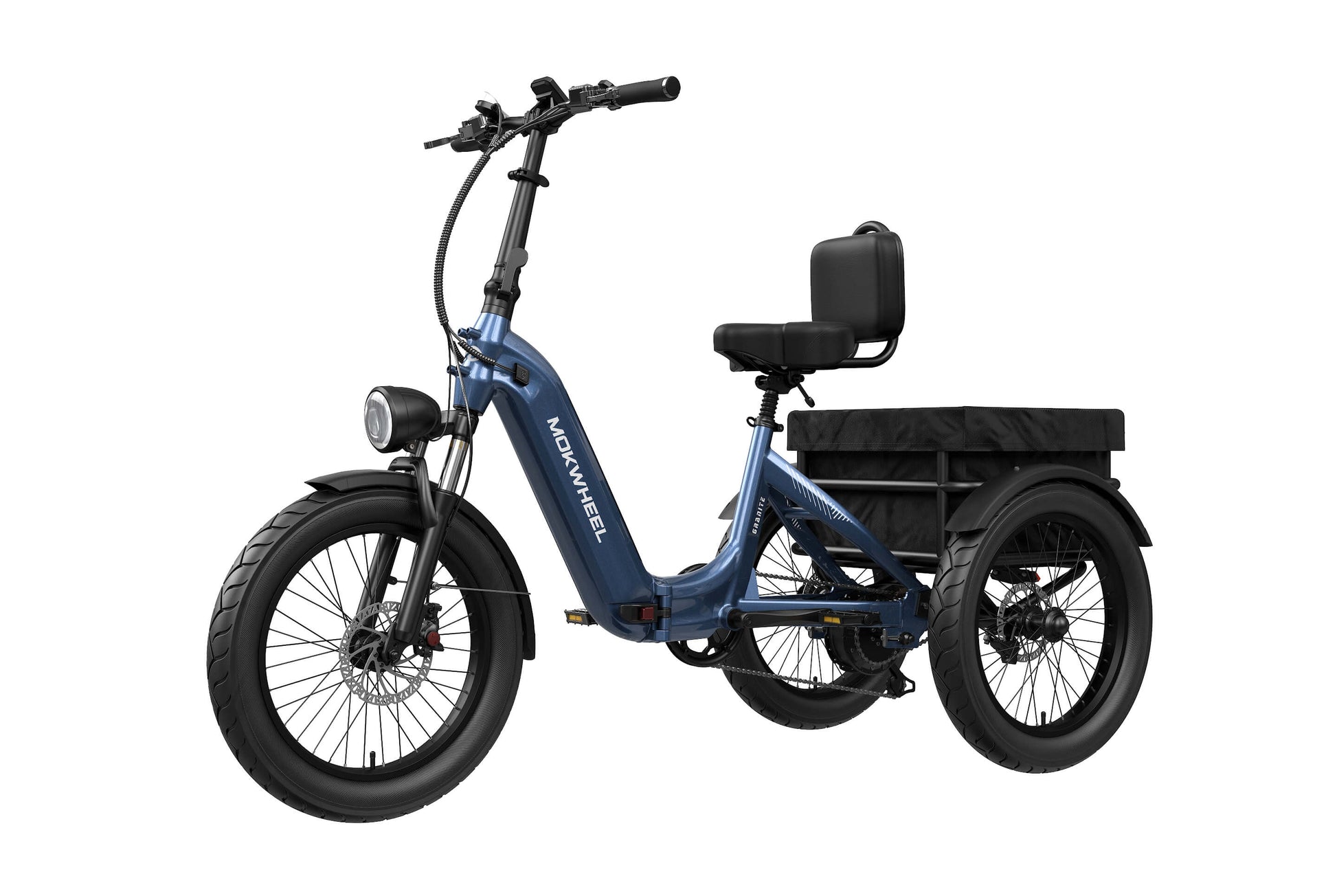

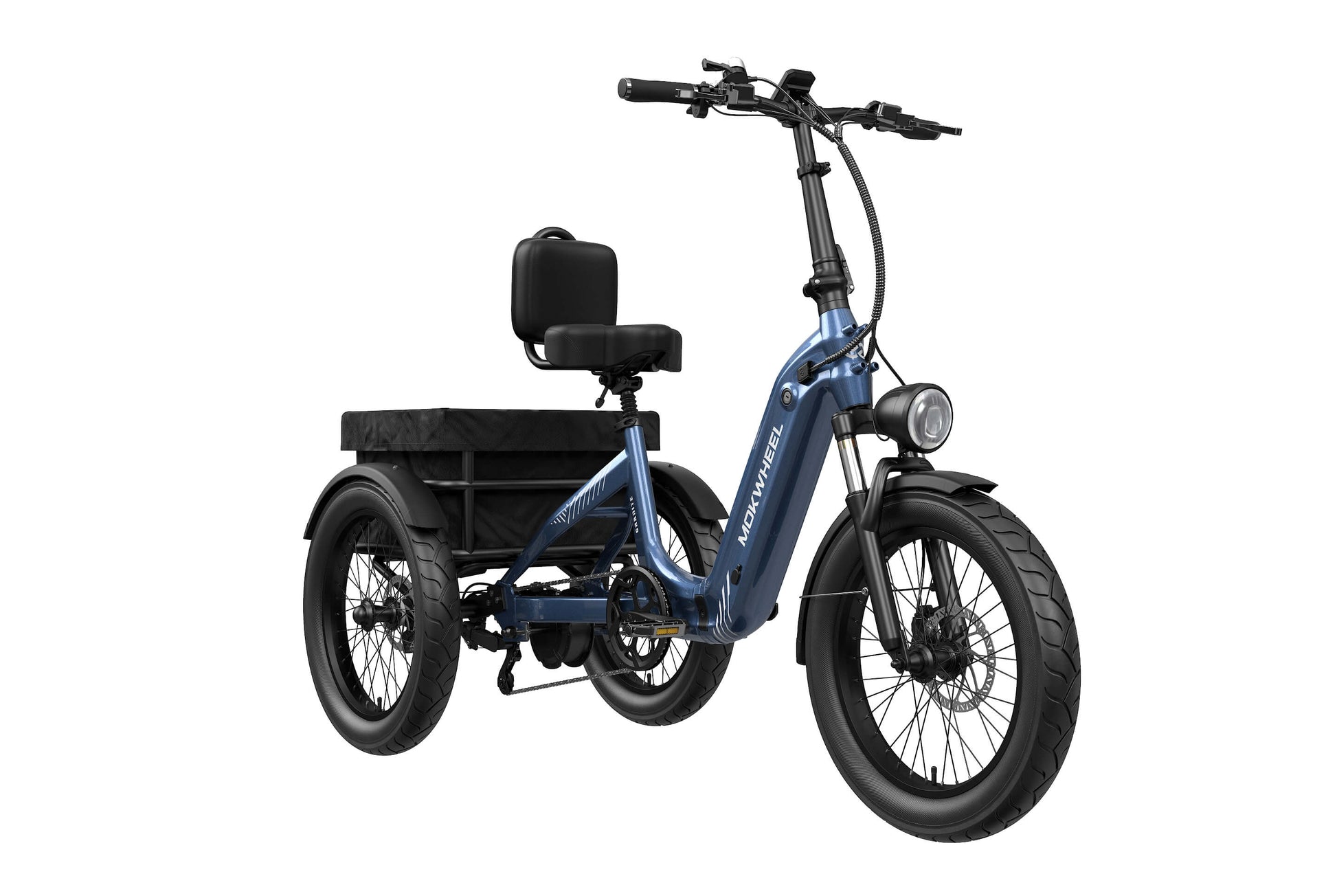

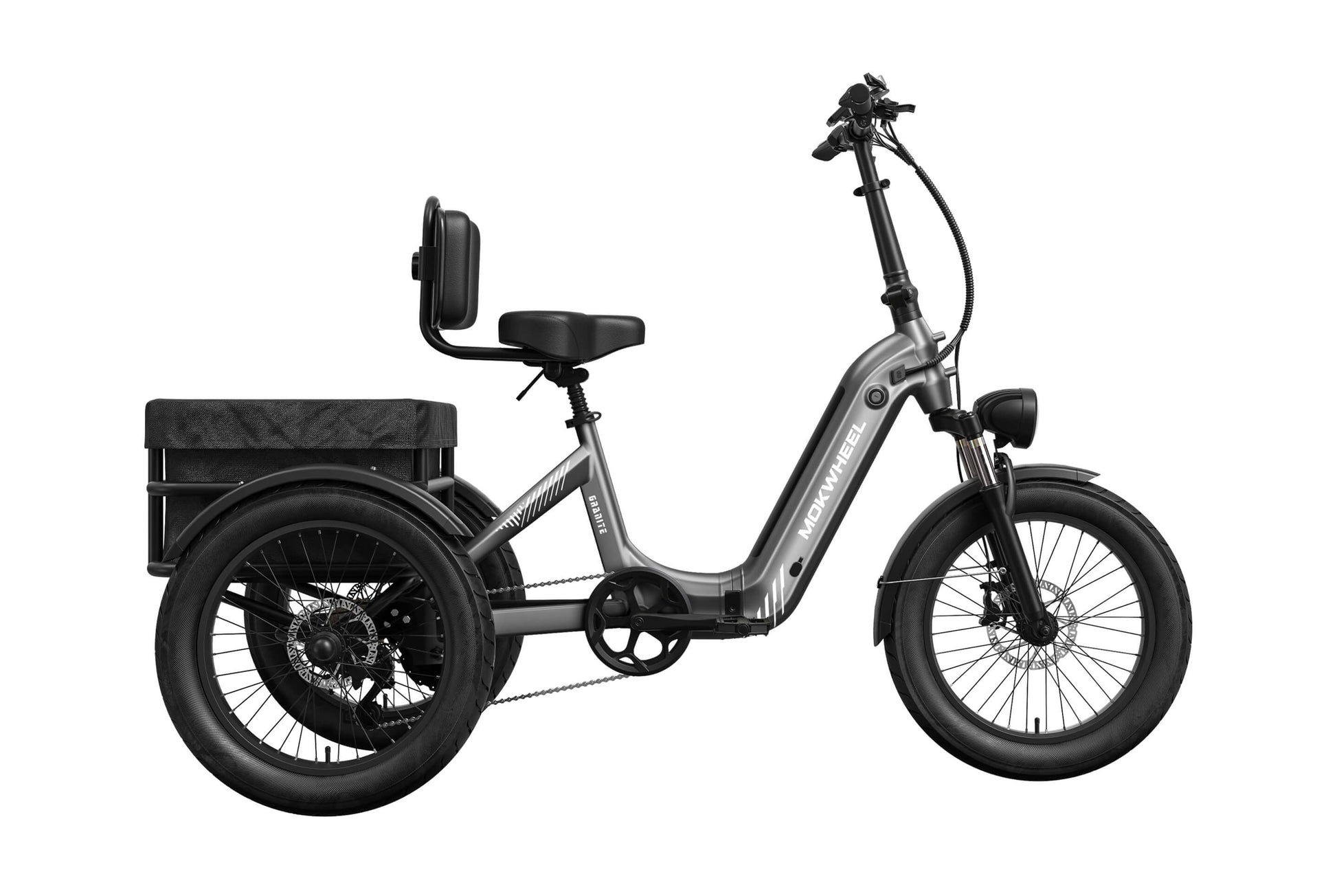

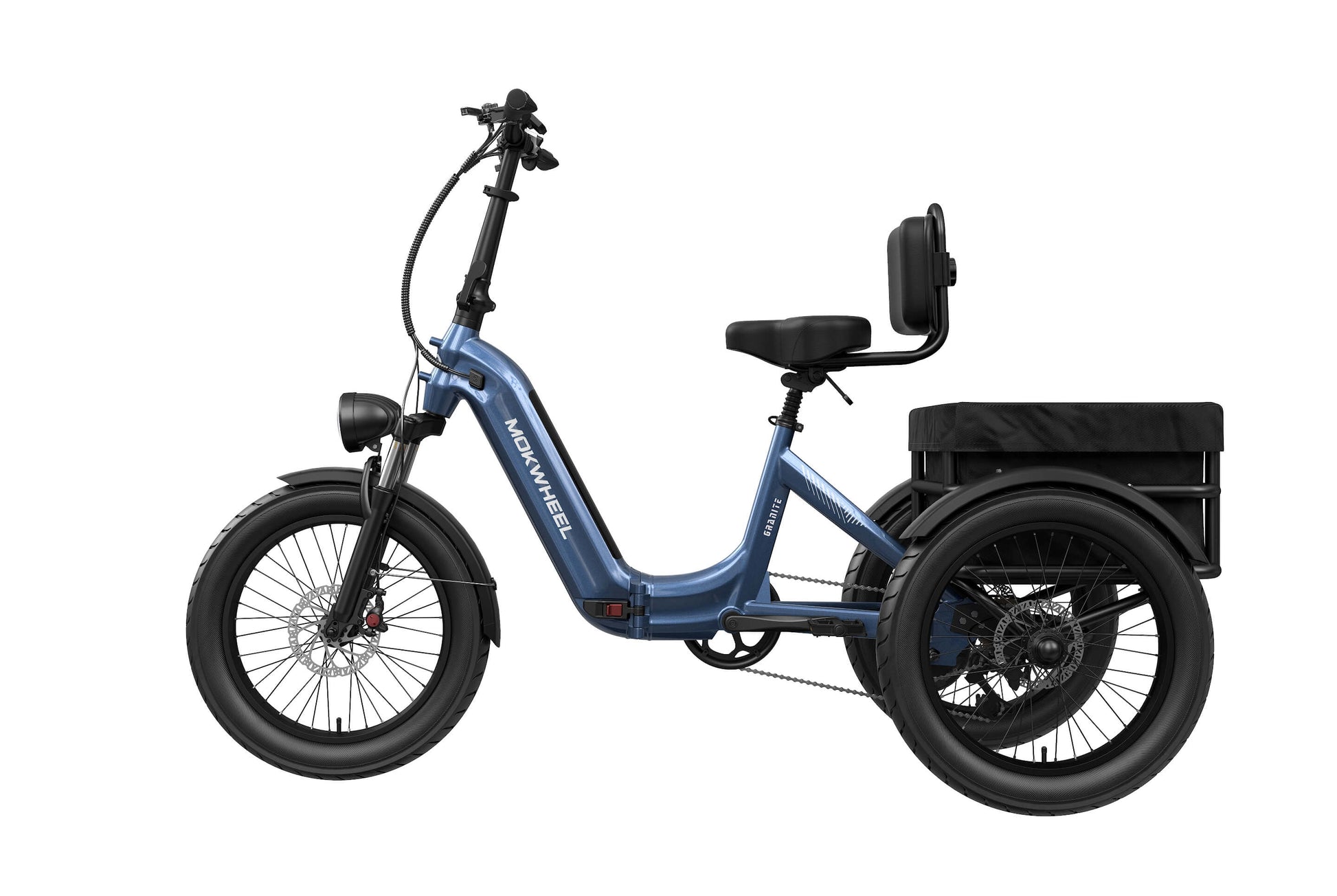

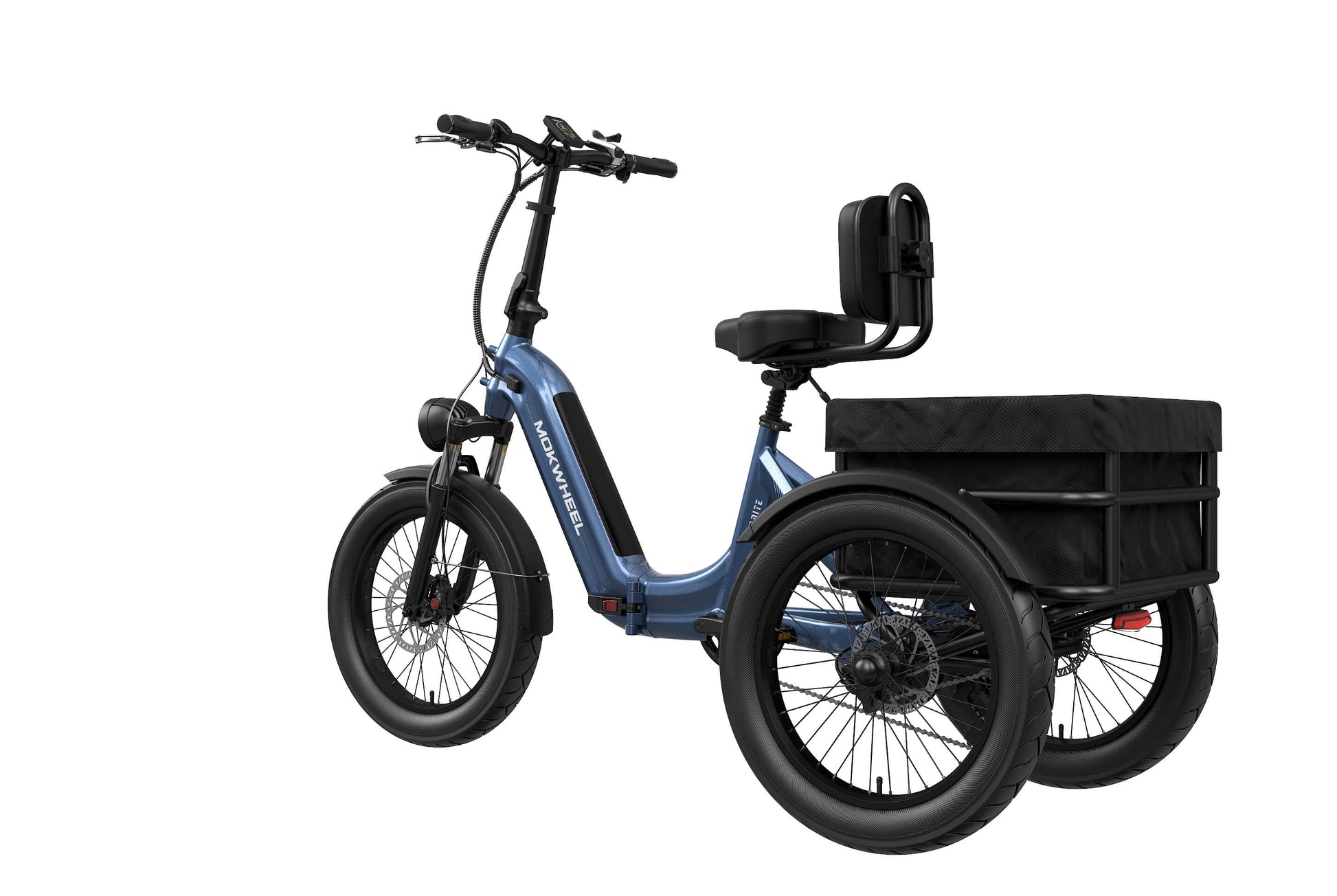

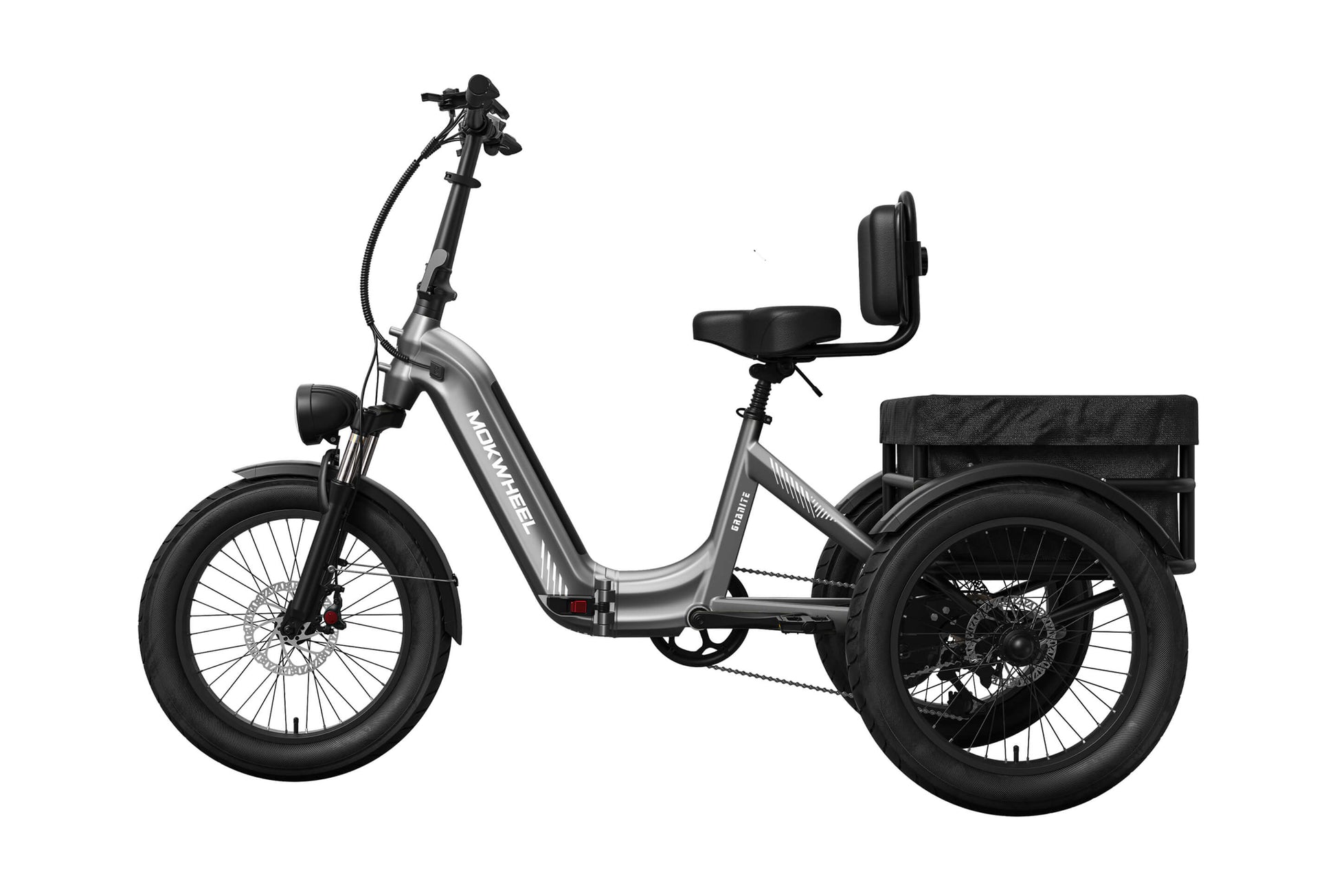

Mokwheel Granite E-Trike

Granite Ebike

Size & Fit
The Granite is designed in one universal size to comfortably accommodate riders from 5'0" to 6'2".

• Reach: 20 inches

• Top Tube Length: 26 inches

• Standover Height: 13 inches

• Wheelbase: 49 inches

• Minimum Saddle Height: 32 inches

• Maximum Saddle Height: 38 inches

• Total Length: 72 inches

• Head Tube Length: 7 inches

• Folded Dimensions: 43" (L) × 32" (W) × 30" (H)

Technical Specifications
Built for utility, strength, and everyday reliability:

• Battery: 48V 15Ah, UL certified

• Charger: 48V 2A

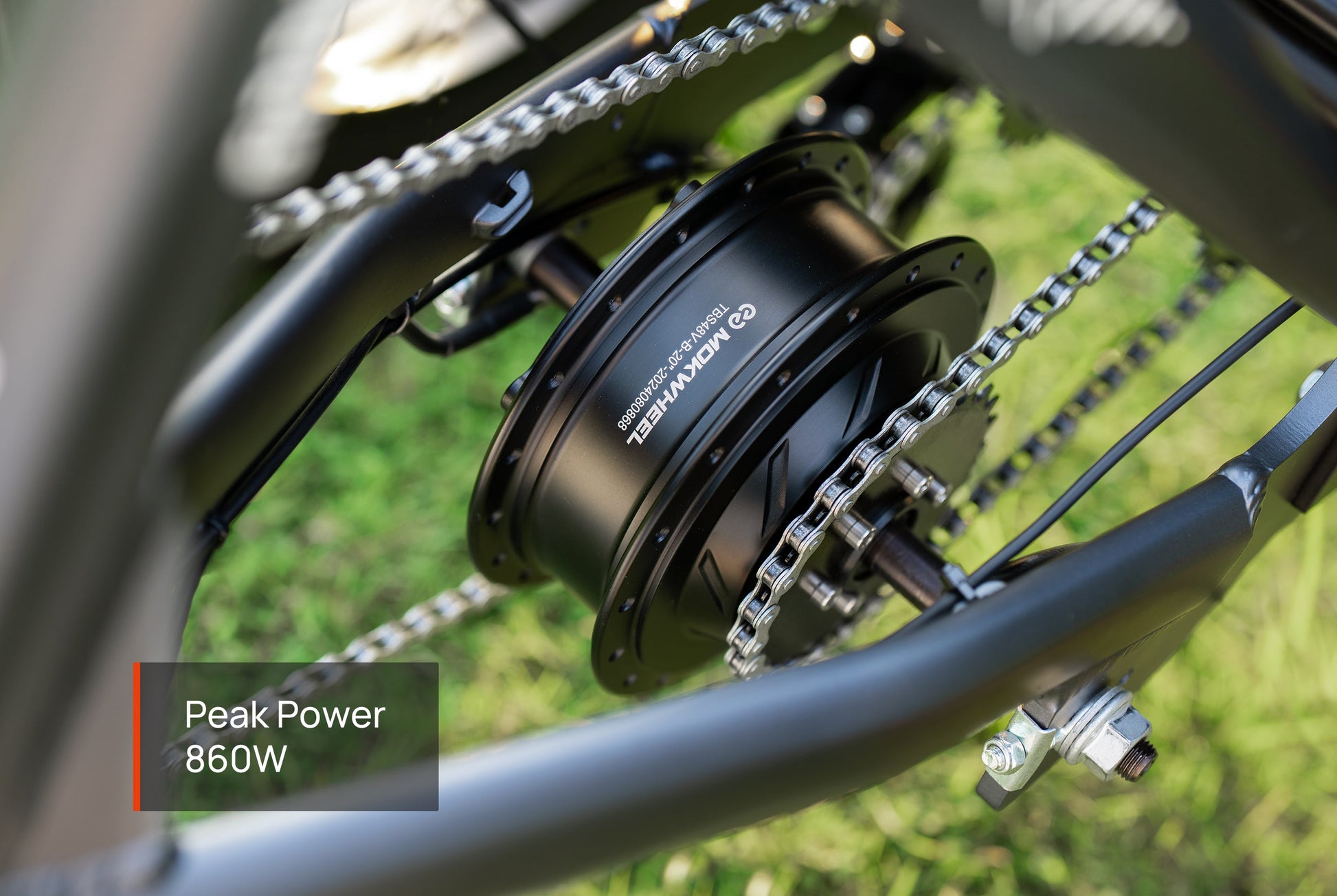

• Motor: Continuous 500W, Peak 860W, Torque 70Nm+

• Speed: 15 mph (throttle) / 20 mph (pedal assist)

• Range: 45–55 miles

• Weight: 101 lbs

• Payload Capacity: 350 lbs

• Basket Capacity: Front 55 lbs / Rear 220 lbs

Performance & Components
Durable components engineered for smooth rides and dependable hauling:

• Sensor: Cadence sensor

• Frame: 6061 aluminum alloy with internal battery

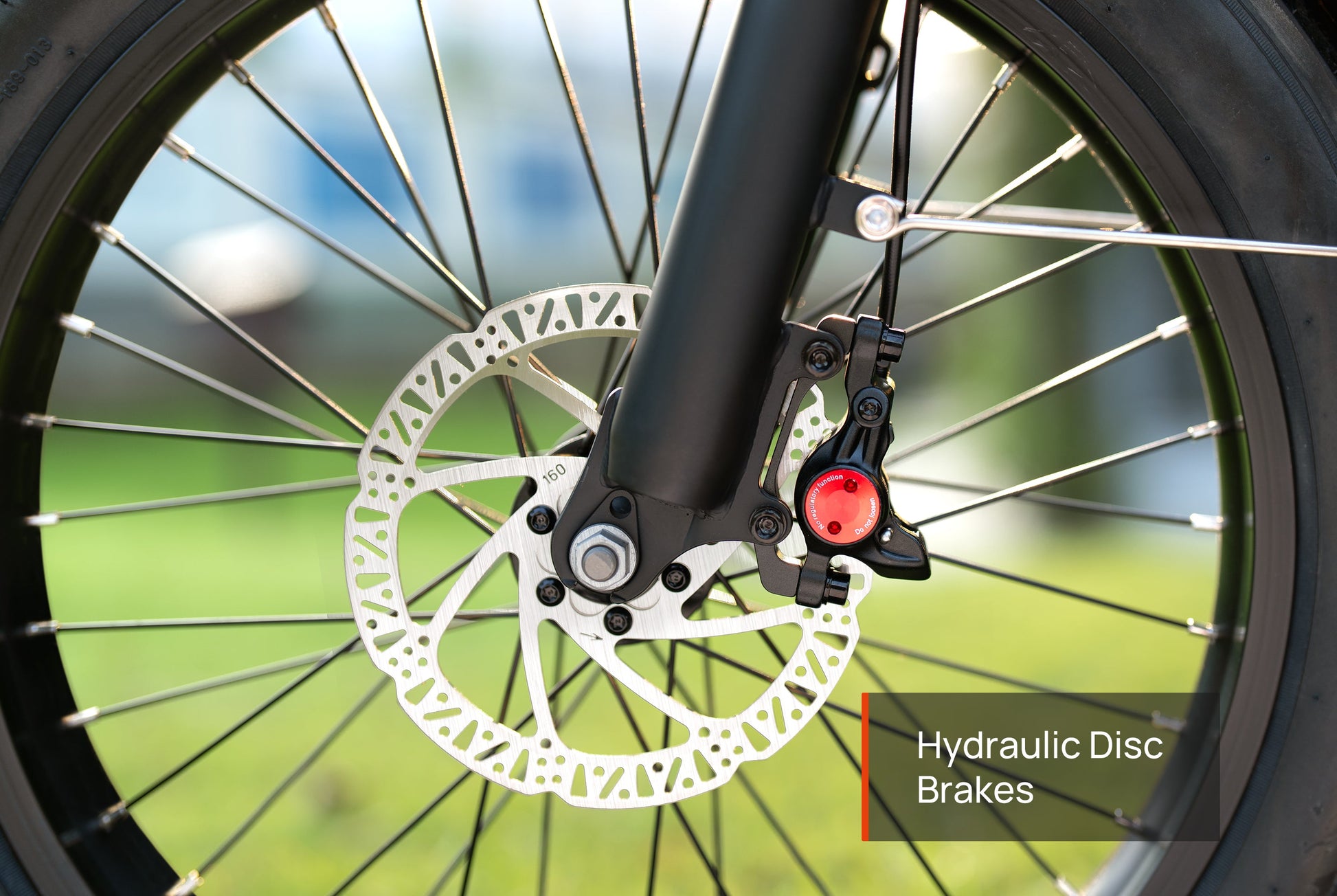

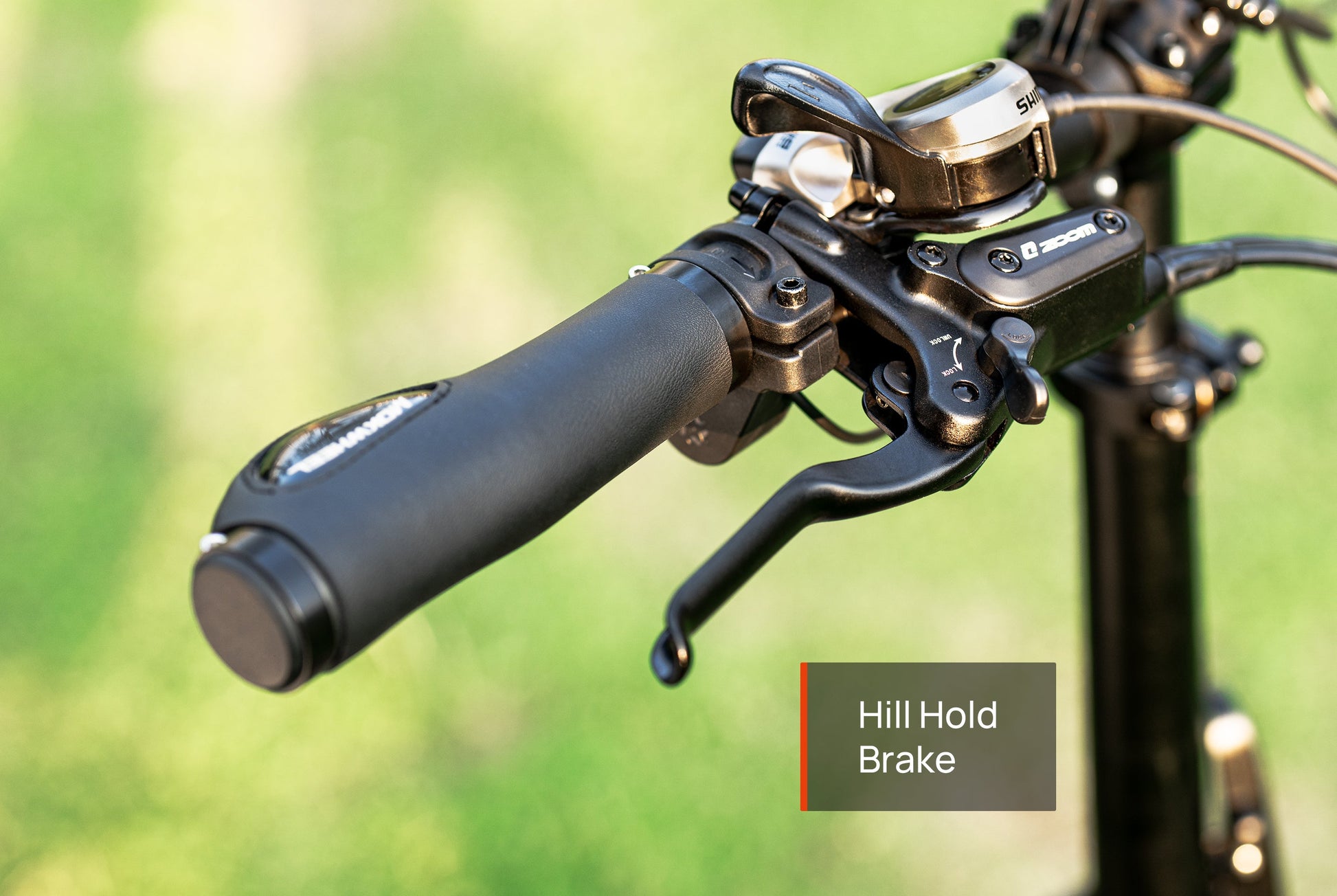

• Brakes: HB-892E hydraulic brakes

• Tires: 20" × 3.0" road tires

• Display: LED integrated display

• Gearing: Shimano 7-speed

• Derailleur: Shimano 7-speed rear

• Chain: KMC stainless steel

• Crankset: 46T aluminum alloy

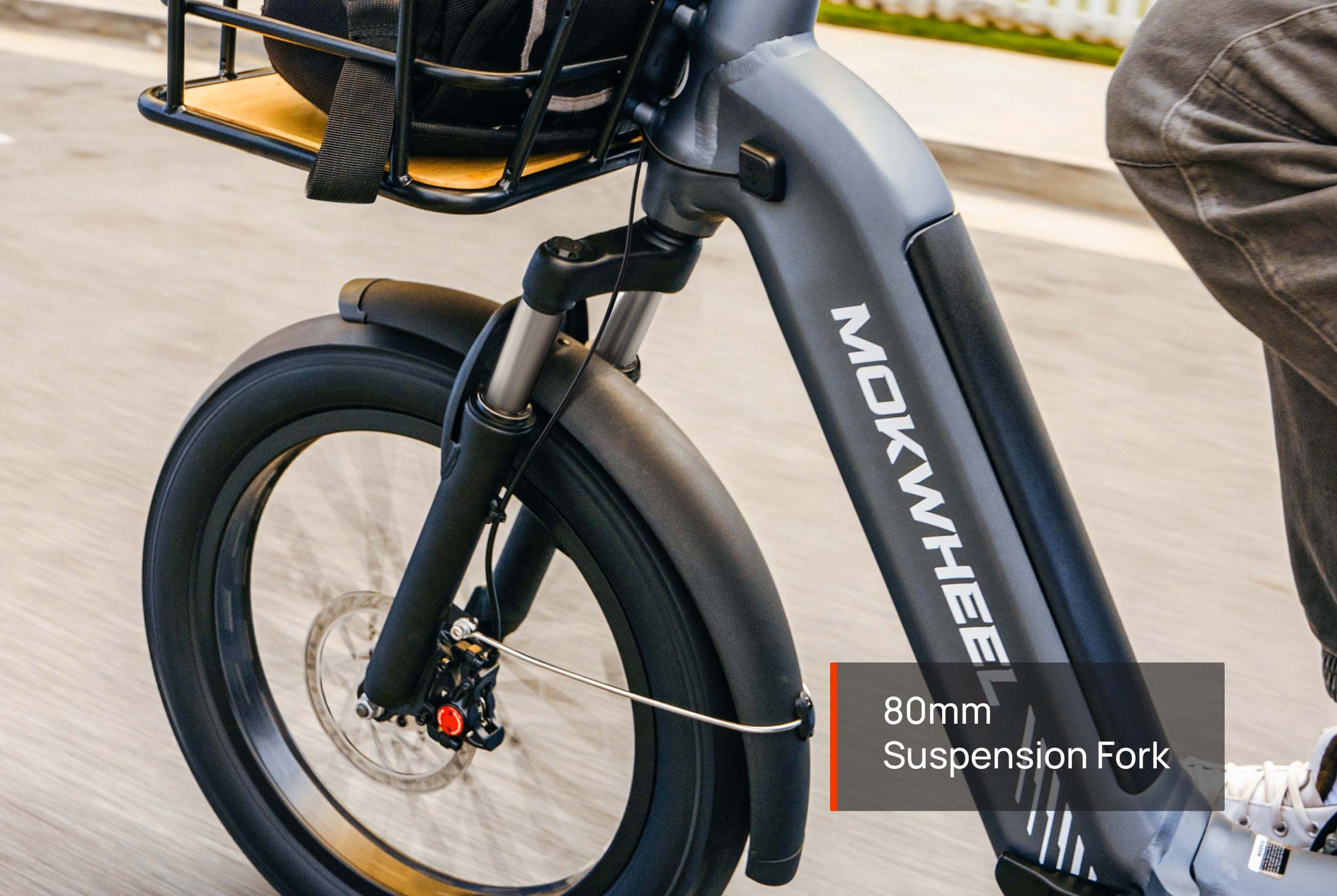

• Front Fork: 80mm travel

• Throttle: Thumb throttle

• Handlebar Length: 620 mm

• Kickstand: 6061 aluminum

• Rims: Aluminum alloy

• Saddle: Customized comfort leather seat

• Spokes: Heavy-duty carbon steel, 13G × 183 mm

Designed for Utility. Built for Strength.
The Granite Ebike offers exceptional load capacity, stable handling, and everyday practicality—perfect for cargo, commuting, and adventure riding.
