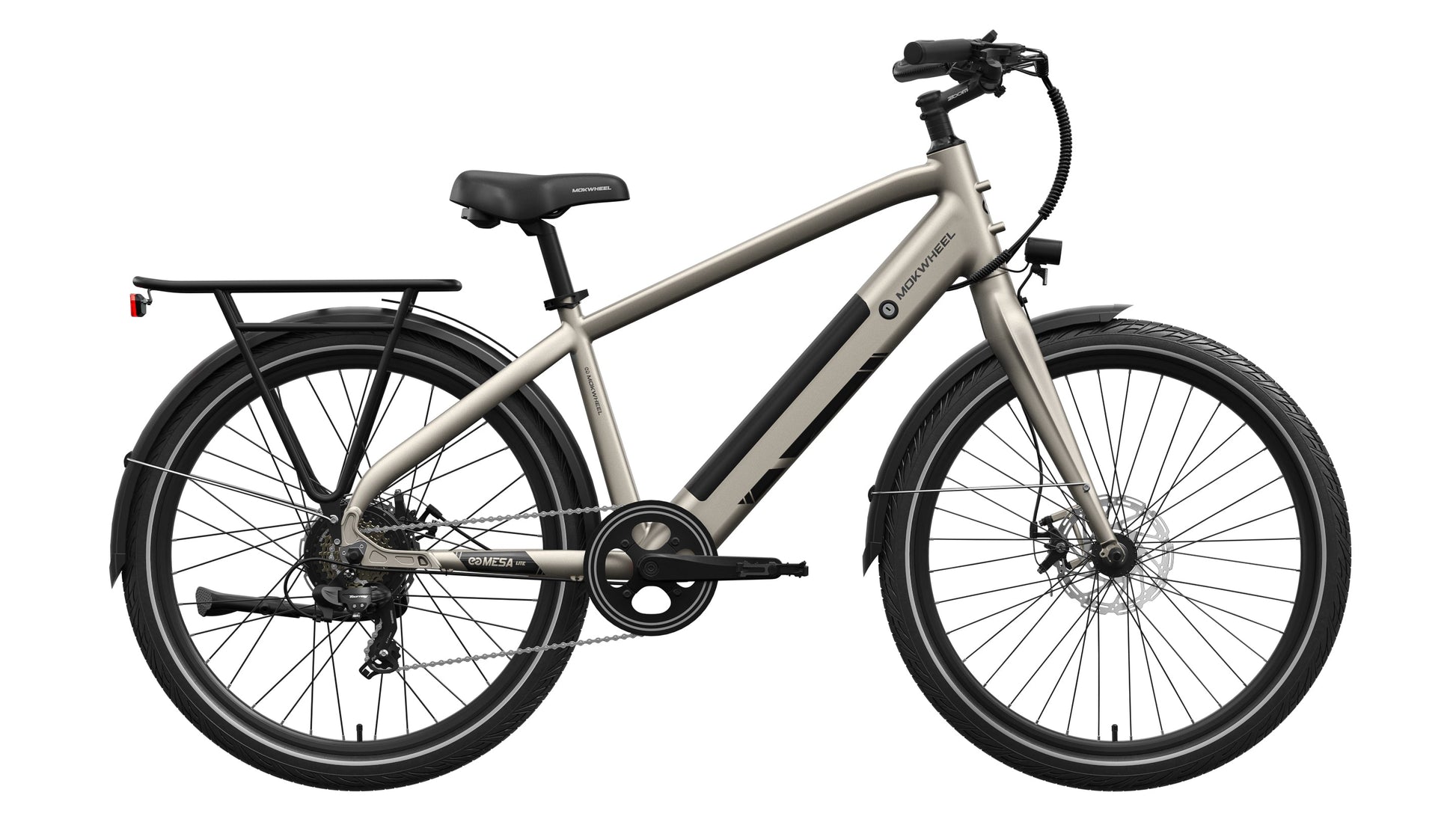

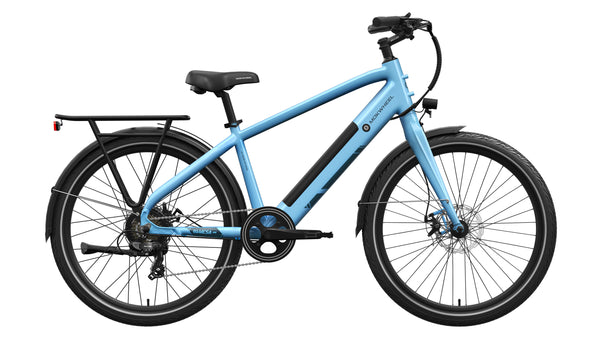

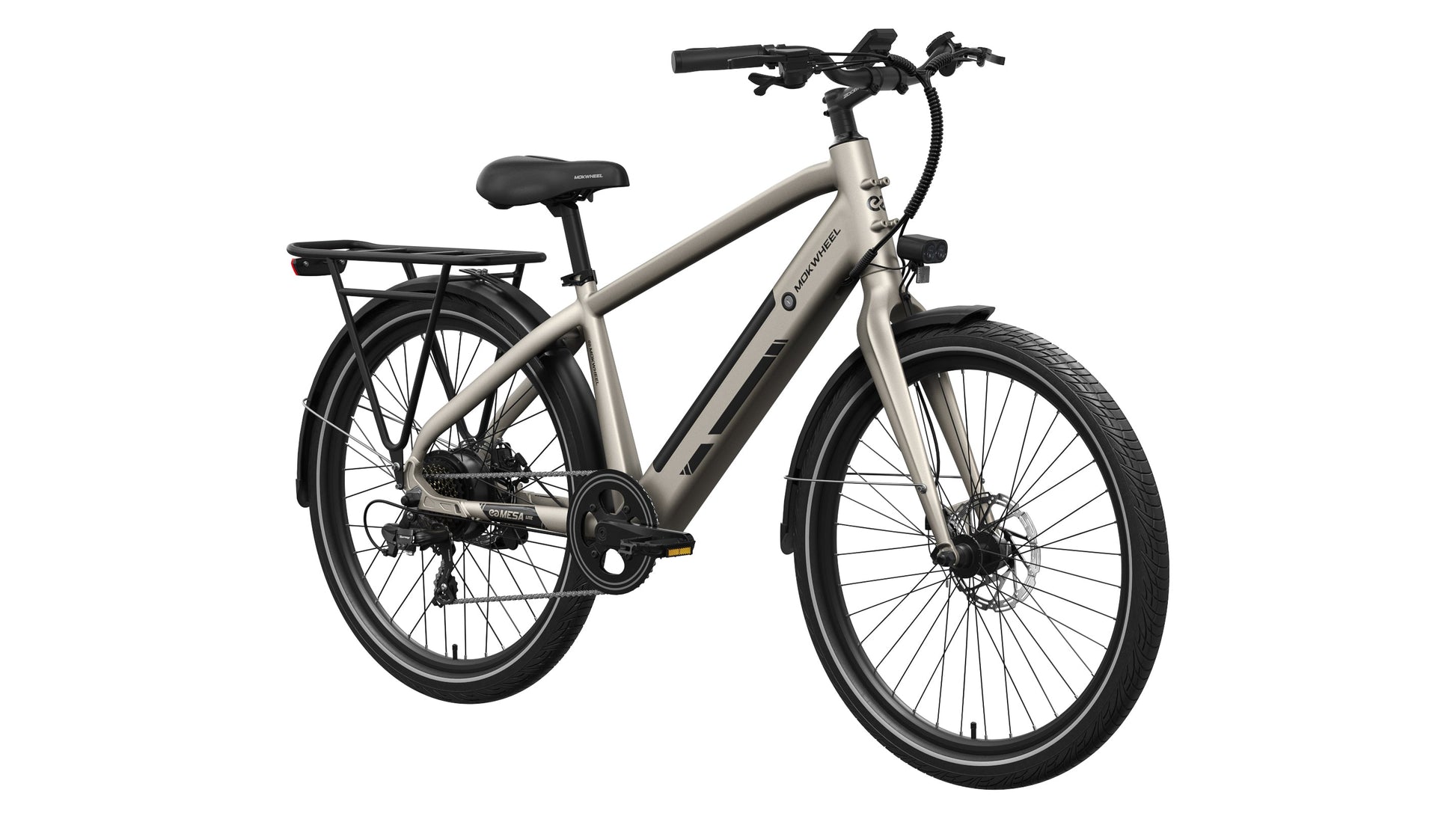

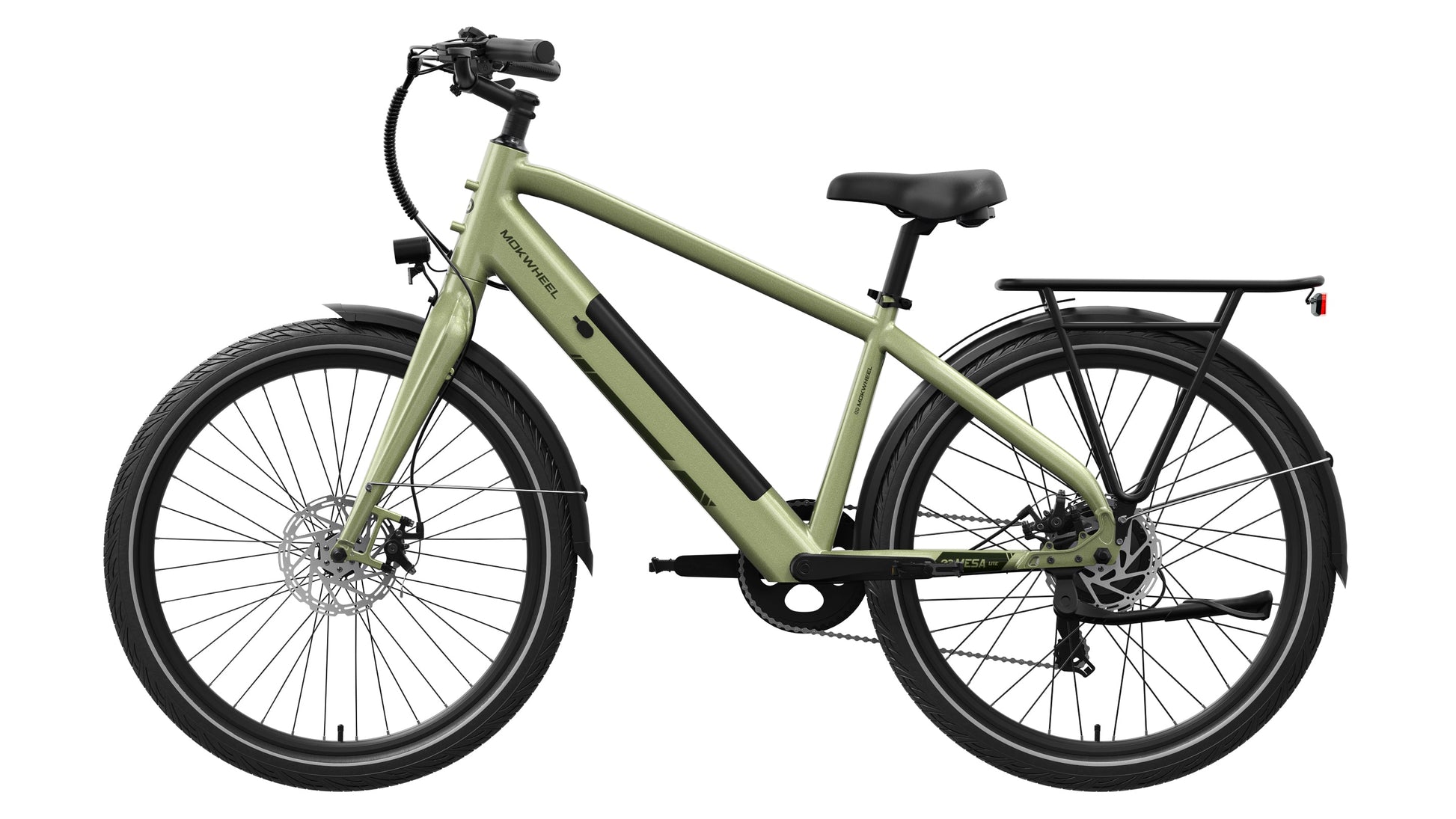

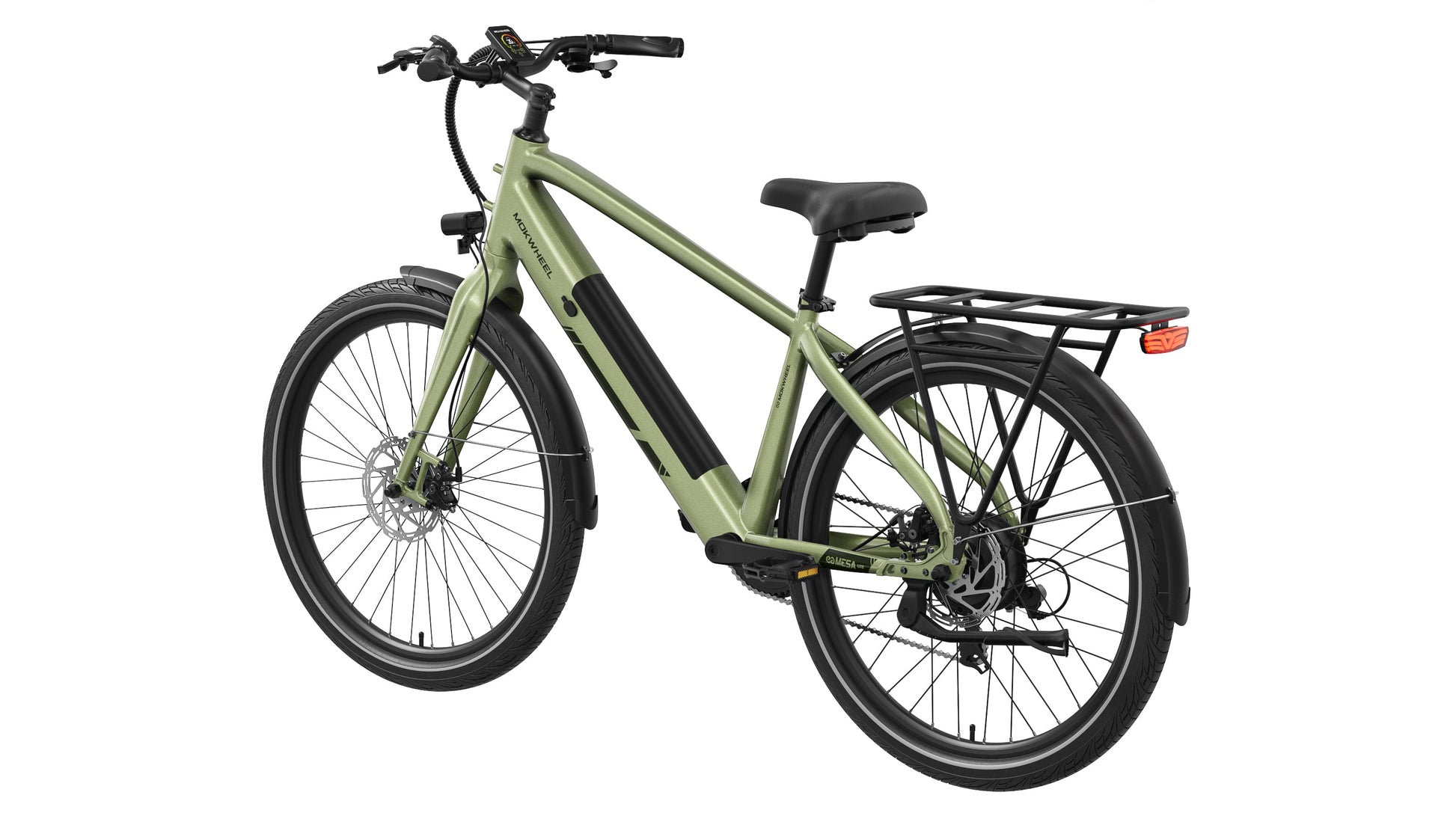

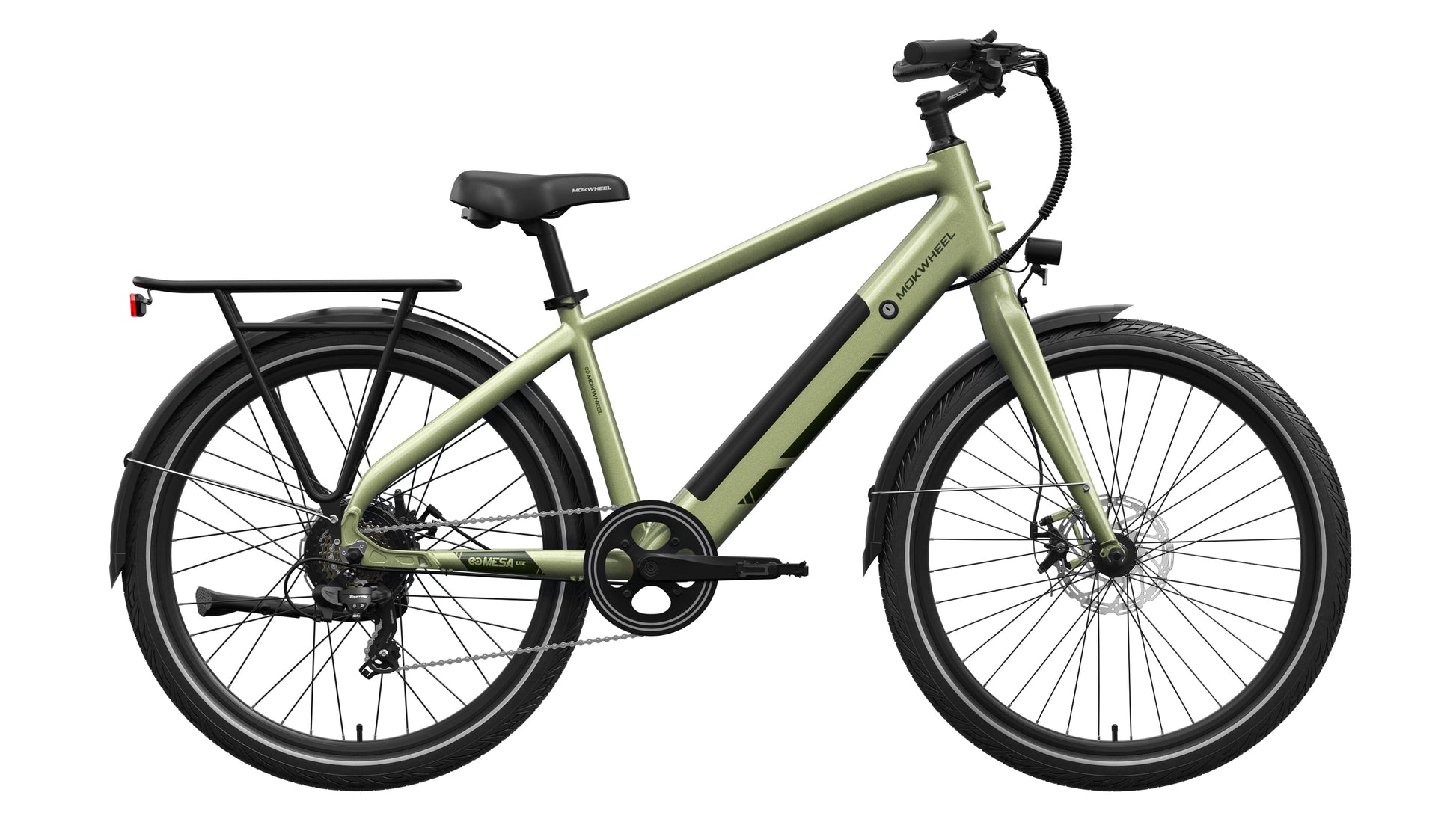

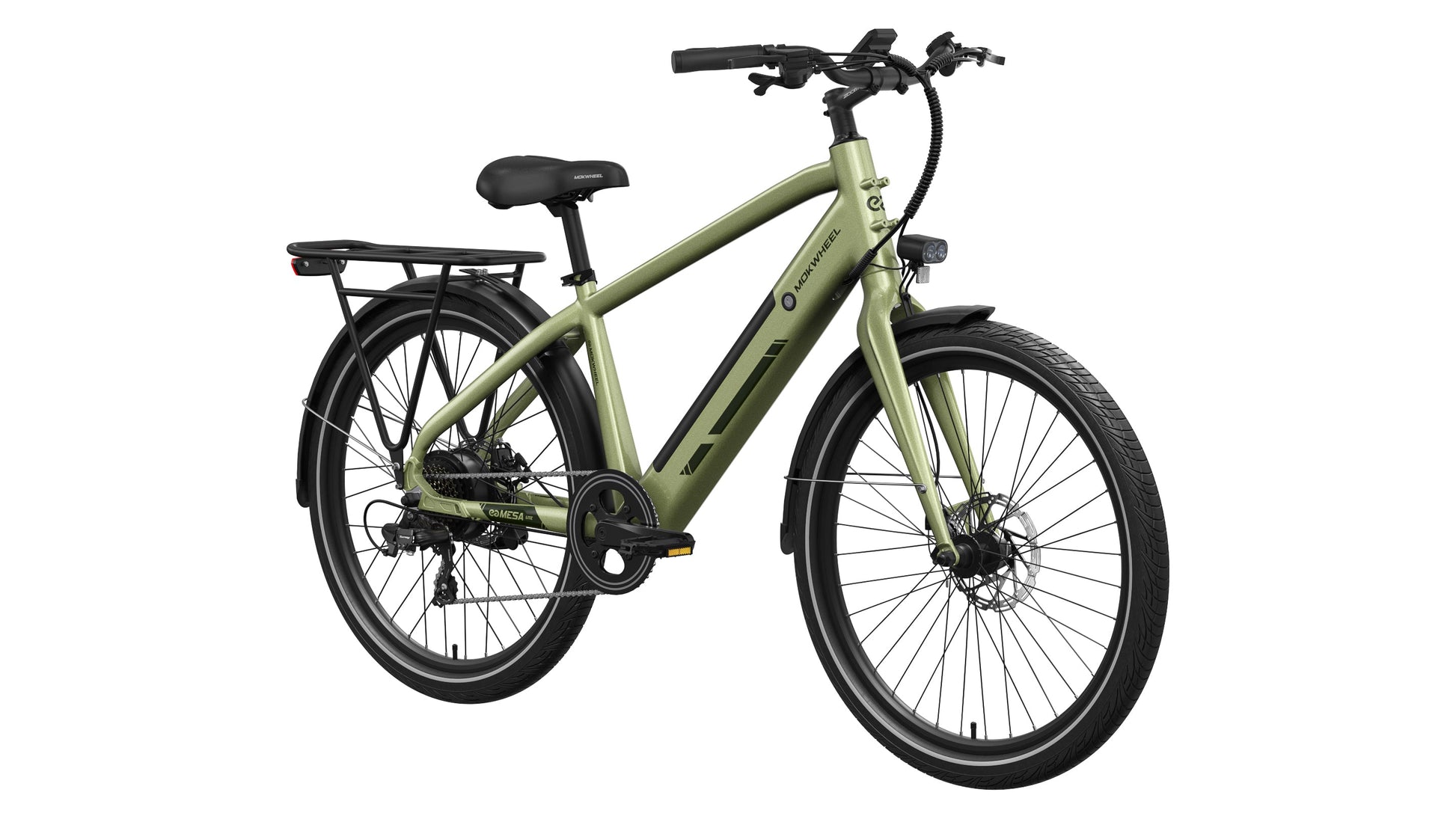

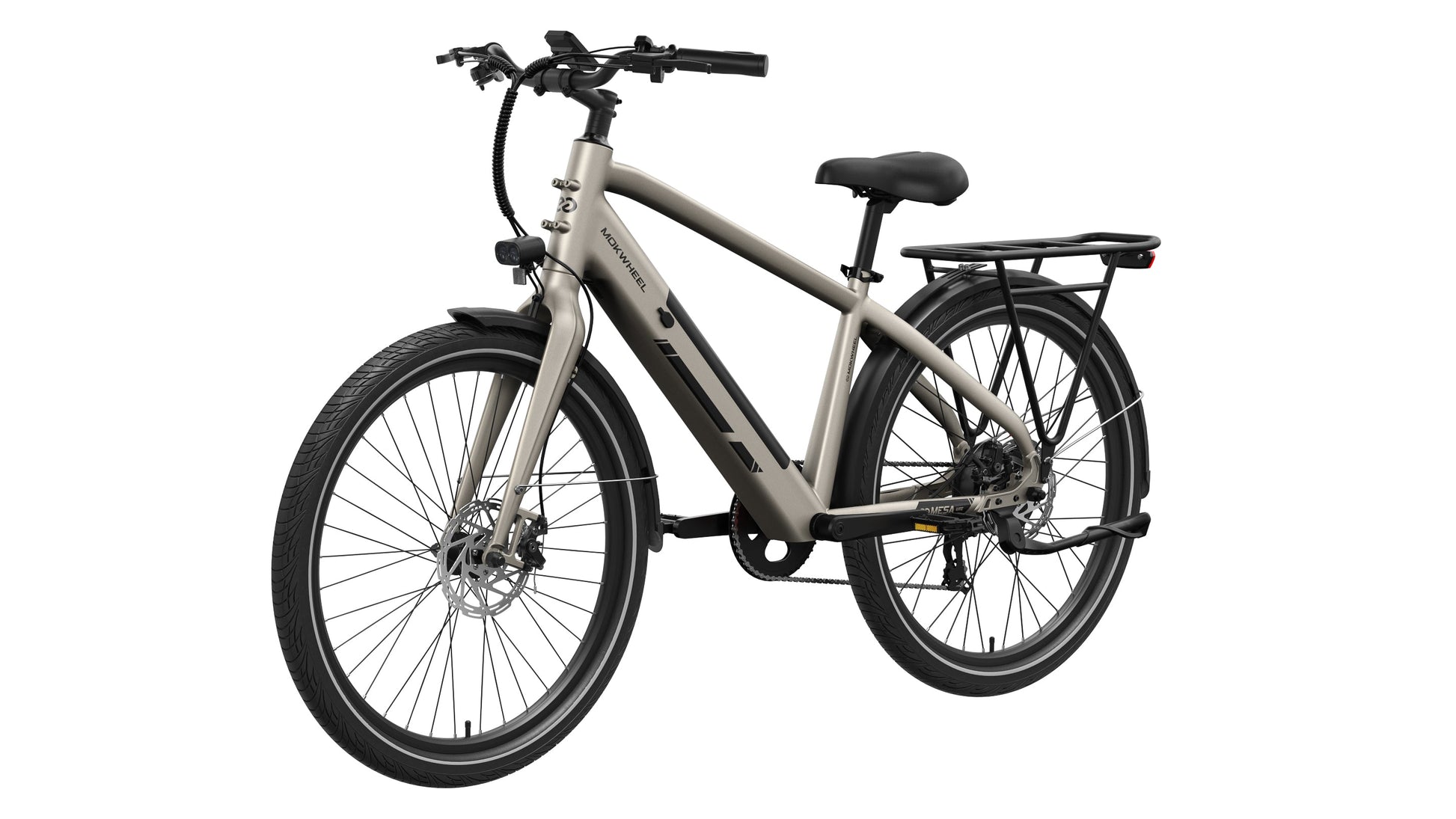

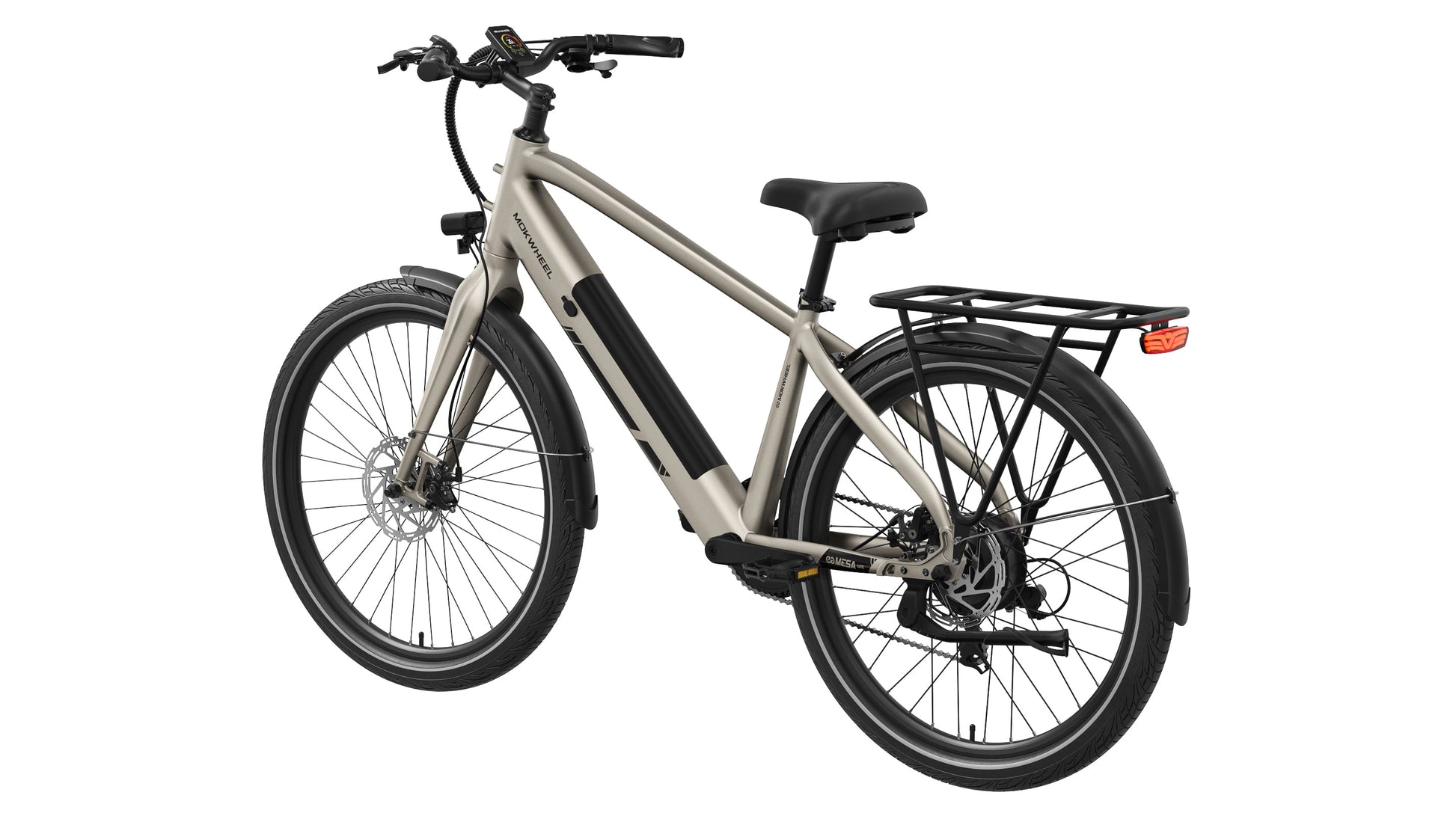

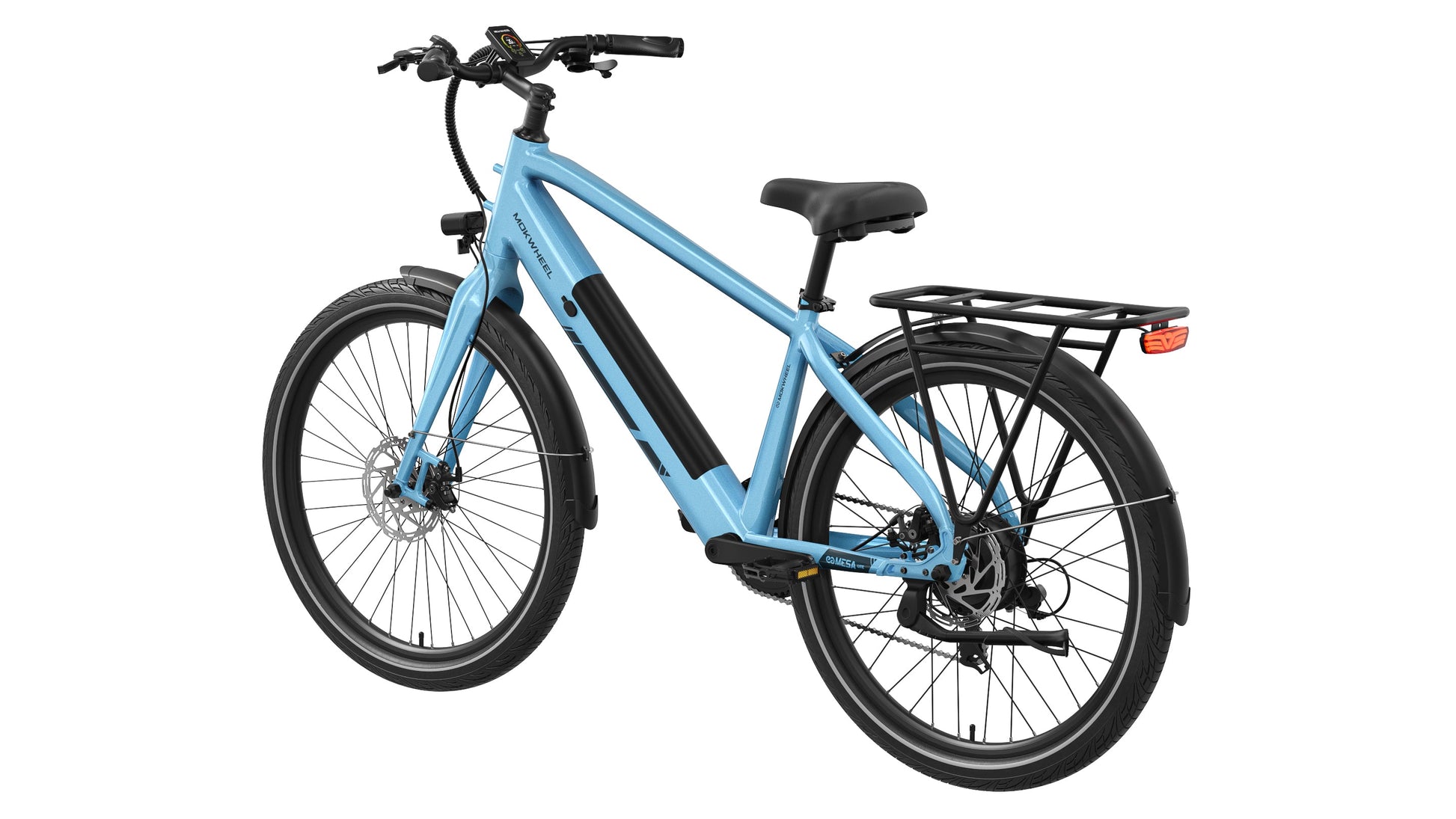

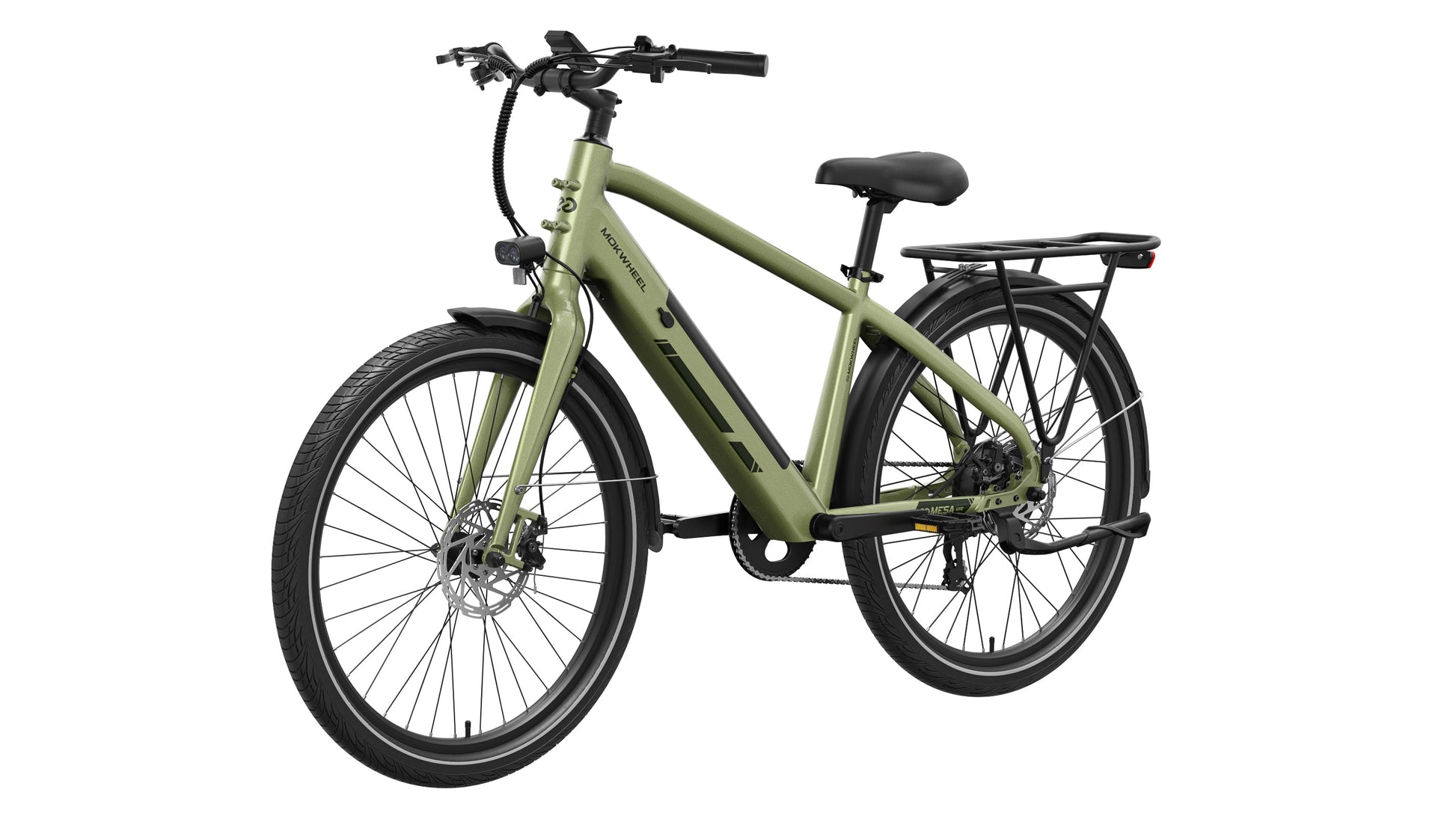

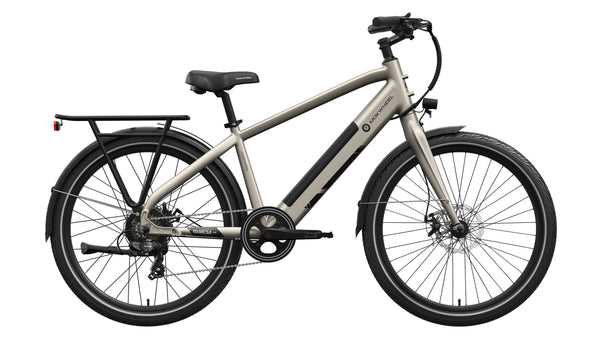

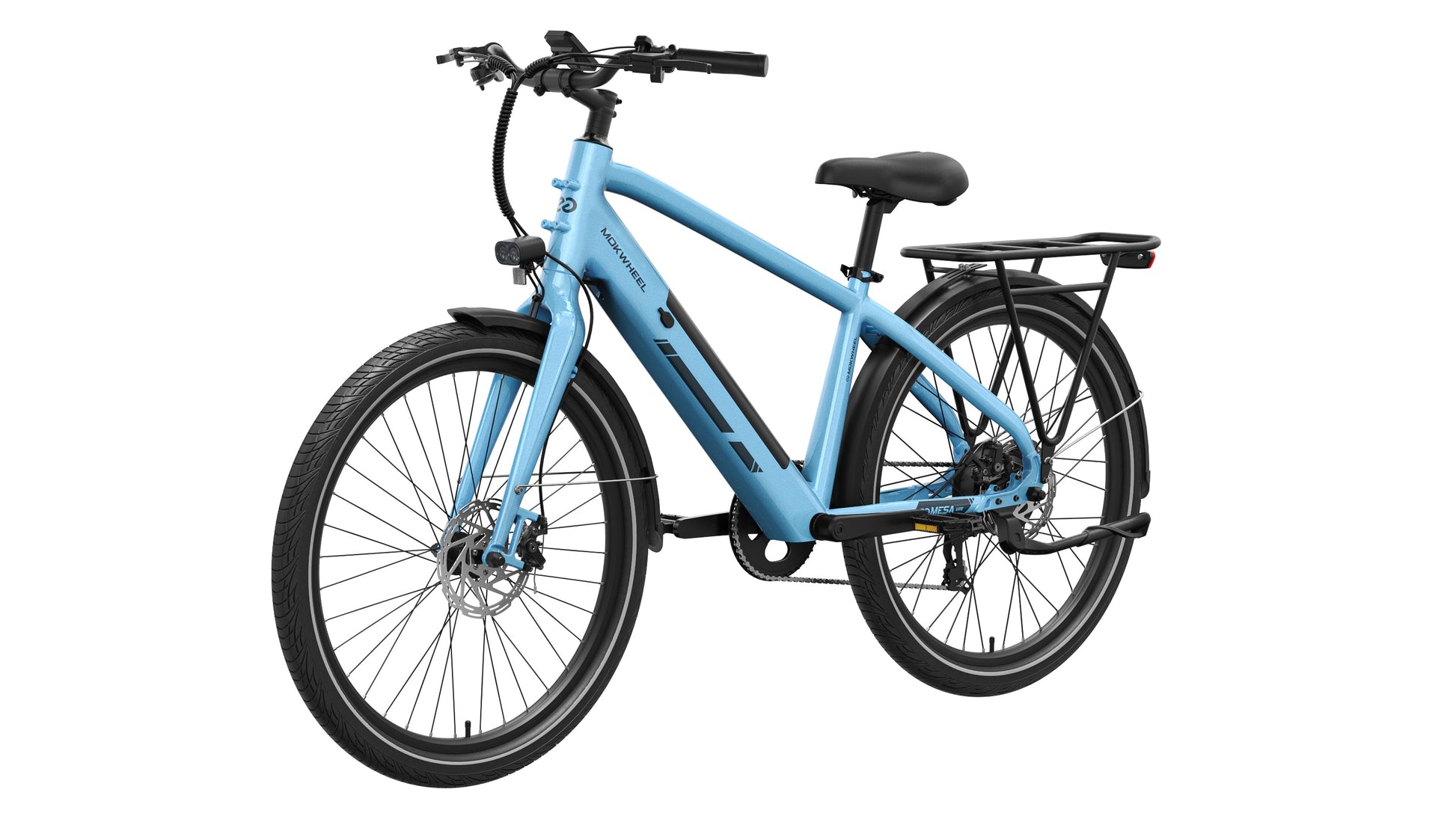

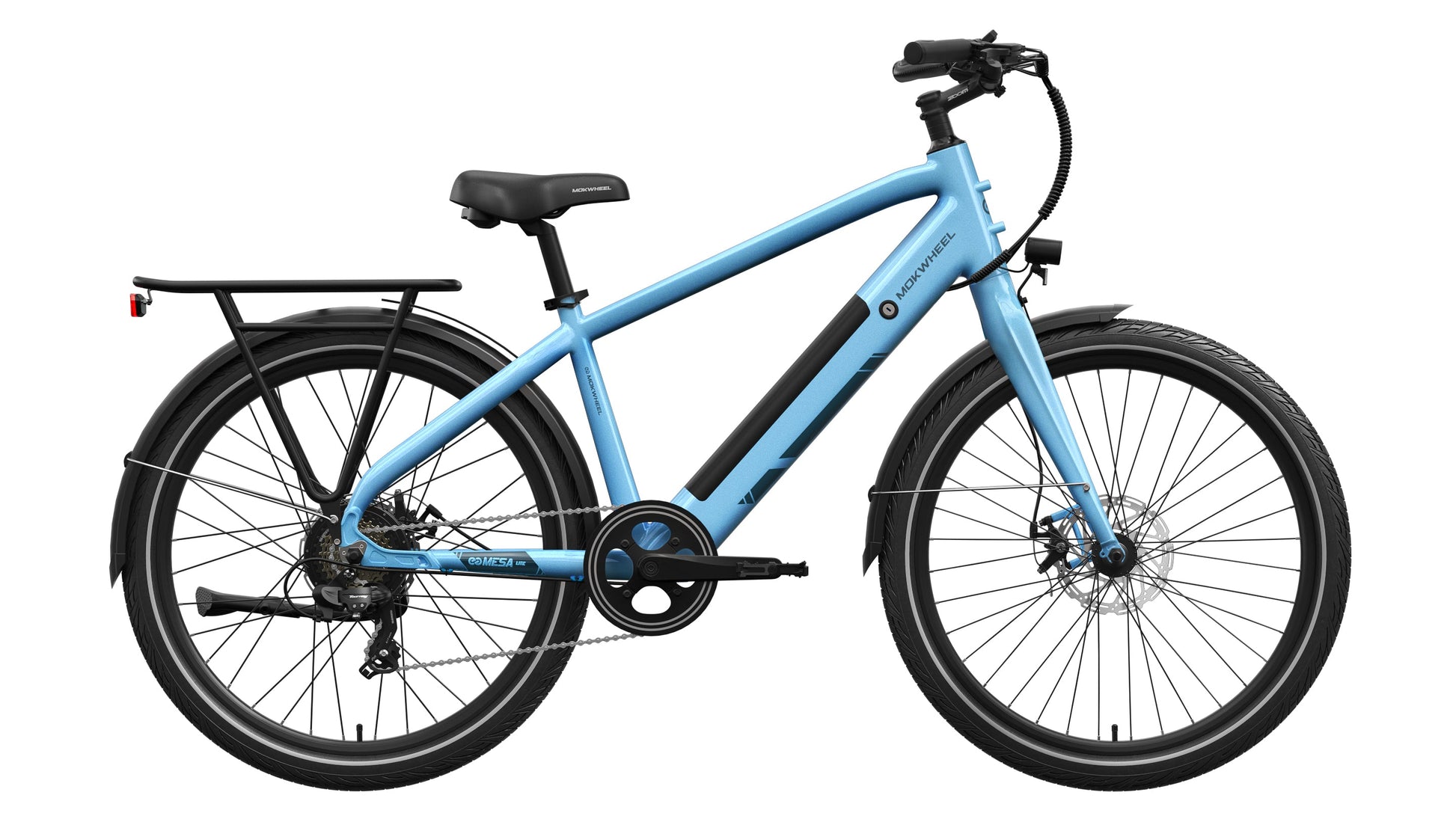

Mokwheel Mesa Lite Ebike

Mesa Lite Ebike

Size and Fit
The Mesa Lite is designed in one versatile size to fit most adults, providing comfort and control for riders between 5'8" and 6'8".

• Reach: 18 inches

• Top Tube Length: 25 inches

• Standover Height: 31 inches

• Wheelbase: 44 inches

• Minimum Saddle Height: 36 inches

• Maximum Saddle Height: 43 inches

• Total Length: 72 inches

• Head Tube Length: 7 inches

Technical Specifications
Lightweight and efficient for urban commuting and recreational rides:

• Battery: 36V 14.7Ah, UL certified

• Charger: 36V 2A

• Motor: Continuous 350W, Peak 600W, Torque 45Nm+

• Speed: 20 mph with throttle, 25 mph with pedal assist

• Weight: 59 lbs

• Range: 40–50 miles

• Payload Capacity: 350 lbs

Performance and Handling
Engineered for smooth rides and reliable control:

• Sensor: Cadence sensor

• Brakes: Zoom BL-03E

• Tires: 27.5" x 2.4"

• Display: Integrated LED

• Gearing: Shimano 7-speed

• Derailleur: Shimano 7-speed rear

• Chain: KMC stainless steel

• Crankset: 44T aluminum alloy

• Front Fork: Aluminum

• Frame: 6061 aluminum alloy with internal battery

• Throttle: Thumb

• Handlebar: 720mm aluminum alloy, 31.8mm

• Kickstand: Aluminum alloy

• Rims: Aluminum alloy

• Saddle: Customized comfort leather seat

• Spokes: Heavy-duty carbon steel, front 13G × 263–265 mm, rear 13G × 223–224 mm

Warranty and Services

• Free shipping on all online orders

• 15-day returns for all Mokwheel bikes

• Two-year limited warranty

Reliable. Lightweight. Efficient.
The Mesa Lite Ebike delivers dependable performance, comfortable handling, and a lightweight design, making it ideal for city streets, commuting, and weekend rides.
