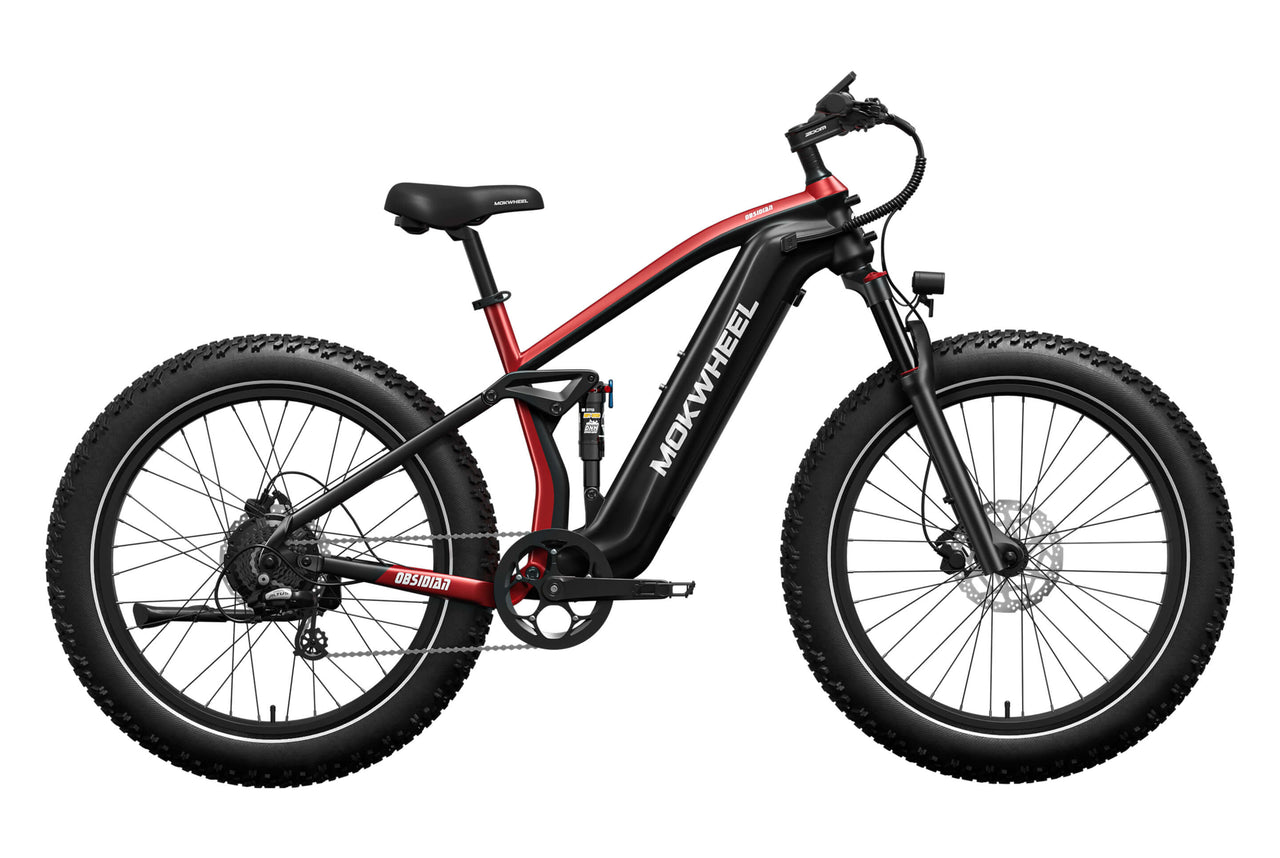

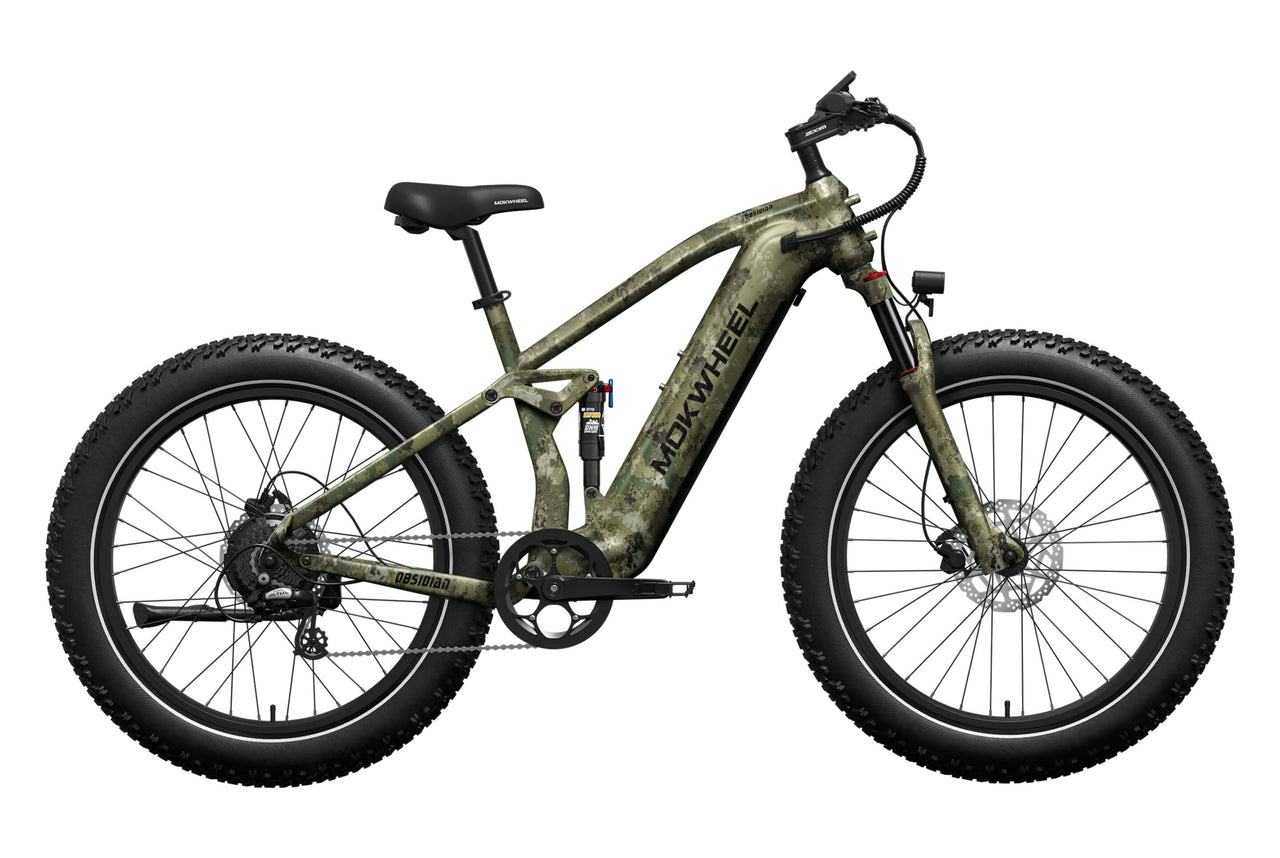

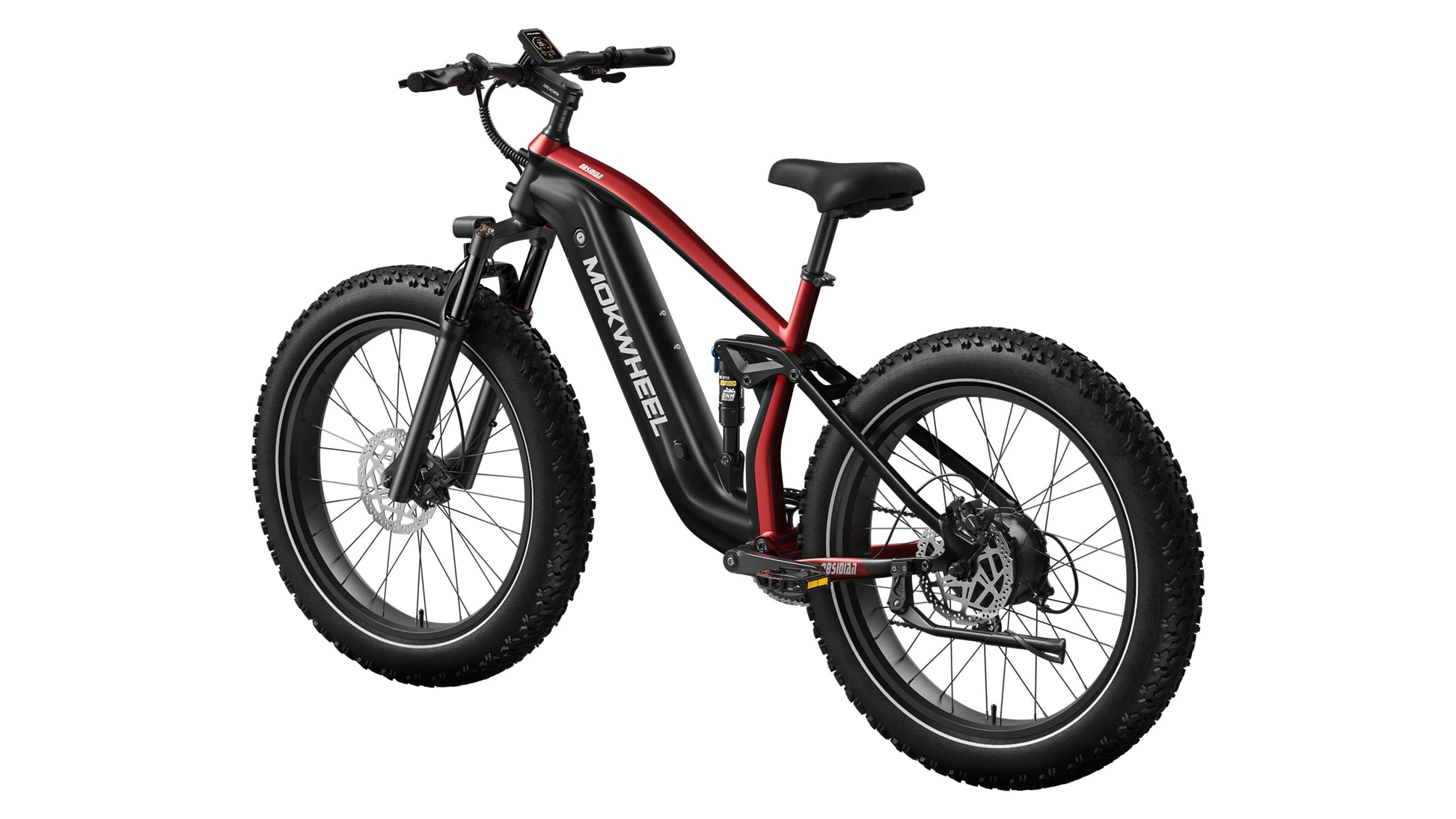

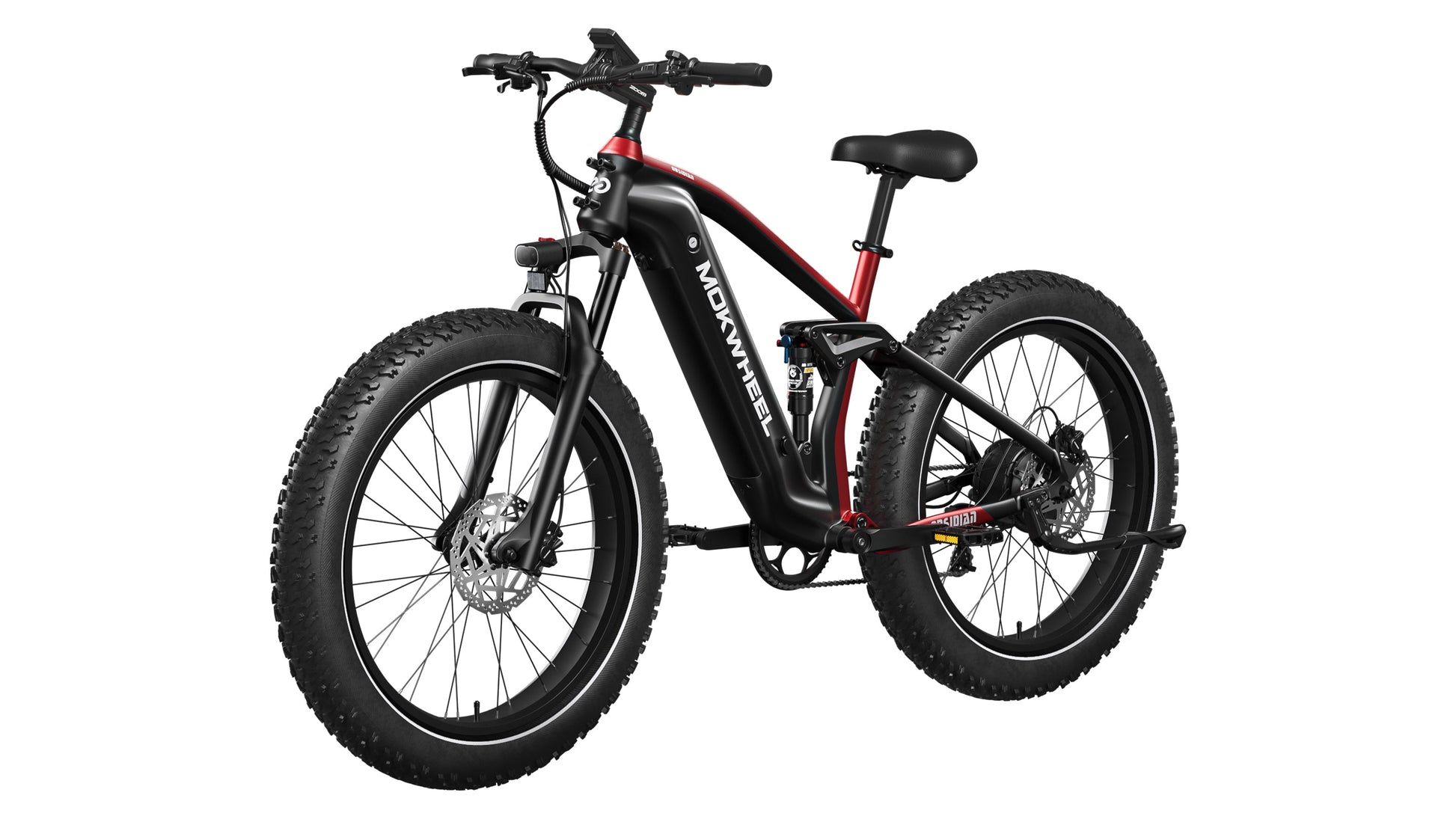

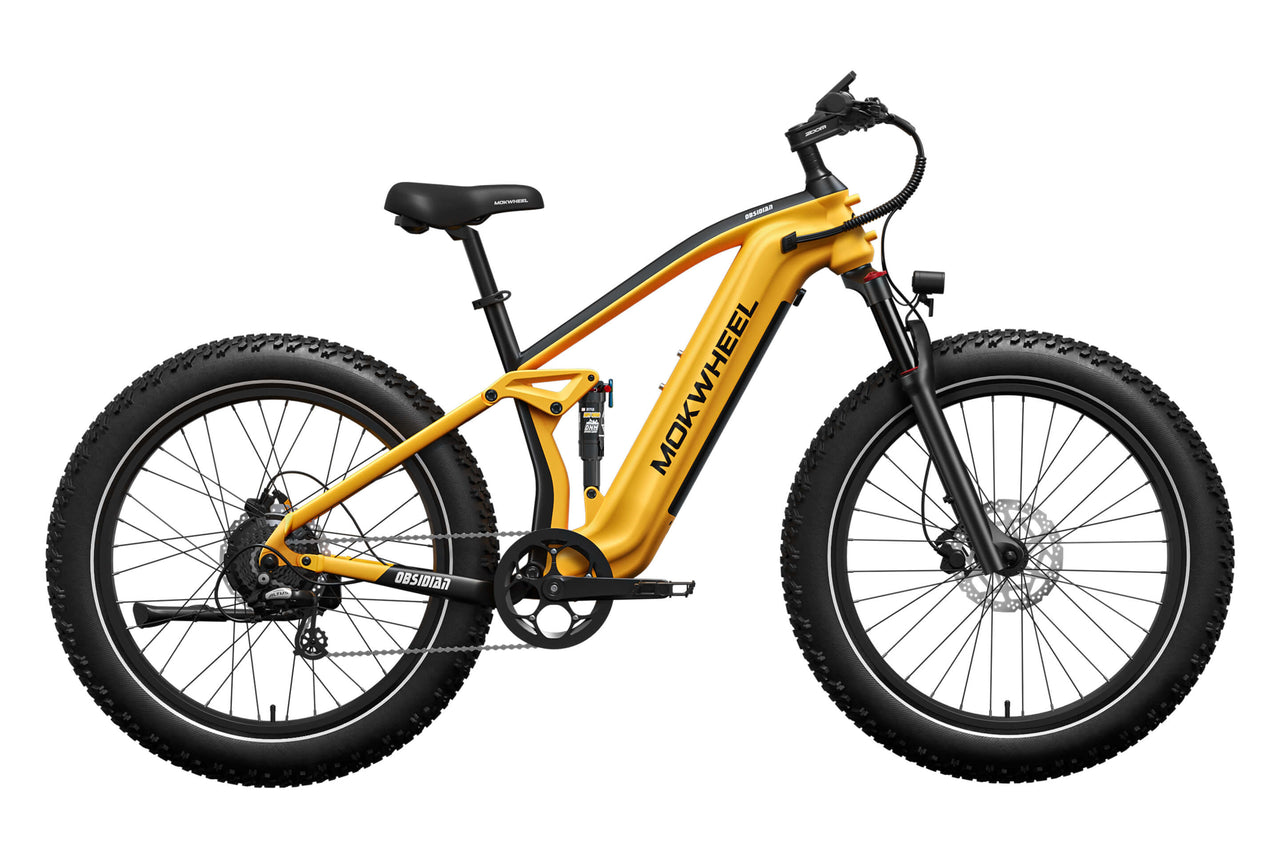

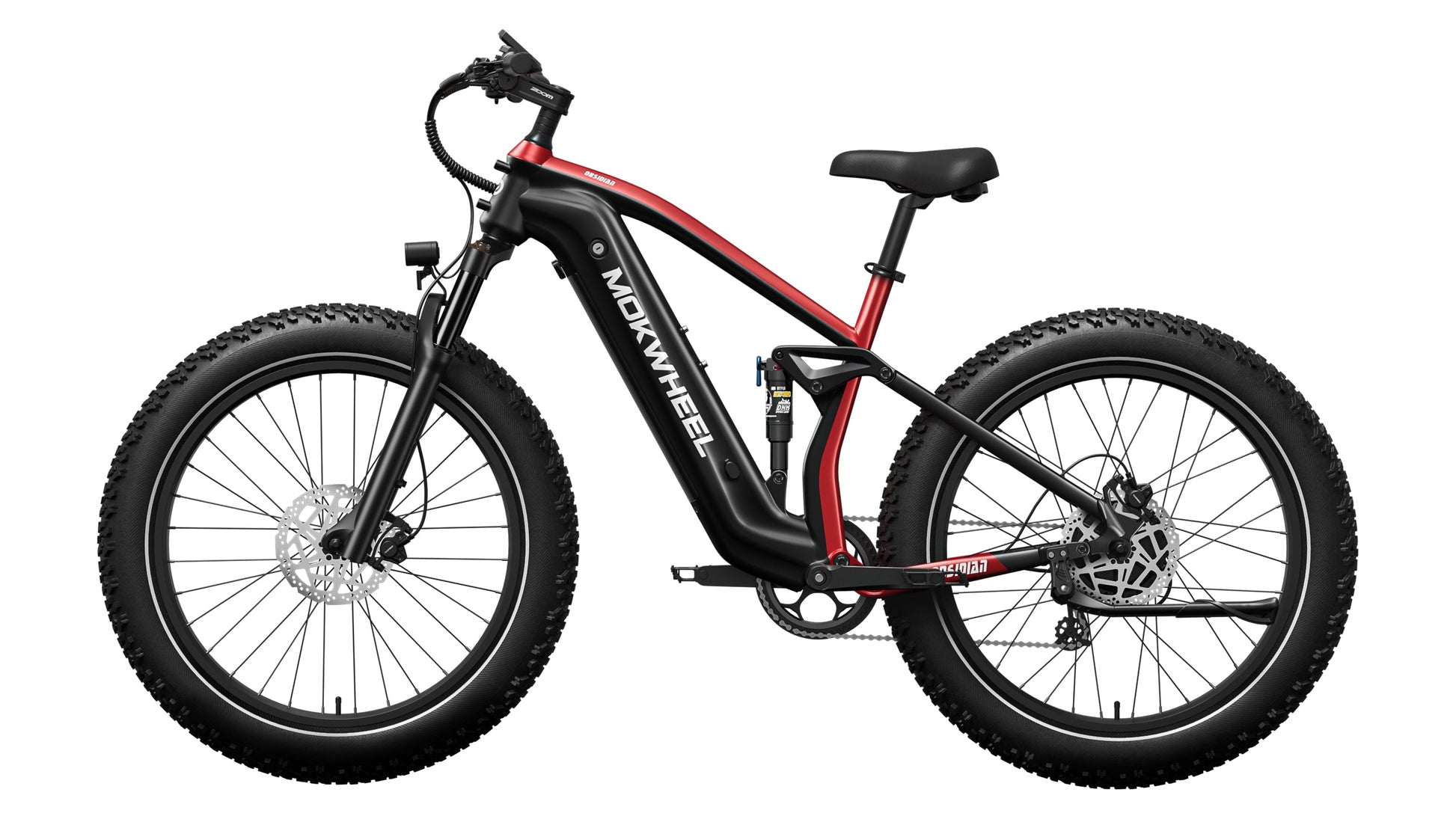

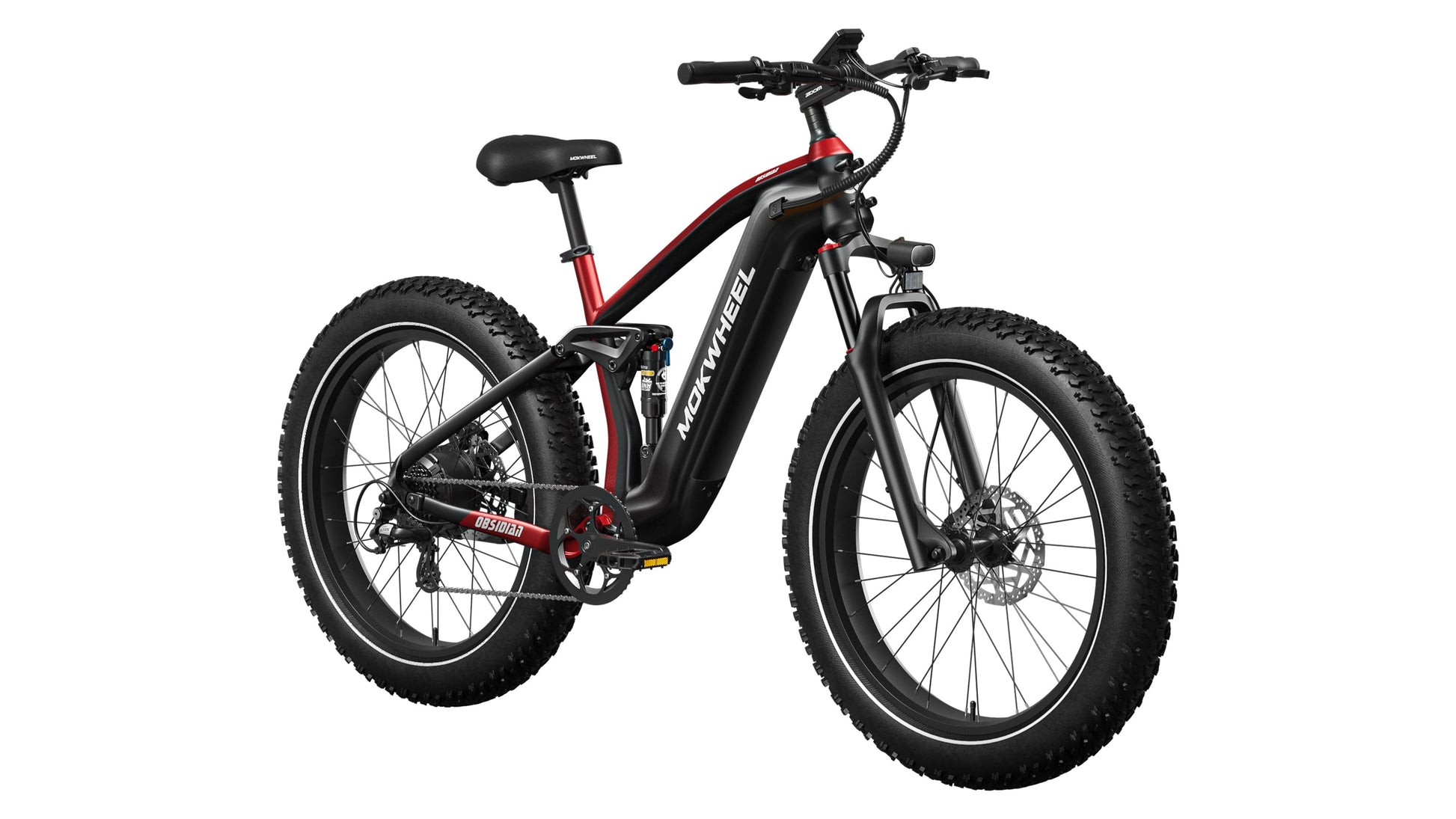

Obsidian Ebike – High Power, Long Range, and Comfort

The Obsidian Ebike is designed for riders seeking power, durability, and comfort. With a robust motor, long-lasting battery, and premium components, this ebike delivers an exceptional riding experience for commuting, off-road adventures, or long-distance rides.

Size & Fit

Obsidian comes in one size to suit most adults.

• Recommended Rider Height: 5'6" – 6'8"

Key Measurements:

• Reach: 17"

• Top Tube Length: 25"

• Standover Height: 30"

• Wheelbase: 48"

• Minimum Saddle Height: 35"

• Maximum Saddle Height: 41"

• Total Length: 77"

• Head Tube Length: 6"

Technical Specifications

Battery & Power

• Battery: 48V 19.6Ah (UL Compliant)

• Charger: 48V 3A

• Motor:

  • Rated Power: 750W

  • Continuous Power: 1000W

  • Peak Power: 1300W

  • Torque: 105Nm+

Speed & Range

• Speed Class: 20 mph (Throttle) / 28 mph (Pedal Assist)

• Range: 60–80 miles

• Weight: 77 lbs

• Payload Capacity: 560 lbs

Performance

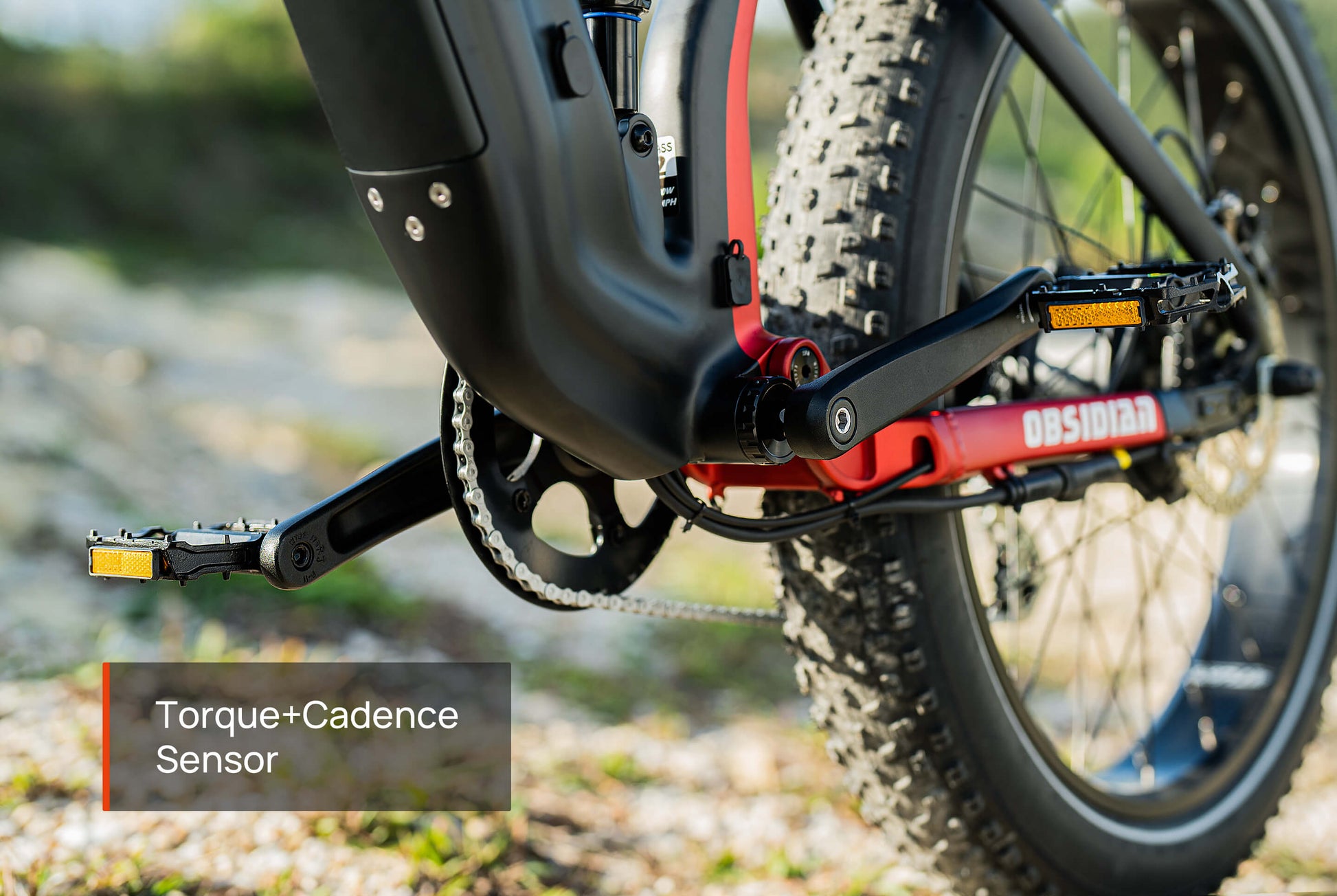

• Sensor: Torque + Cadence Sensor

• Brakes: TEKTRO Hydraulic Disc Brakes

• Tires: 26" × 4.0" Puncture-Resistant Fat Tires

• Display: Integrated LED Display

Drivetrain & Control

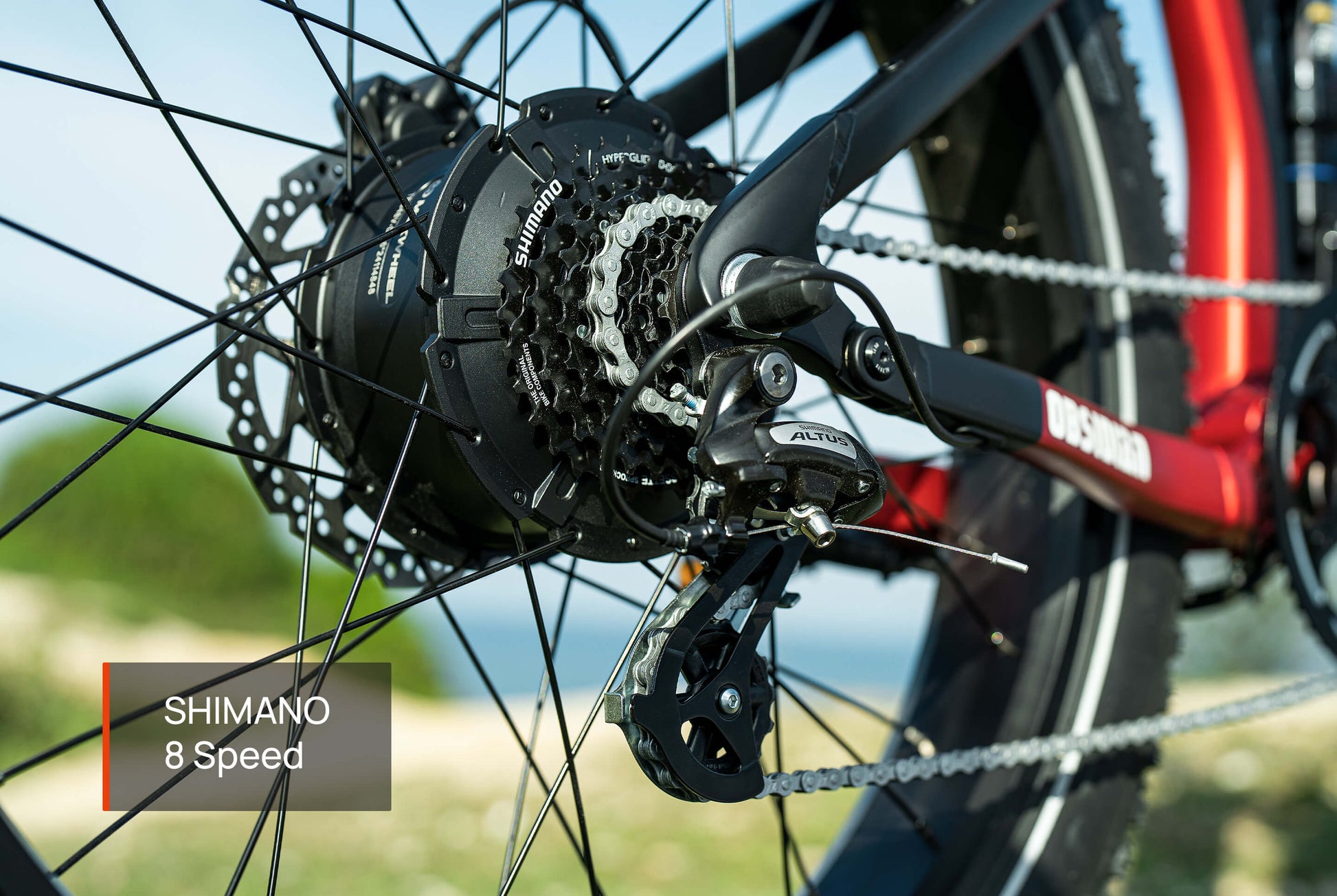

• Gearing: Shimano 8-Speed

• Rear Derailleur: Shimano 8-Speed

• Chain: KMC Stainless Chain

• Crankset: 46T Aluminum Alloy

• Throttle: Thumb Throttle

Build & Comfort

• Front Fork: 130mm Adjustable Suspension

• Frame: 6061 Aluminum Alloy with Internal Battery

• Handlebar: Aluminum Alloy 31.8mm, 720mm

• Saddle: Customized Comfort Leather Seat

• Kickstand: 6061 Aluminum

• Rims: Aluminum Alloy

• Spokes: Heavy-Duty Carbon Steel (12G × 248 mm front / 216 mm rear)
