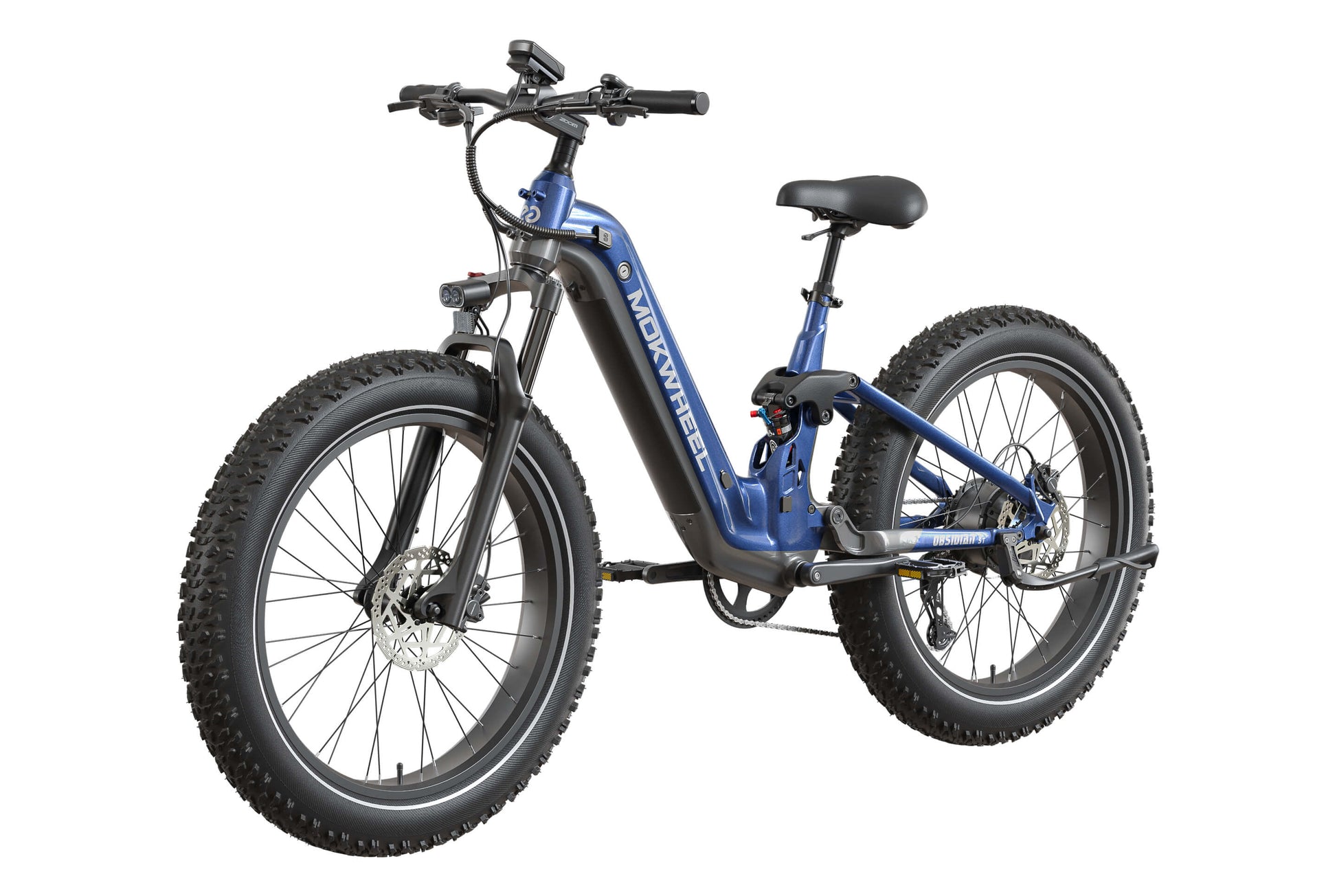

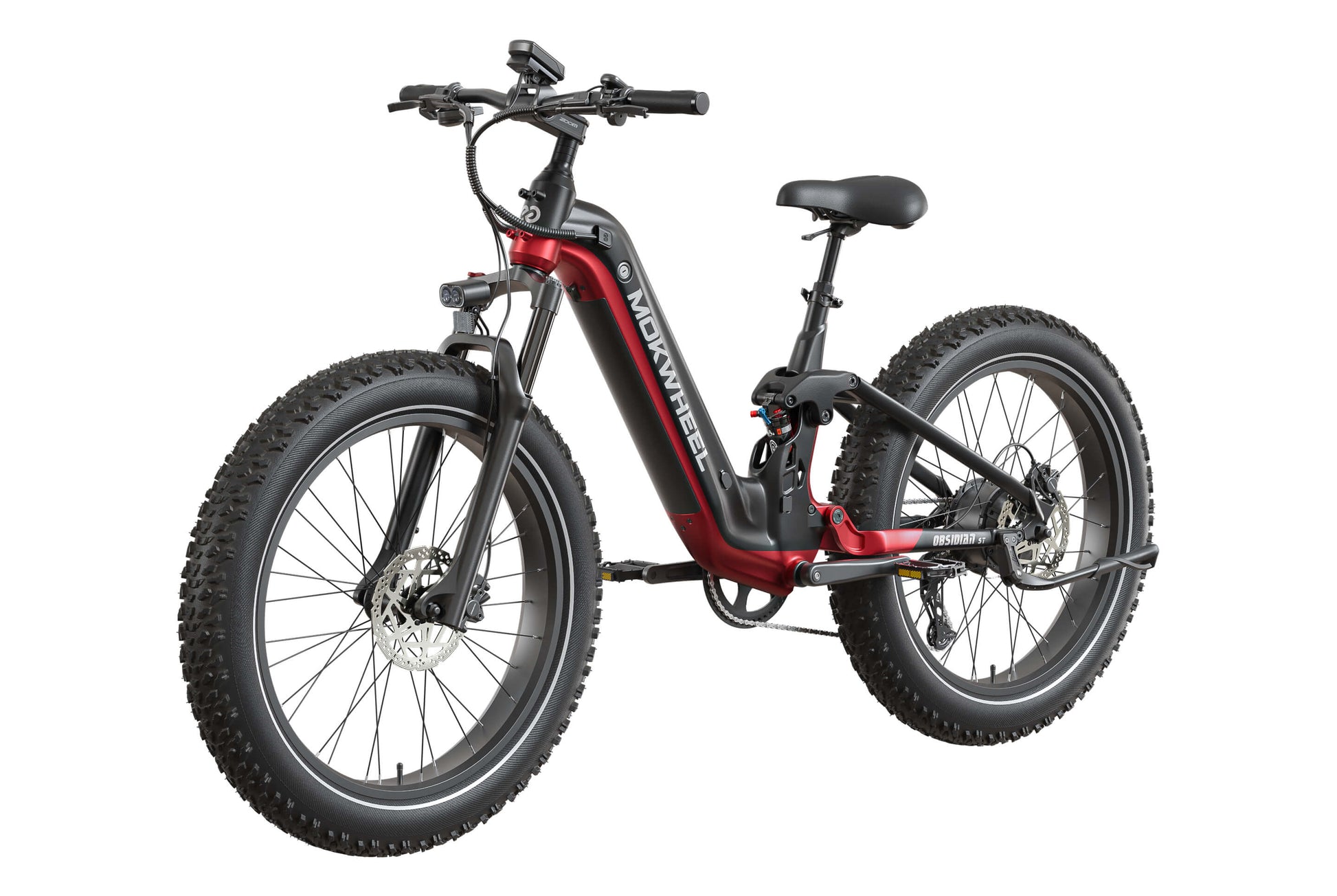

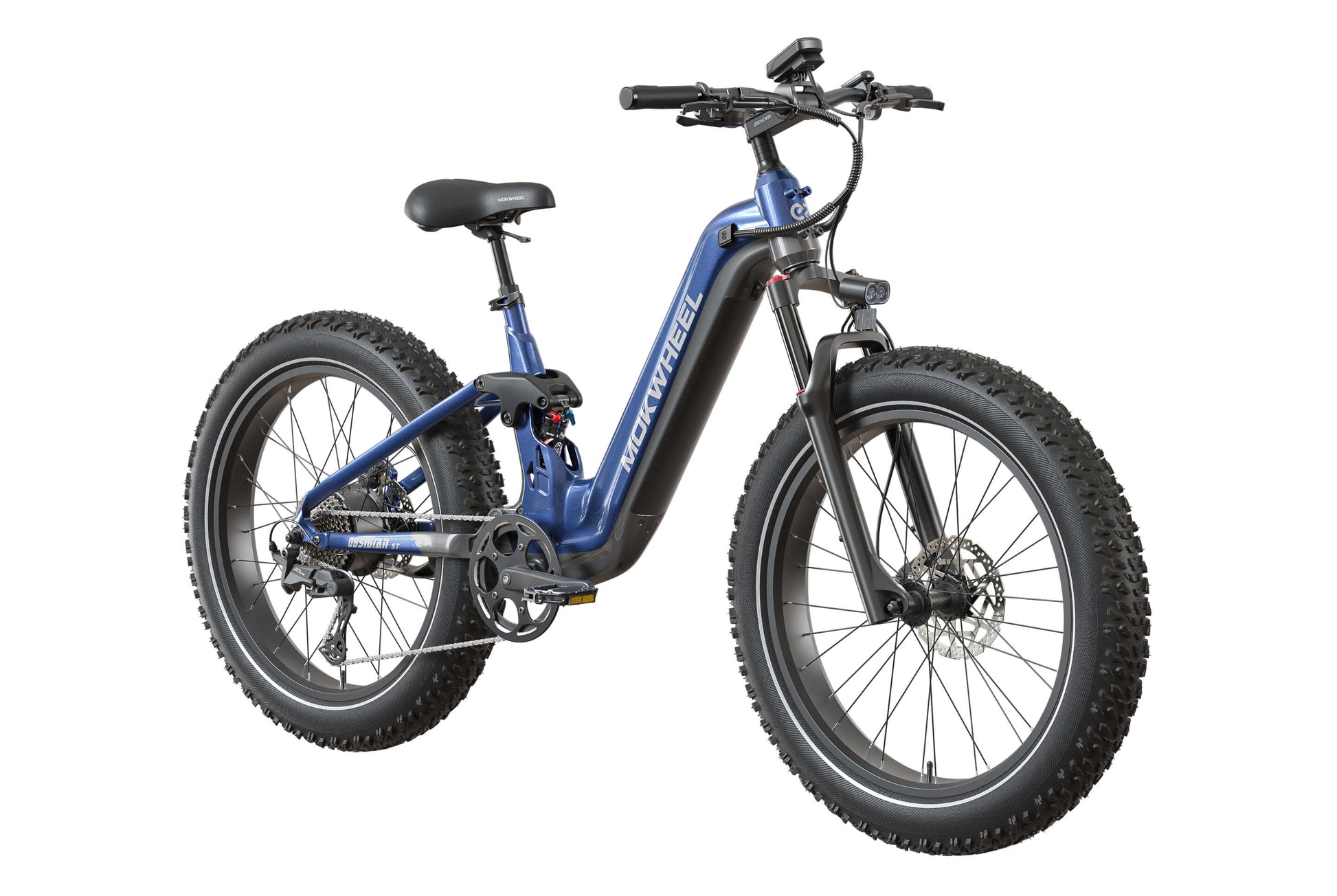

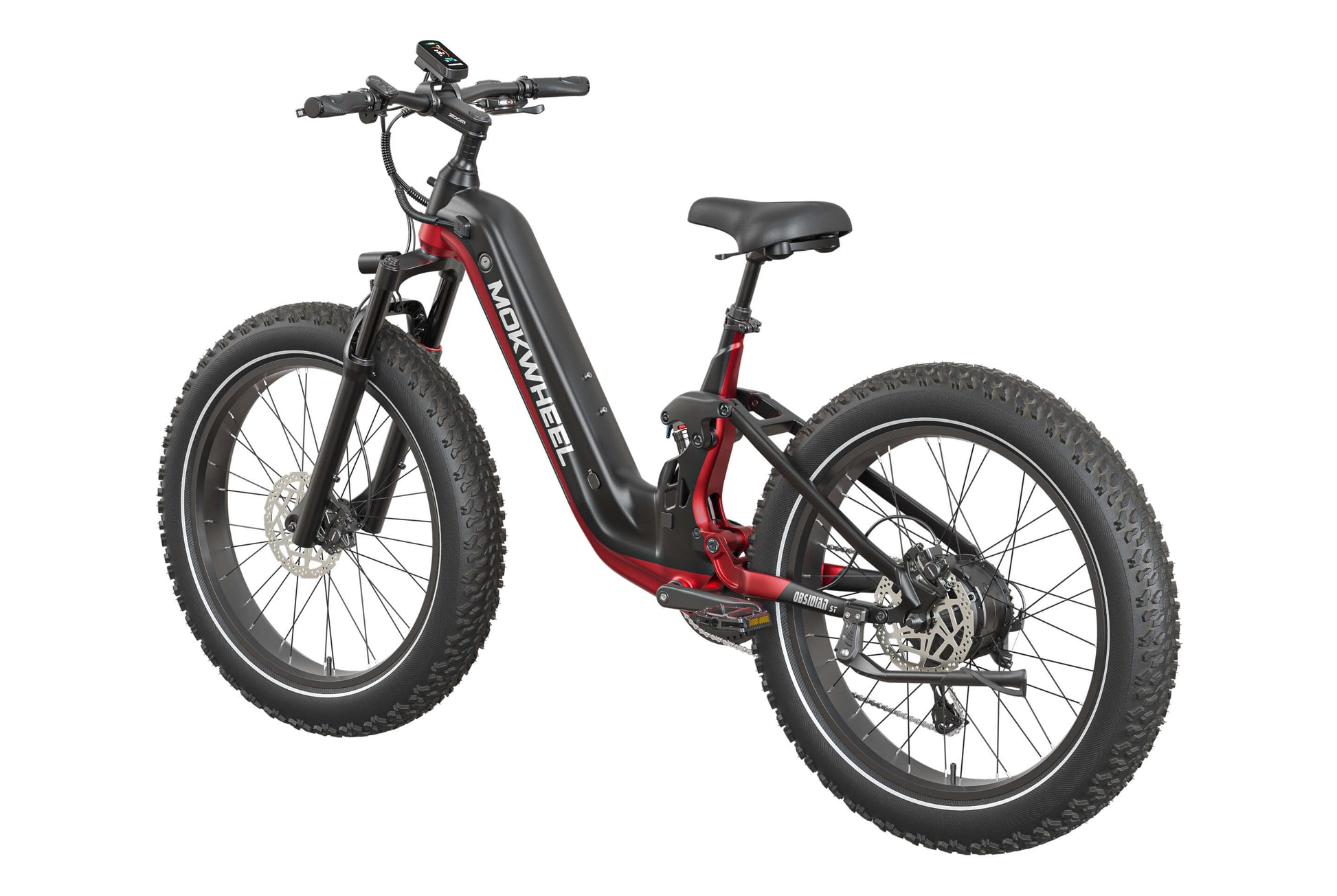

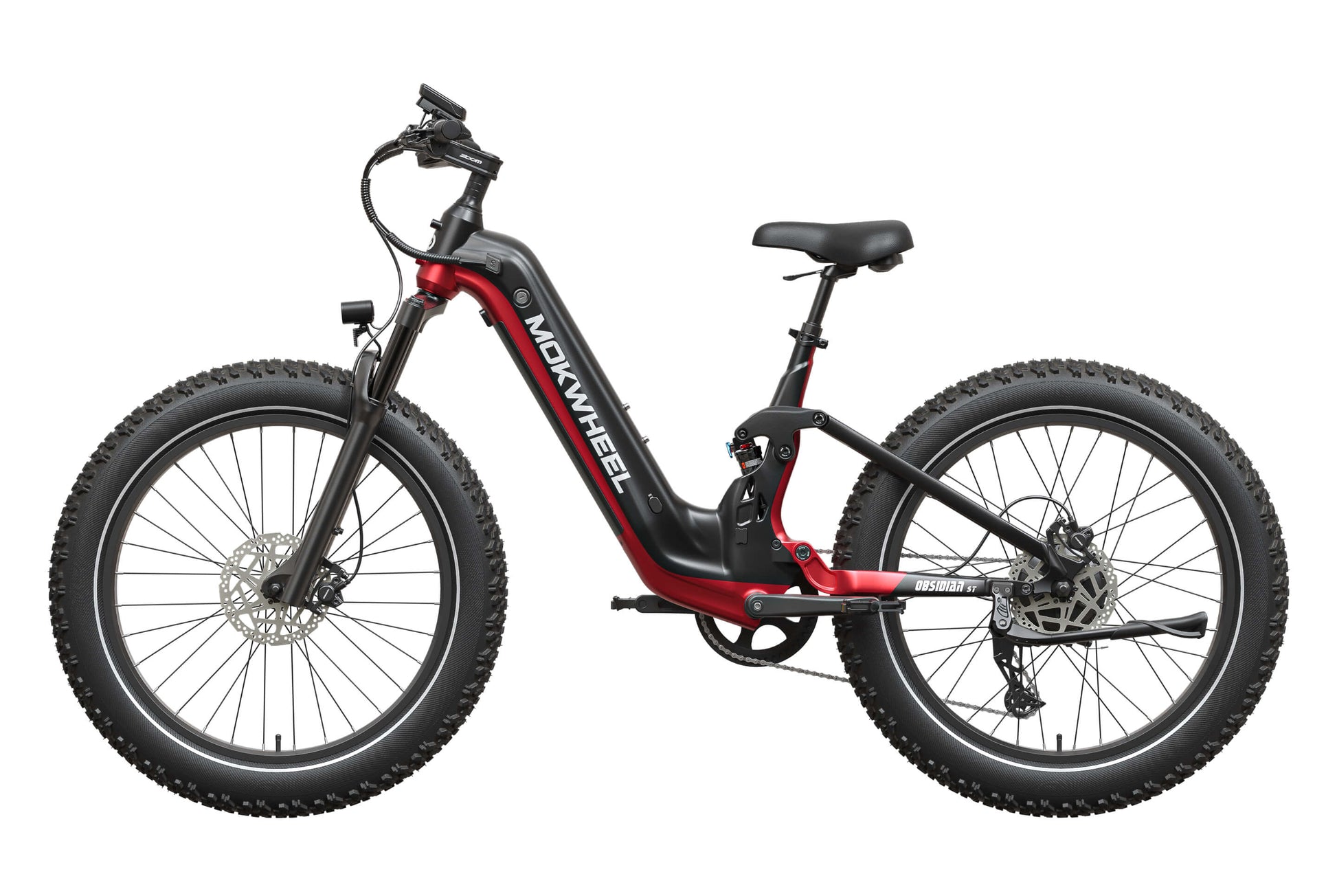

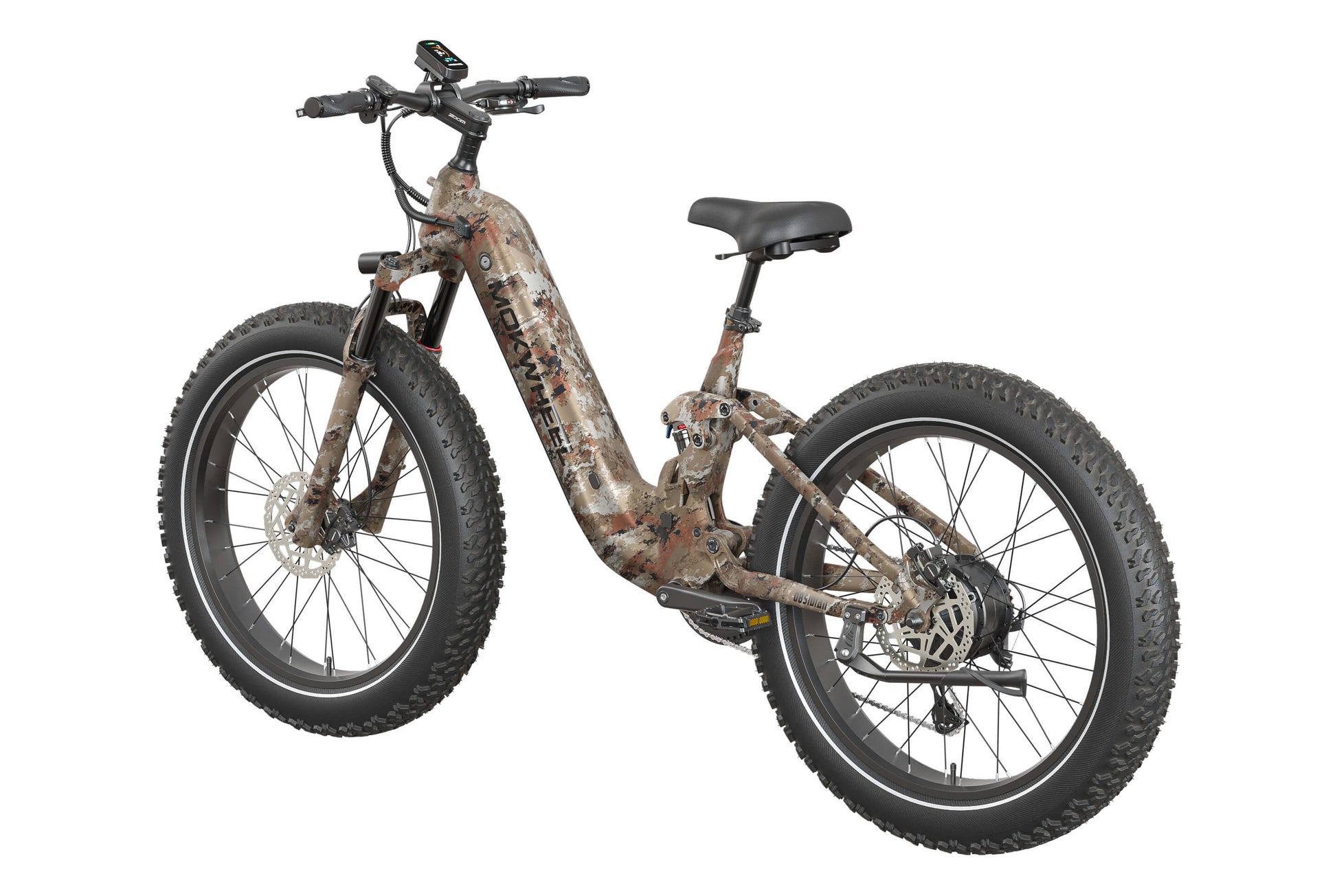

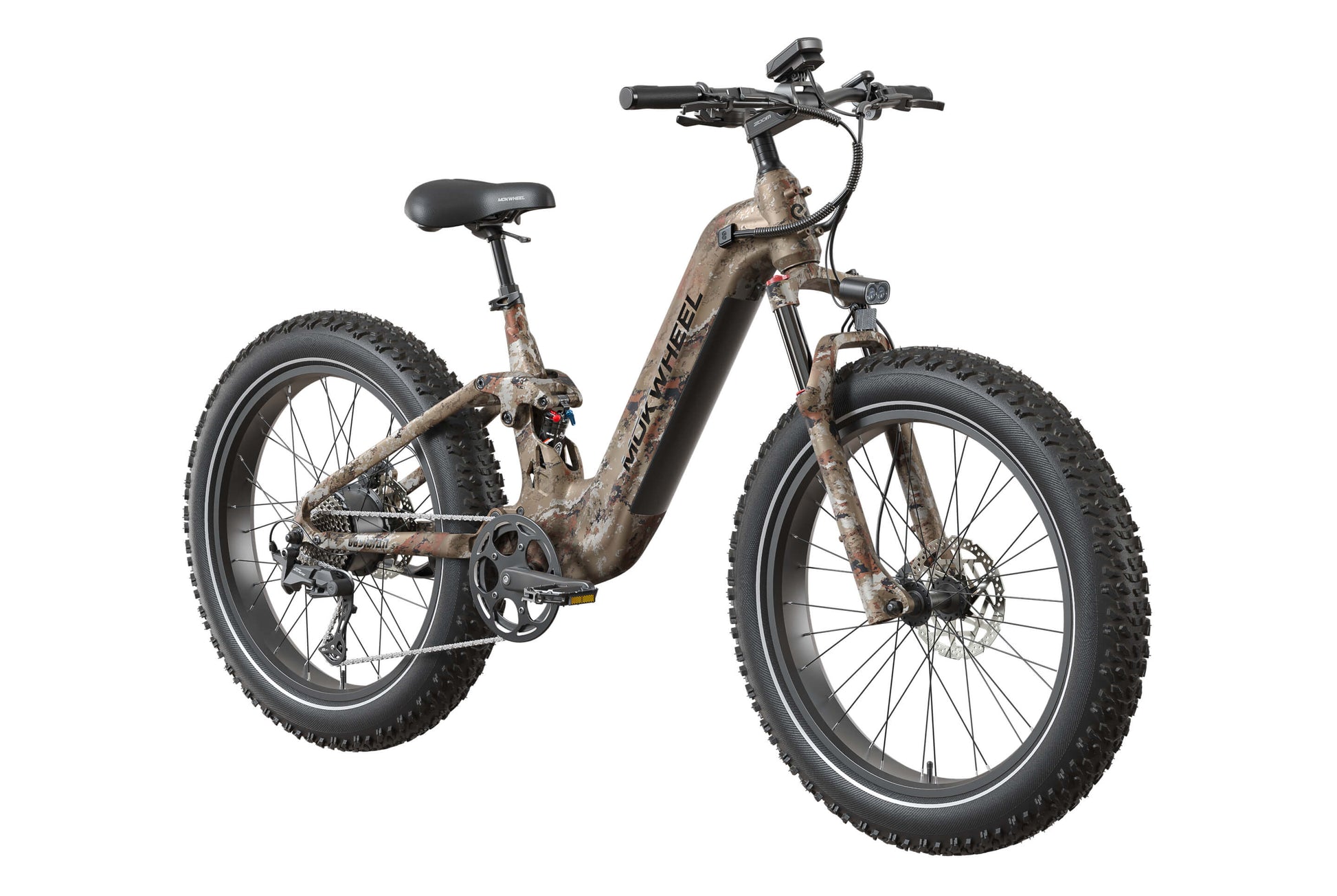

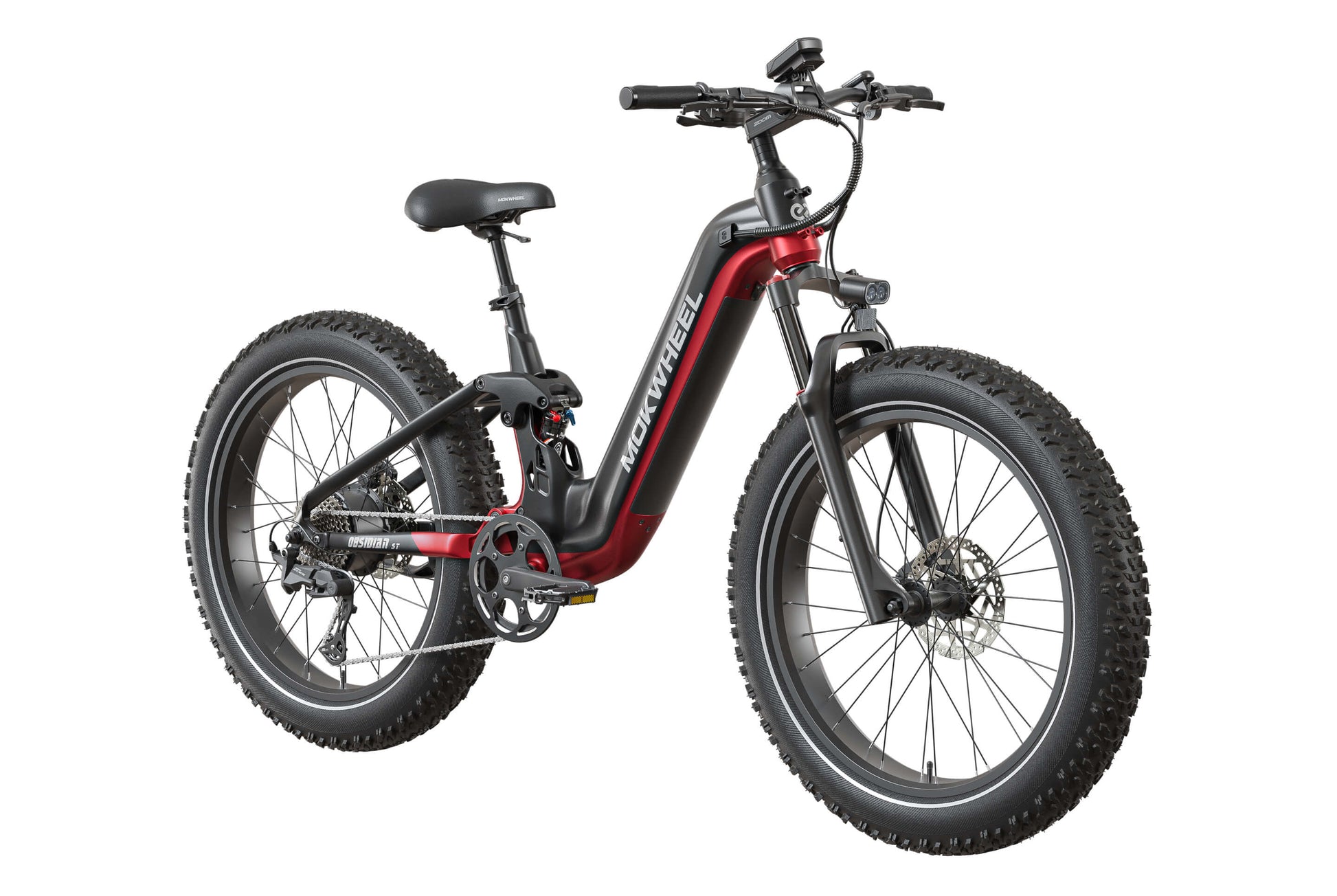

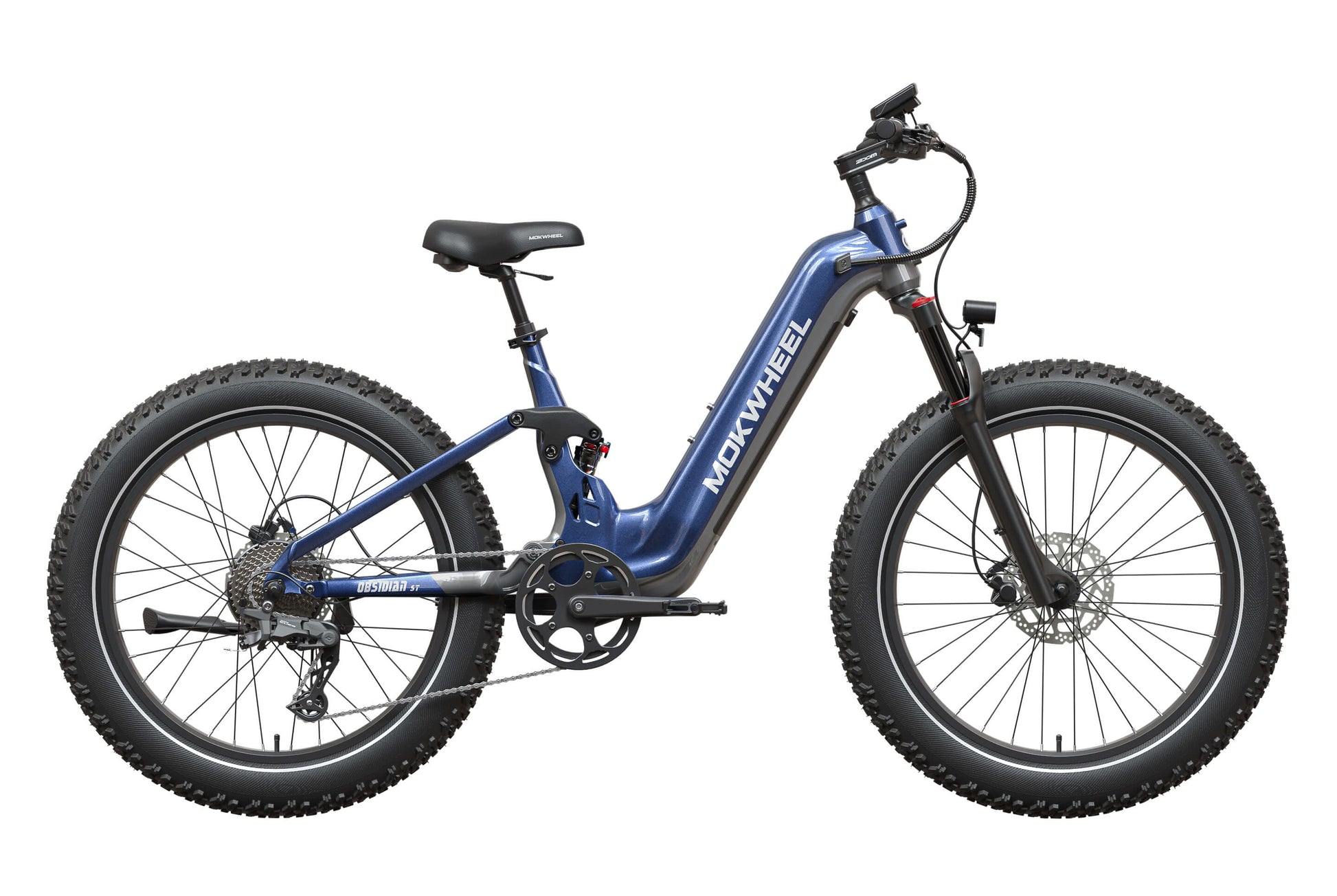

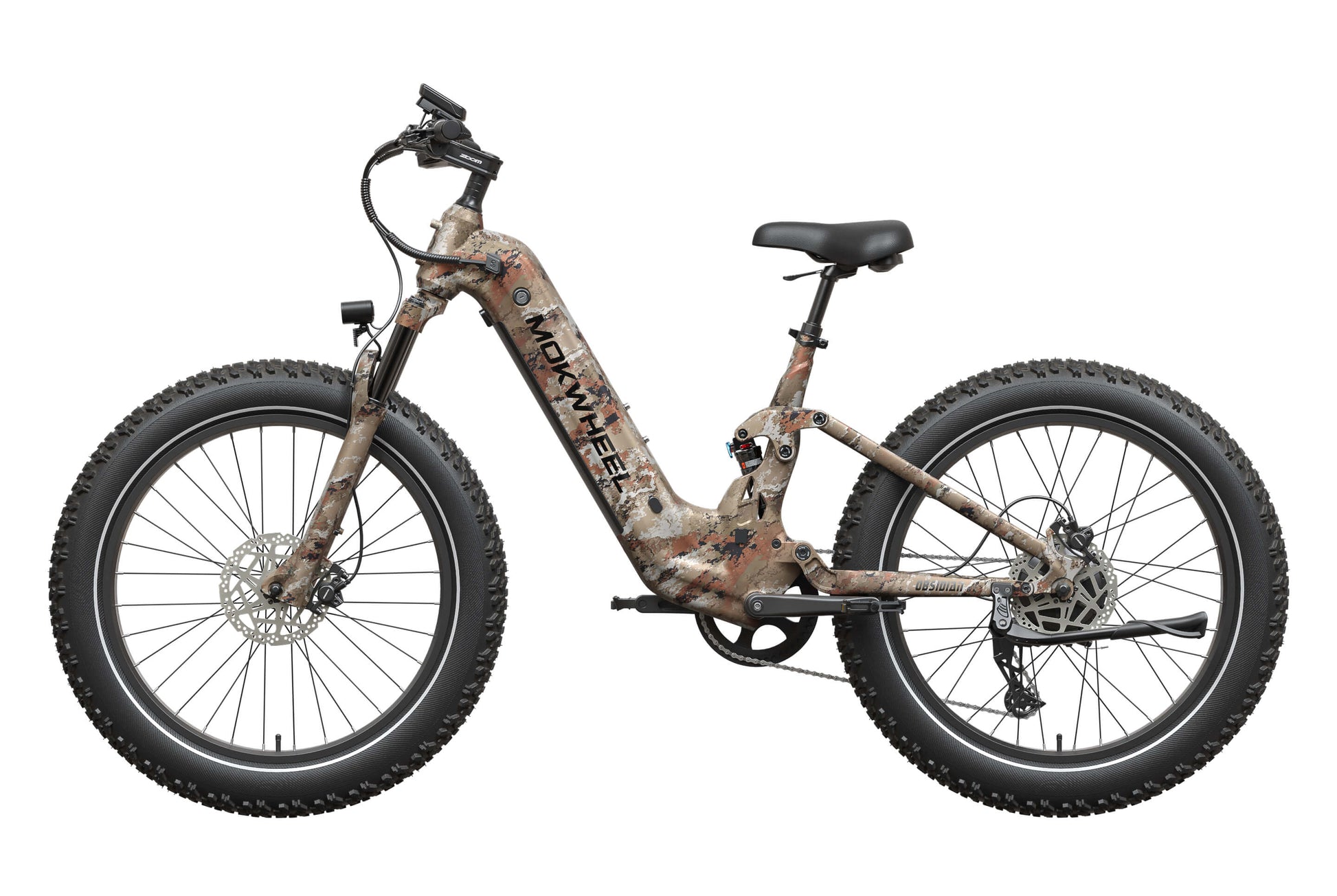

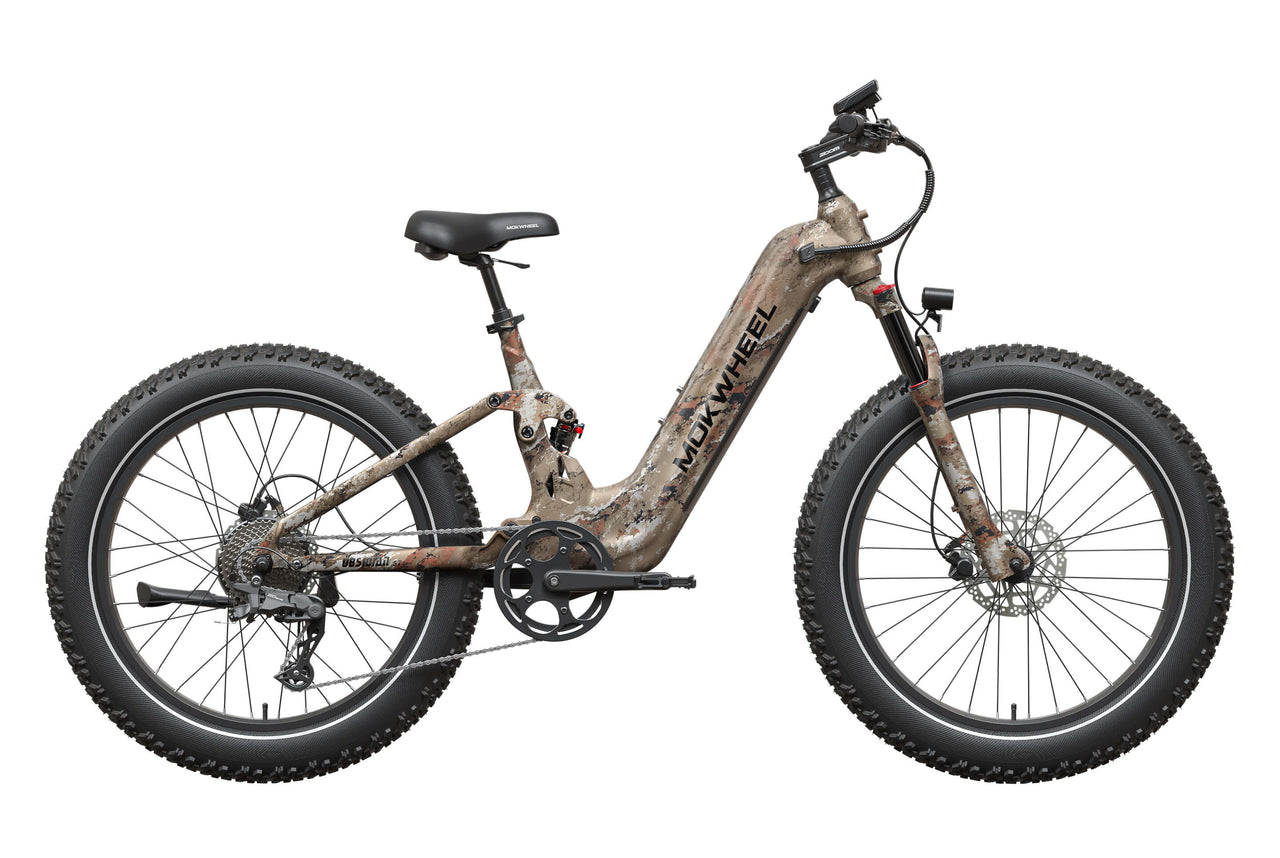

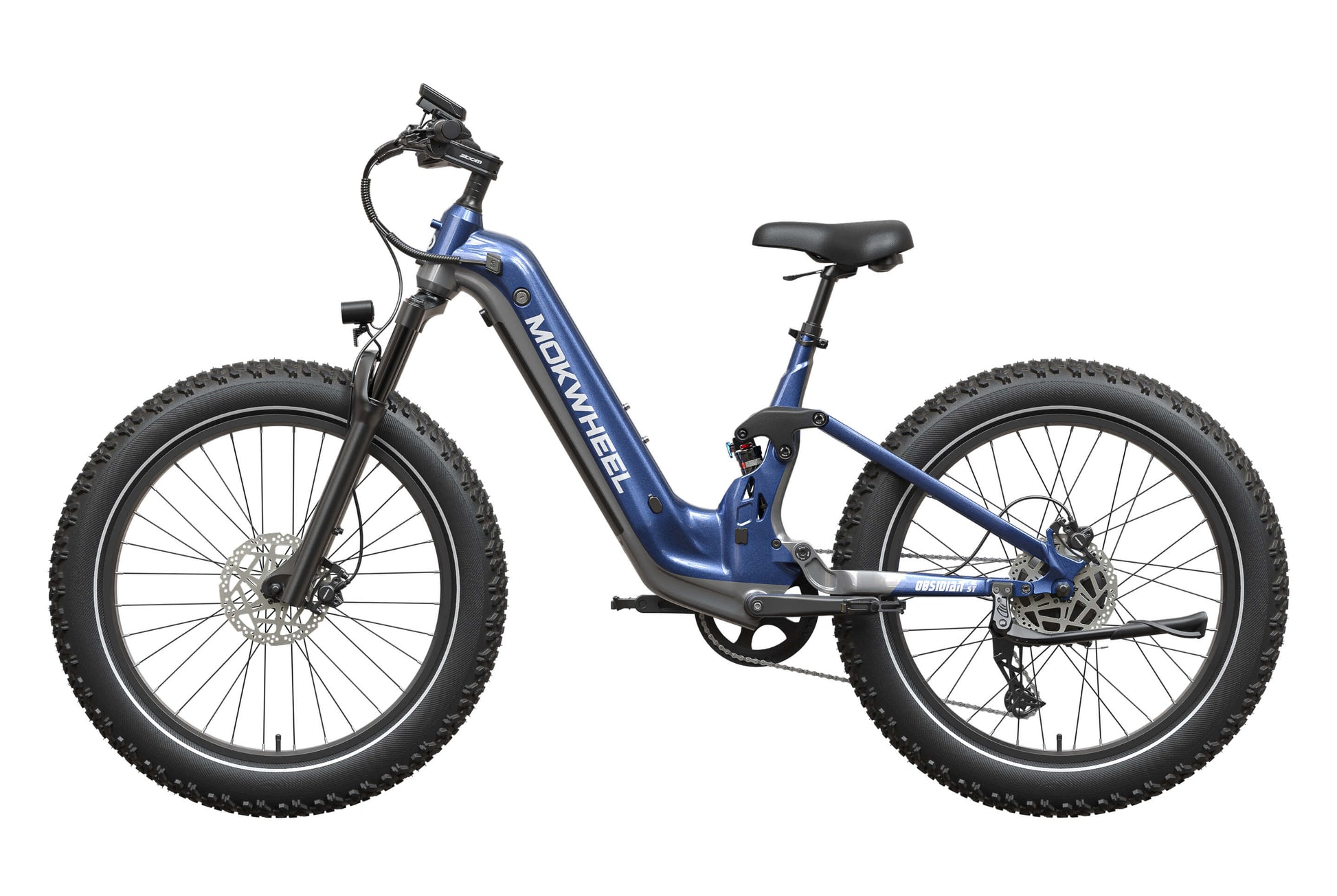

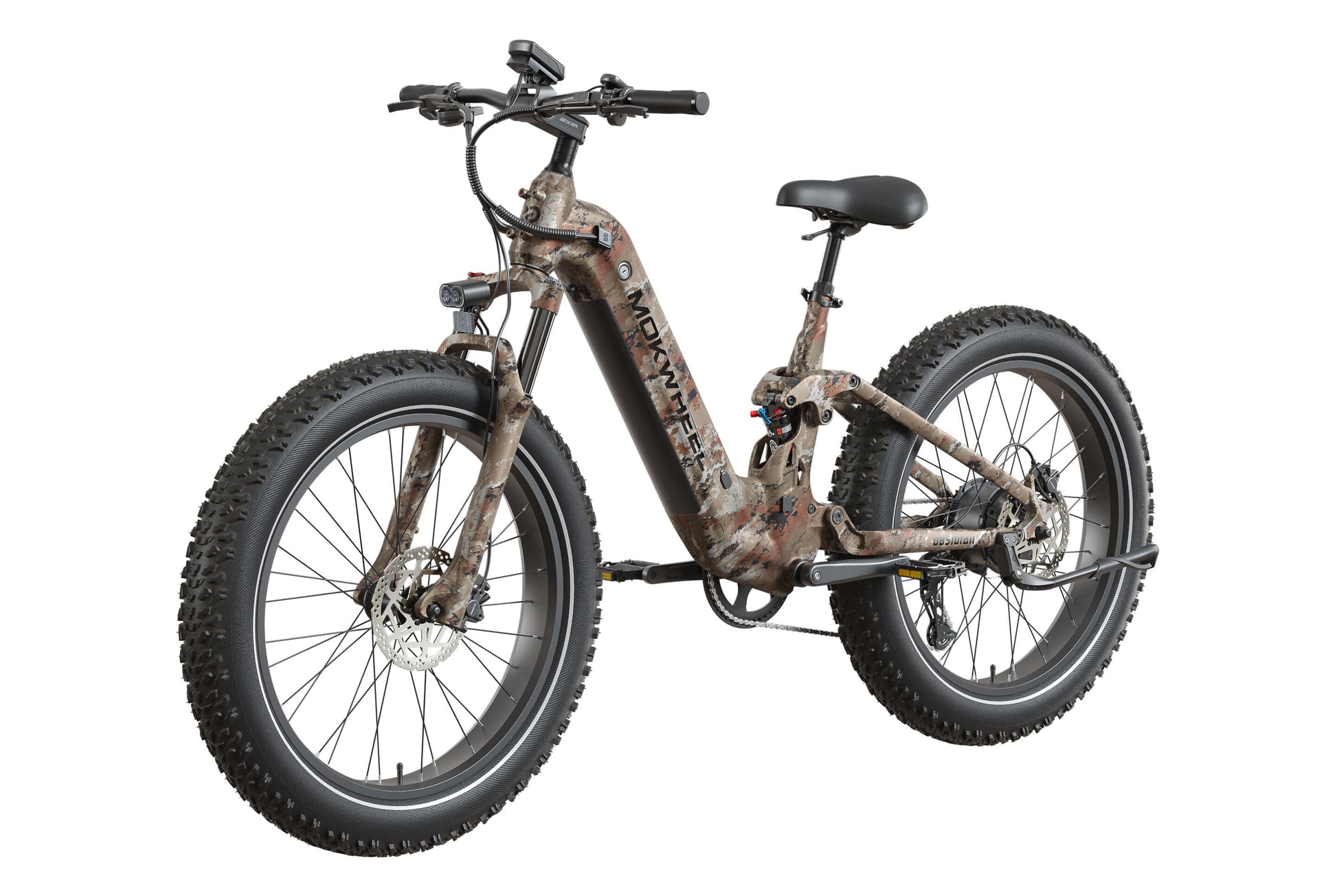

Mokwheel Obsidian ST 2.0 Ebike

Obsidian ST 2.0 Ebike

Designed for Every Rider
The Obsidian ST 2.0 is built in one versatile size to fit most adults, ensuring comfort and control for riders between 5 feet 6 inches and 6 feet 8 inches.

• Reach: 19 inches

• Top Tube Length: 25 inches

• Standover Height: 20 inches

• Wheelbase: 50 inches

• Saddle Height: 35 to 41 inches

• Total Length: 79 inches

• Head Tube Length: 6 inches

Power and Performance
Experience effortless riding with a powerful motor and long-lasting battery:

• Battery: 48V 19.6Ah, UL certified

• Charger: 48V 3A

• Motor: 750W rated, 1000W continuous, 1300W peak, Torque 105Nm+

• Speed: 20 mph (Throttle) / 28 mph (Pedal Assist)

• Weight: 77 lbs

• Range: 60–80 miles

• Payload Capacity: 560 lbs

Ride with Confidence
Every component is crafted for durability, comfort, and control:

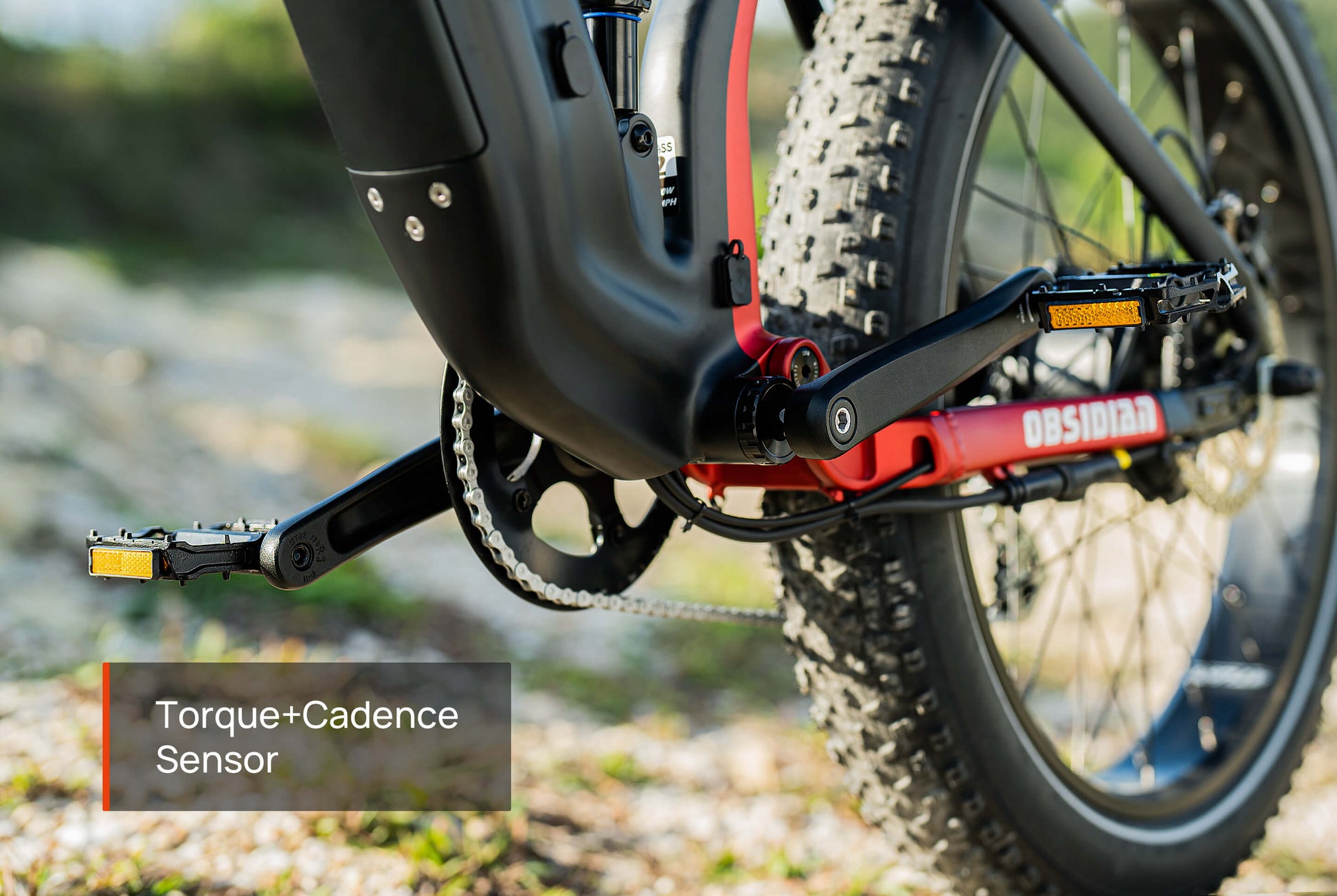

• Sensor: Torque and cadence

• Brakes: TEKTRO hydraulic disc brakes

• Tires: 26" x 4.0" puncture-resistant fat tires

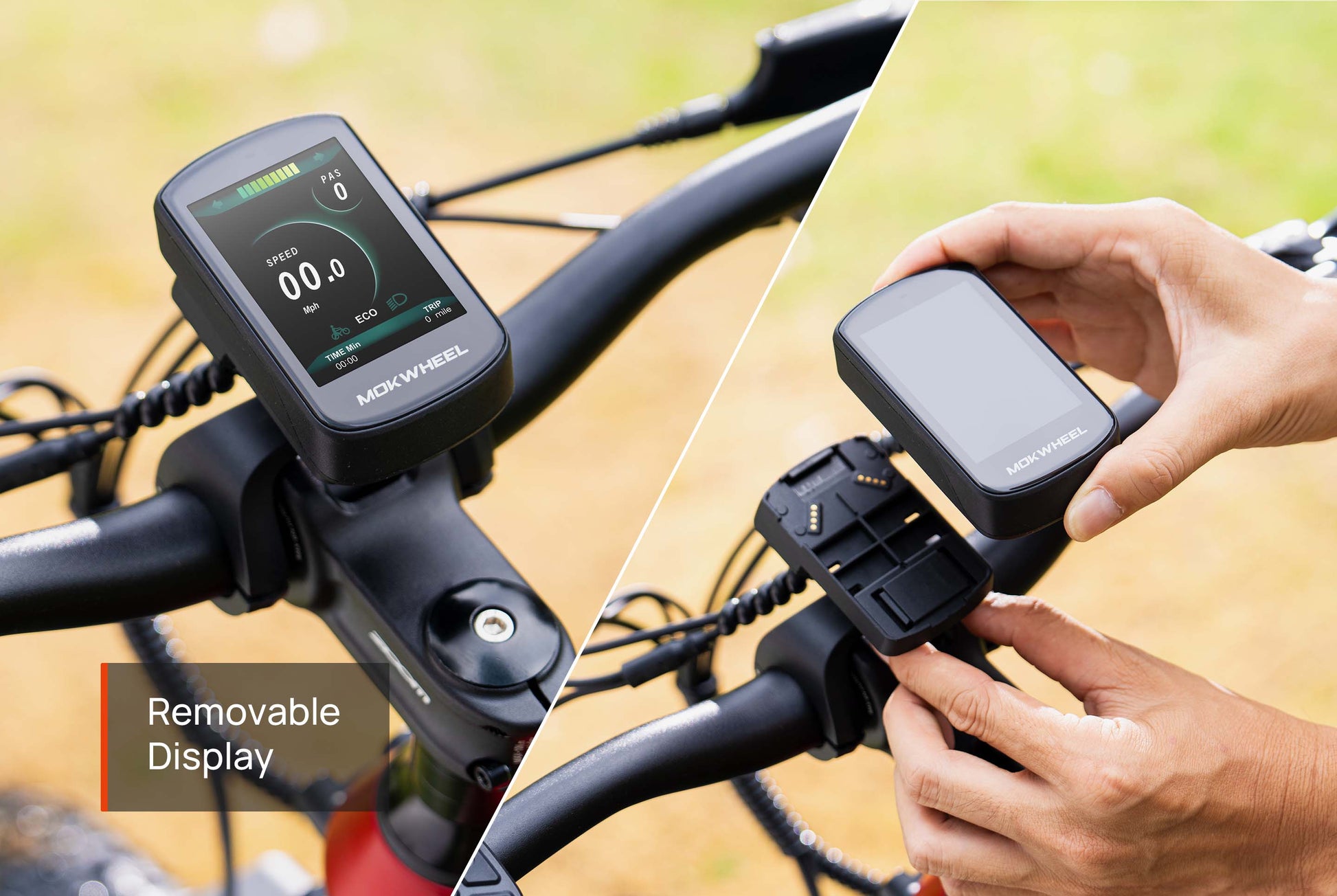

• Display: Detachable high-definition display

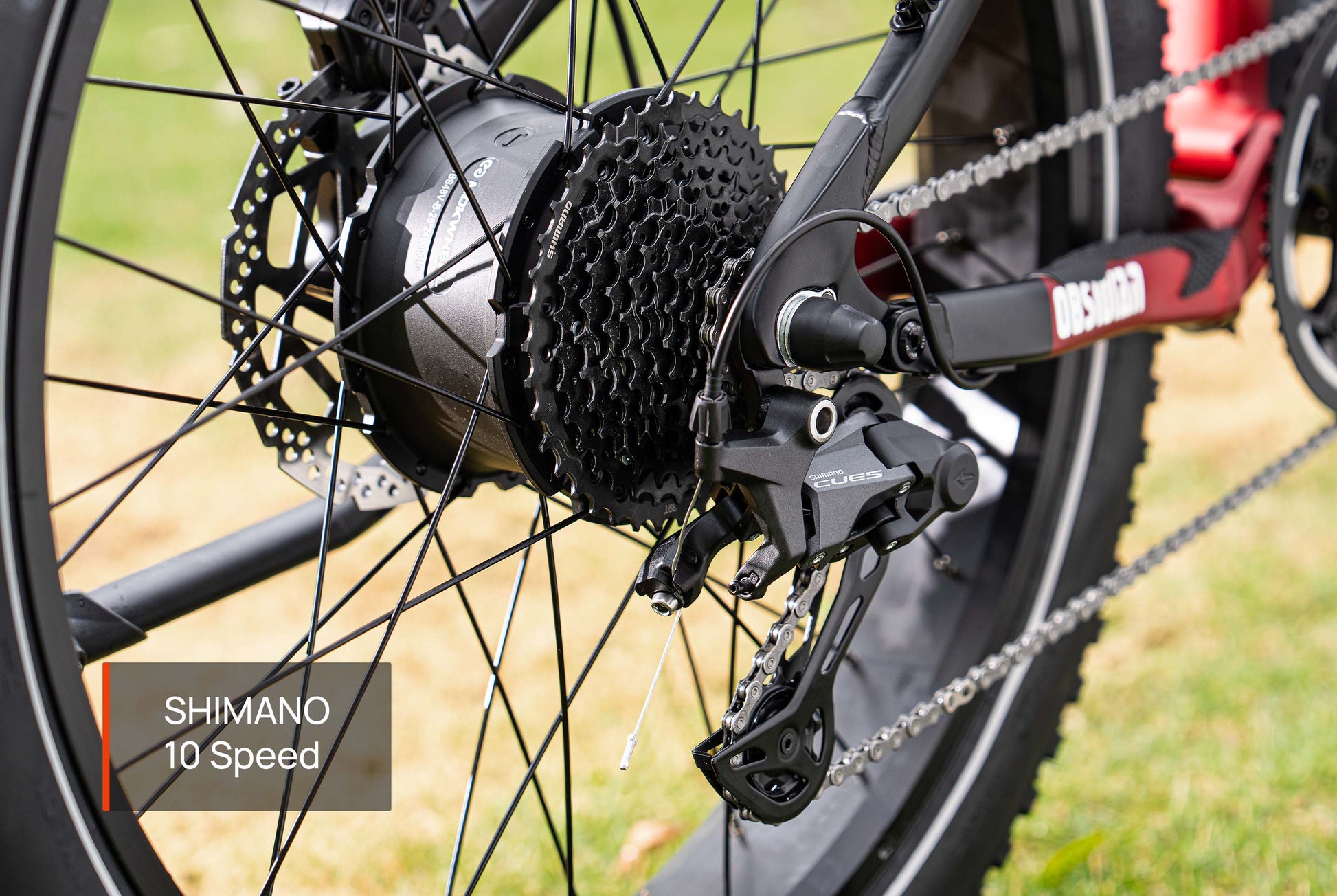

• Gearing: Shimano 10-speed with rear derailleur

• Chain: KMC stainless steel

• Crankset: 46T aluminum alloy

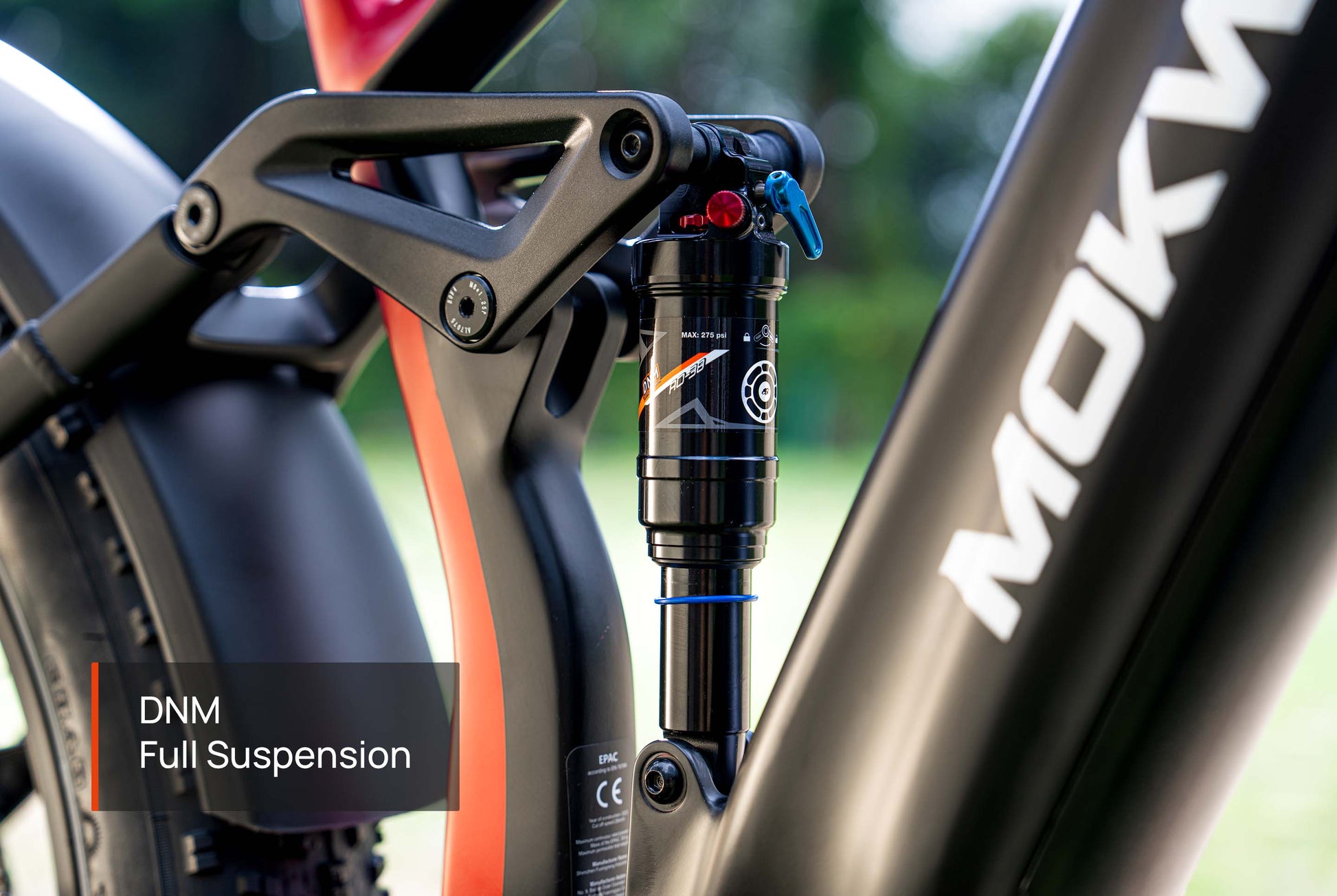

• Front Fork: 130mm adjustable suspension

• Frame: 6061 aluminum alloy with internal battery

• Throttle: Thumb

• Handlebar: 680mm aluminum alloy

• Kickstand: Aluminum

• Rims: Aluminum alloy

• Saddle: Hydraulic two-stage adjustable

• Spokes: Heavy-duty carbon steel, 12G × 248 mm (front) / 216 mm (rear)

Sleek. Powerful. Limitless.
The Obsidian ST 2.0 combines modern design, robust engineering, and cutting-edge components to deliver a ride that is as smooth as it is thrilling.
