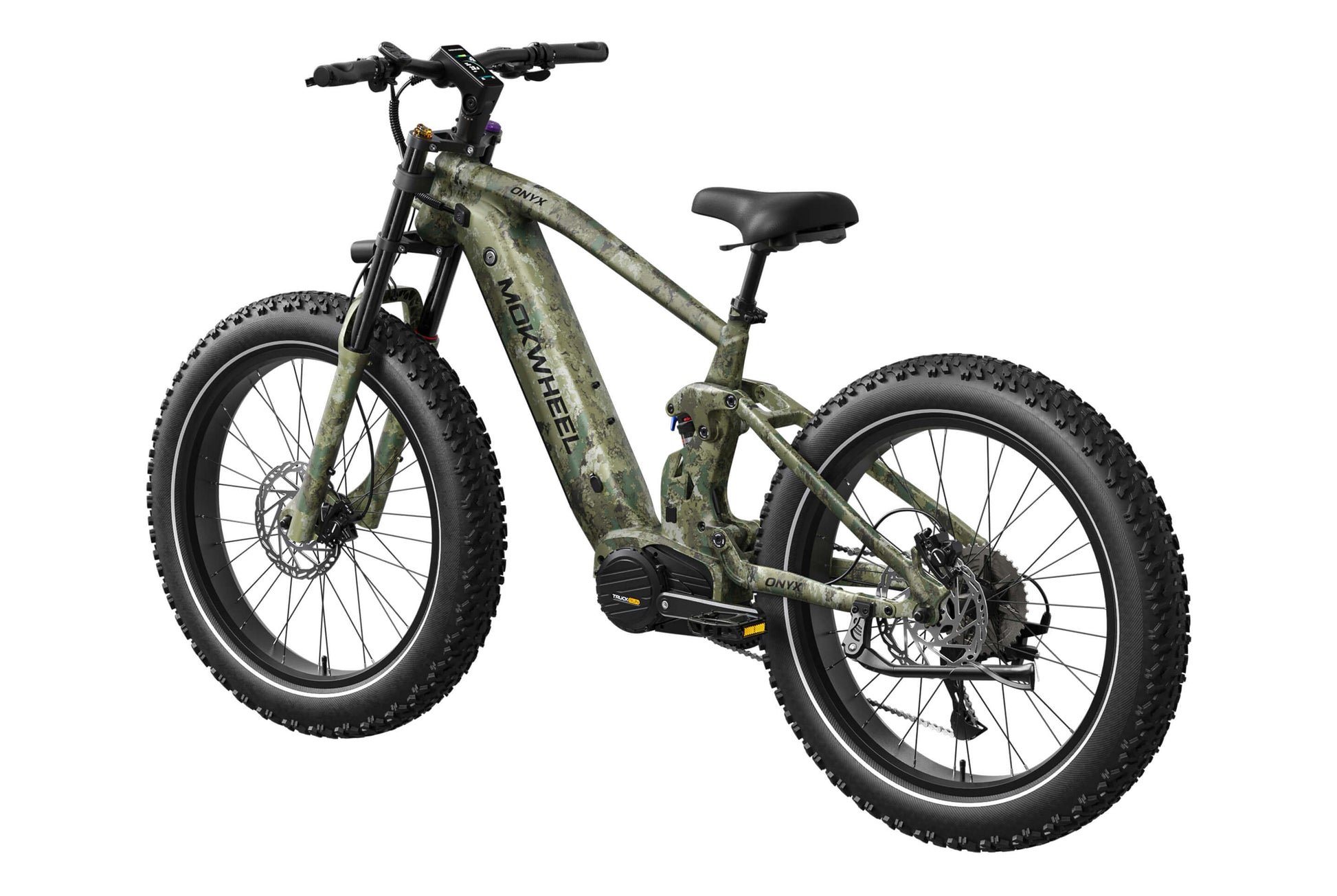

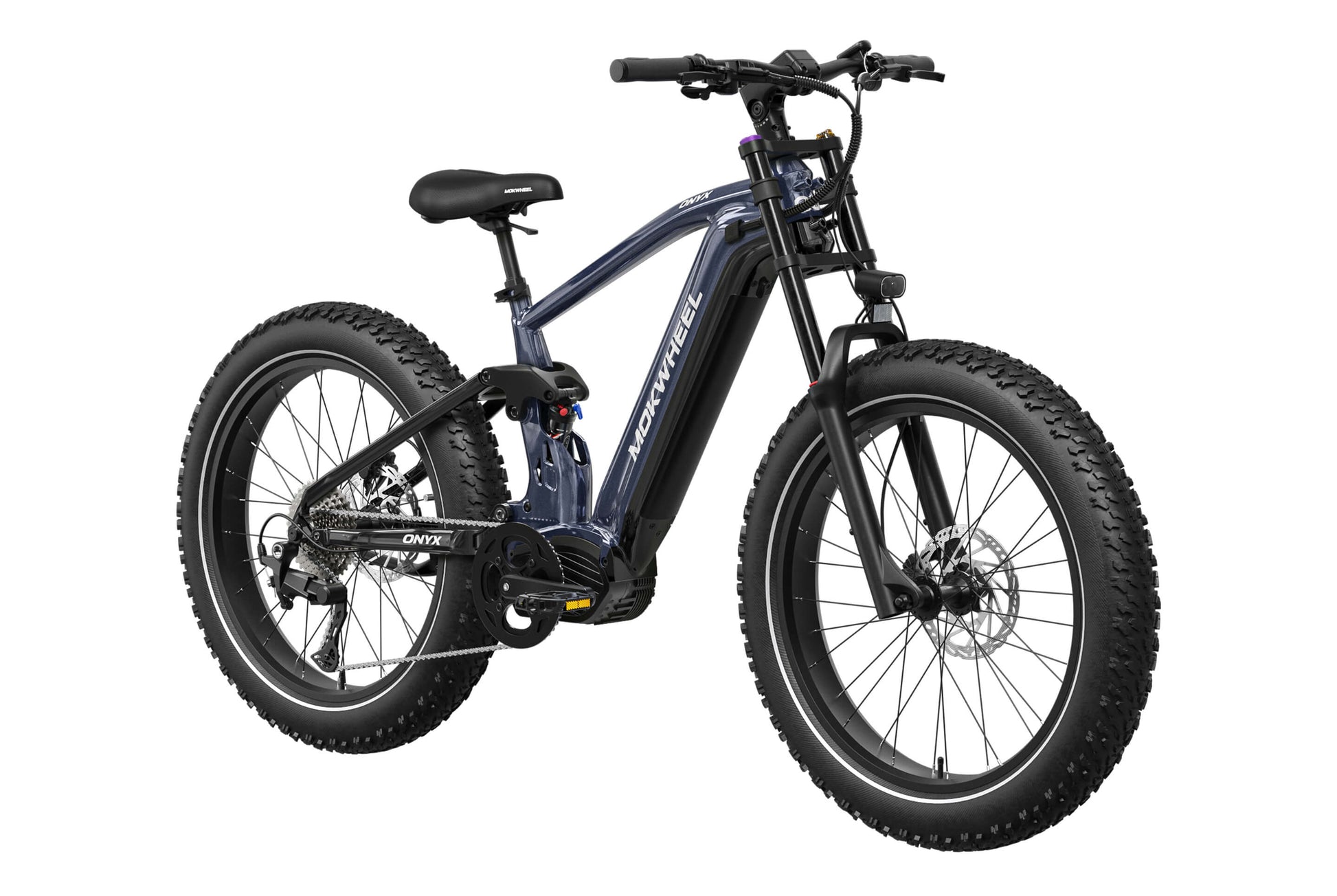

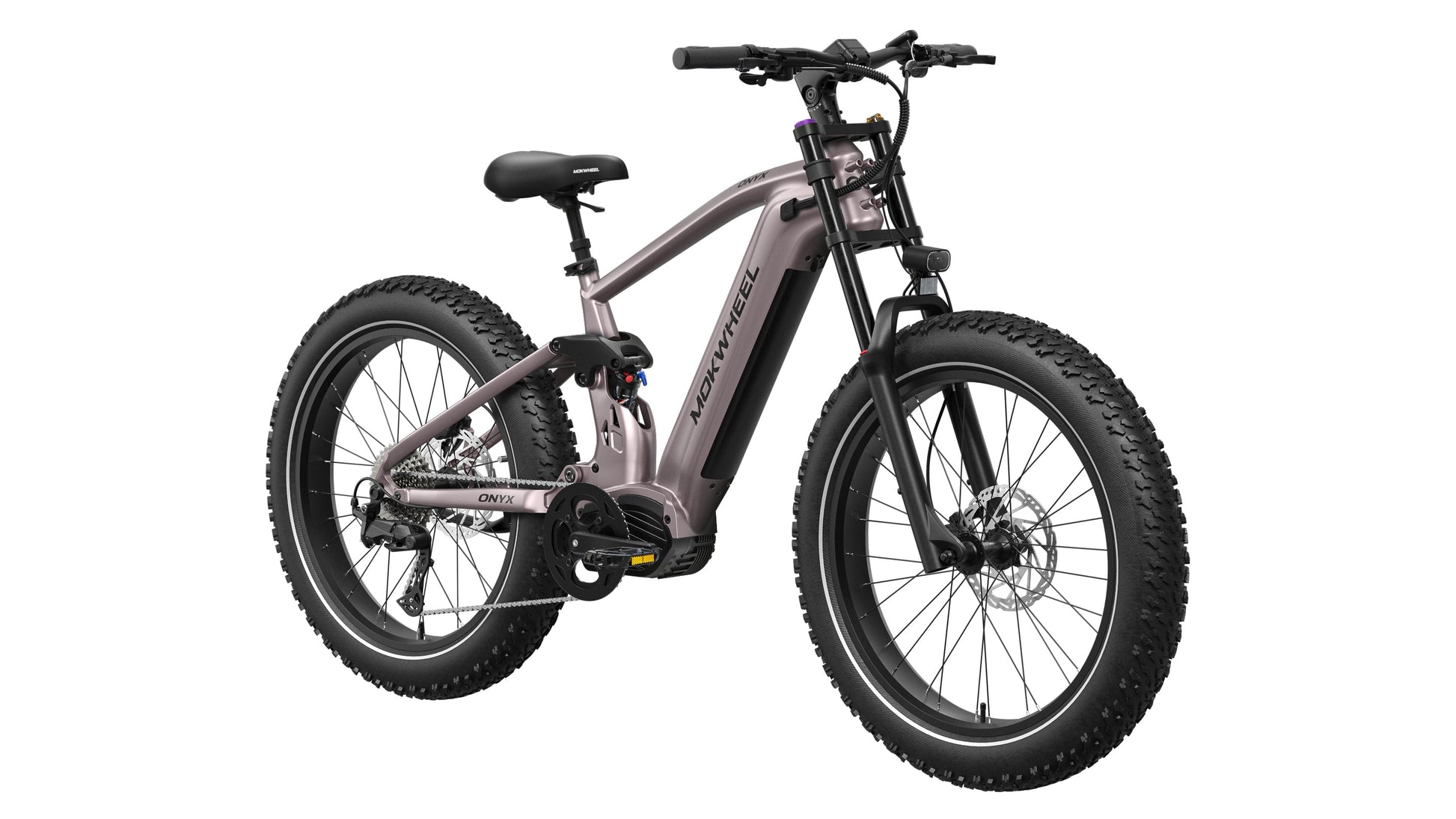

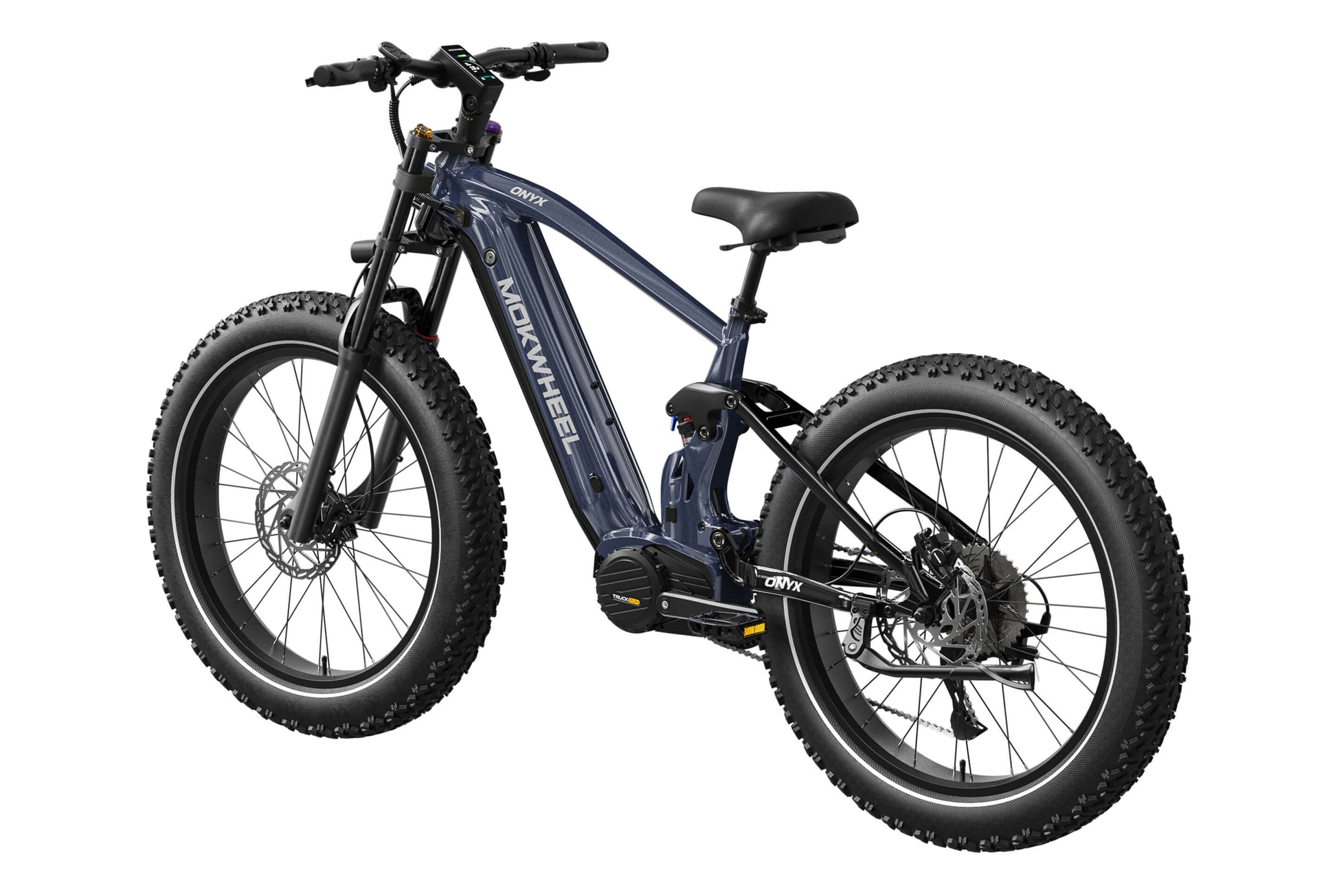

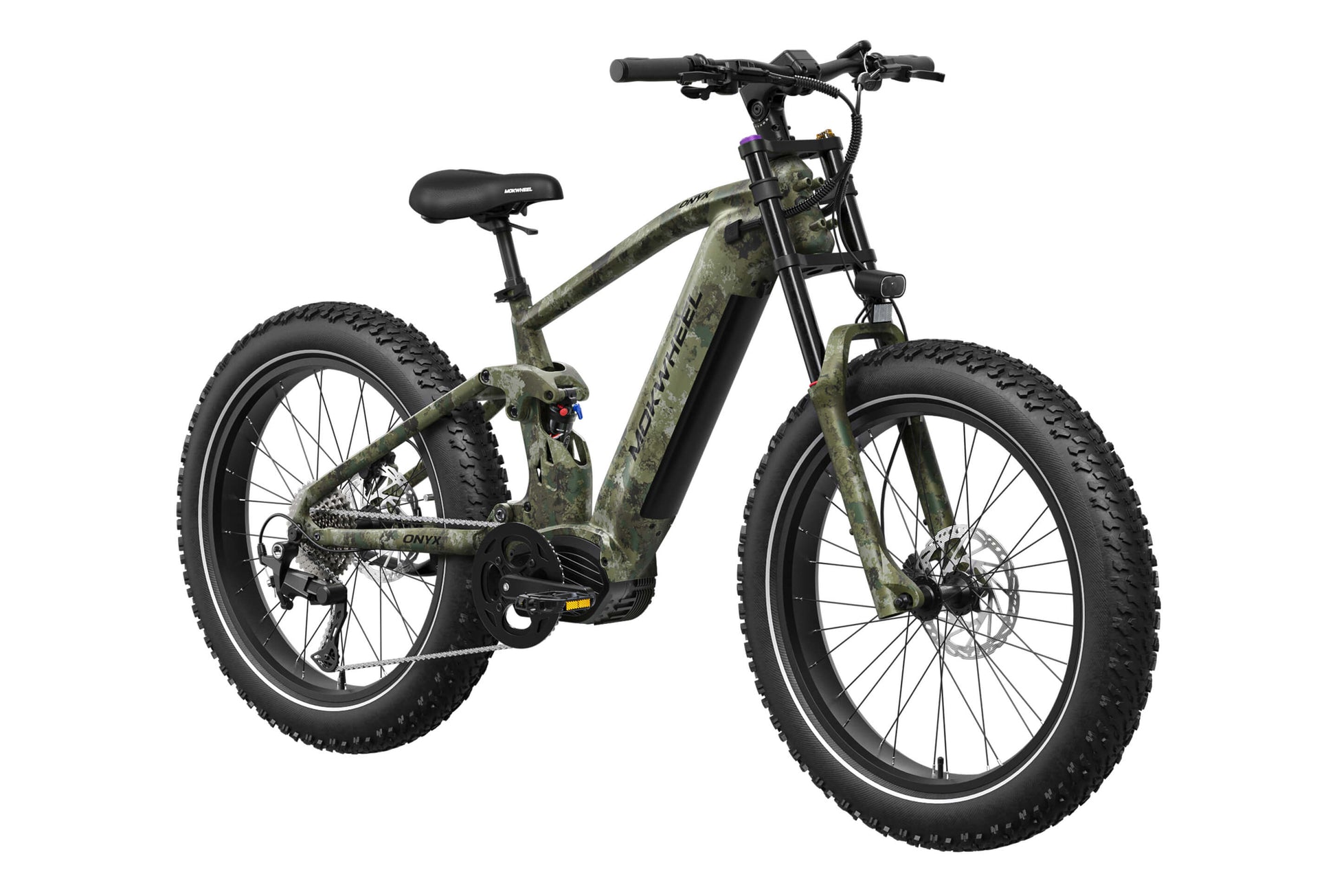

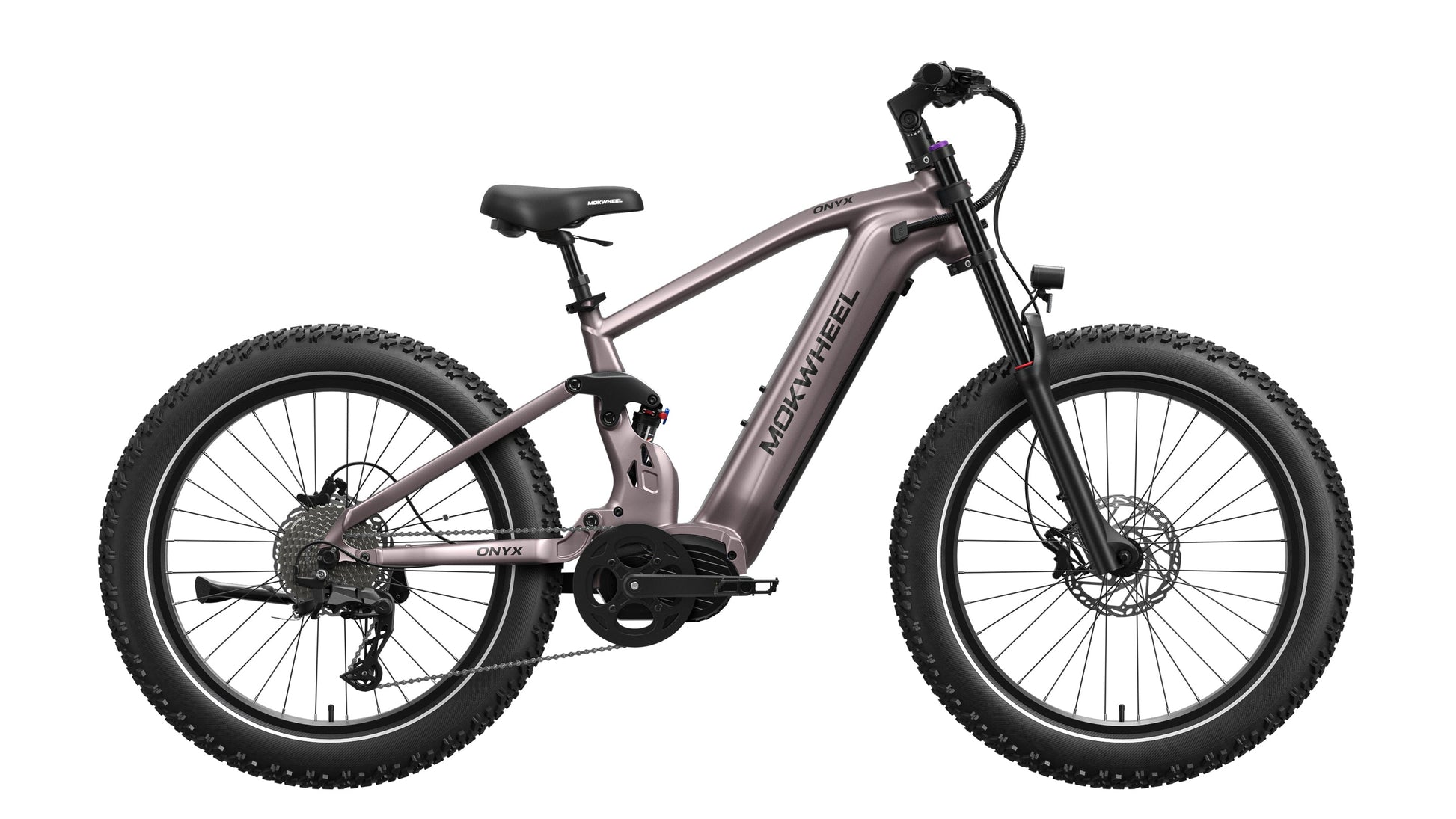

Mokwheel Onyx Ebike

Onyx Ebike

Size and Fit
The Onyx is designed in one versatile size to fit most adults, providing a comfortable and controlled ride for heights between 5'7" and 6'9".

• Reach: 19 inches

• Top Tube Length: 25 inches

• Standover Height: 31 inches

• Wheelbase: 50 inches

• Minimum Saddle Height: 35 inches

• Maximum Saddle Height: 41 inches

• Total Length: 79 inches

• Head Tube Length: 6 inches

Technical Specifications
Engineered for power, performance, and long-range riding:

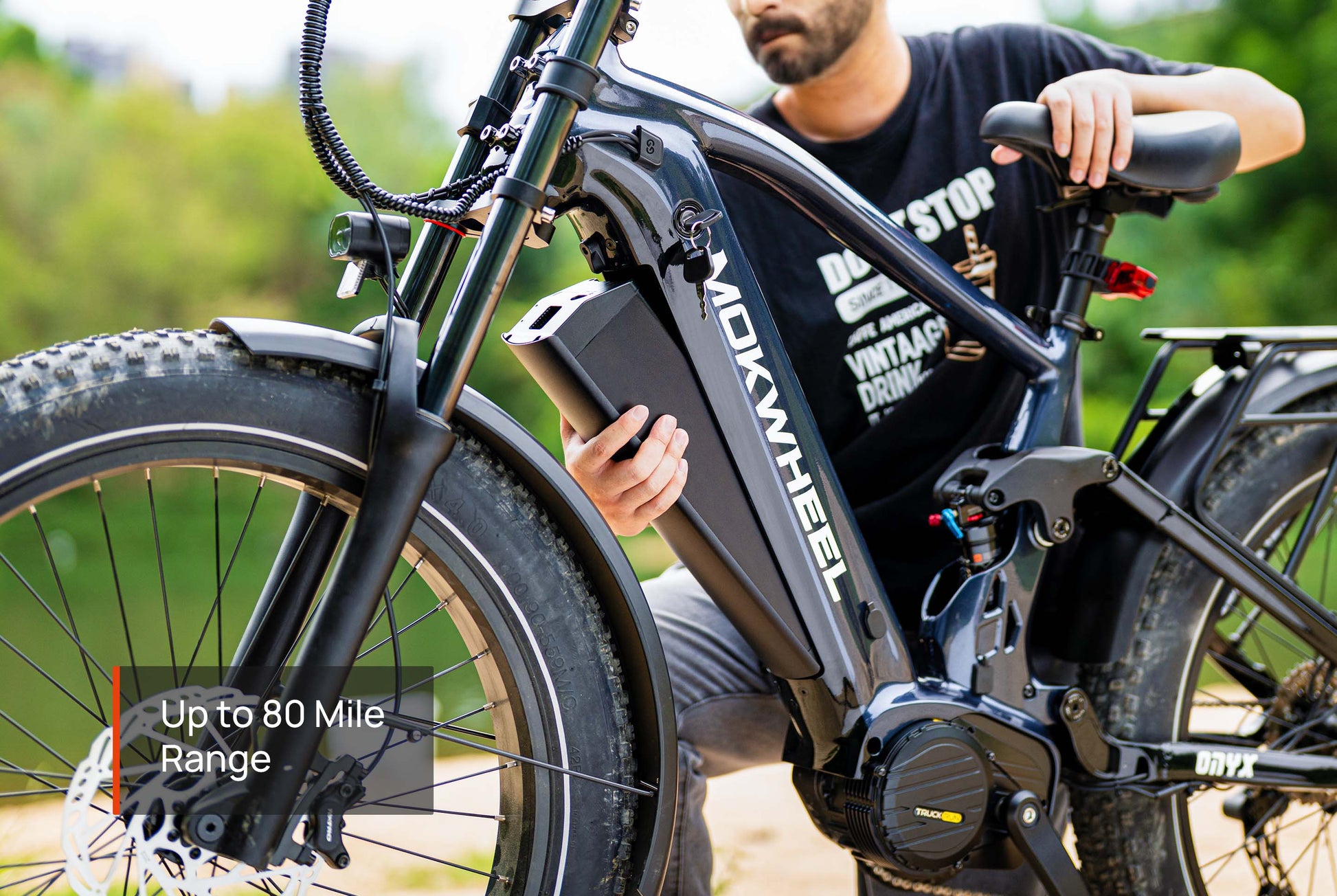

• Battery: 48V 19.6Ah, UL certified

• Charger: 48V 3A

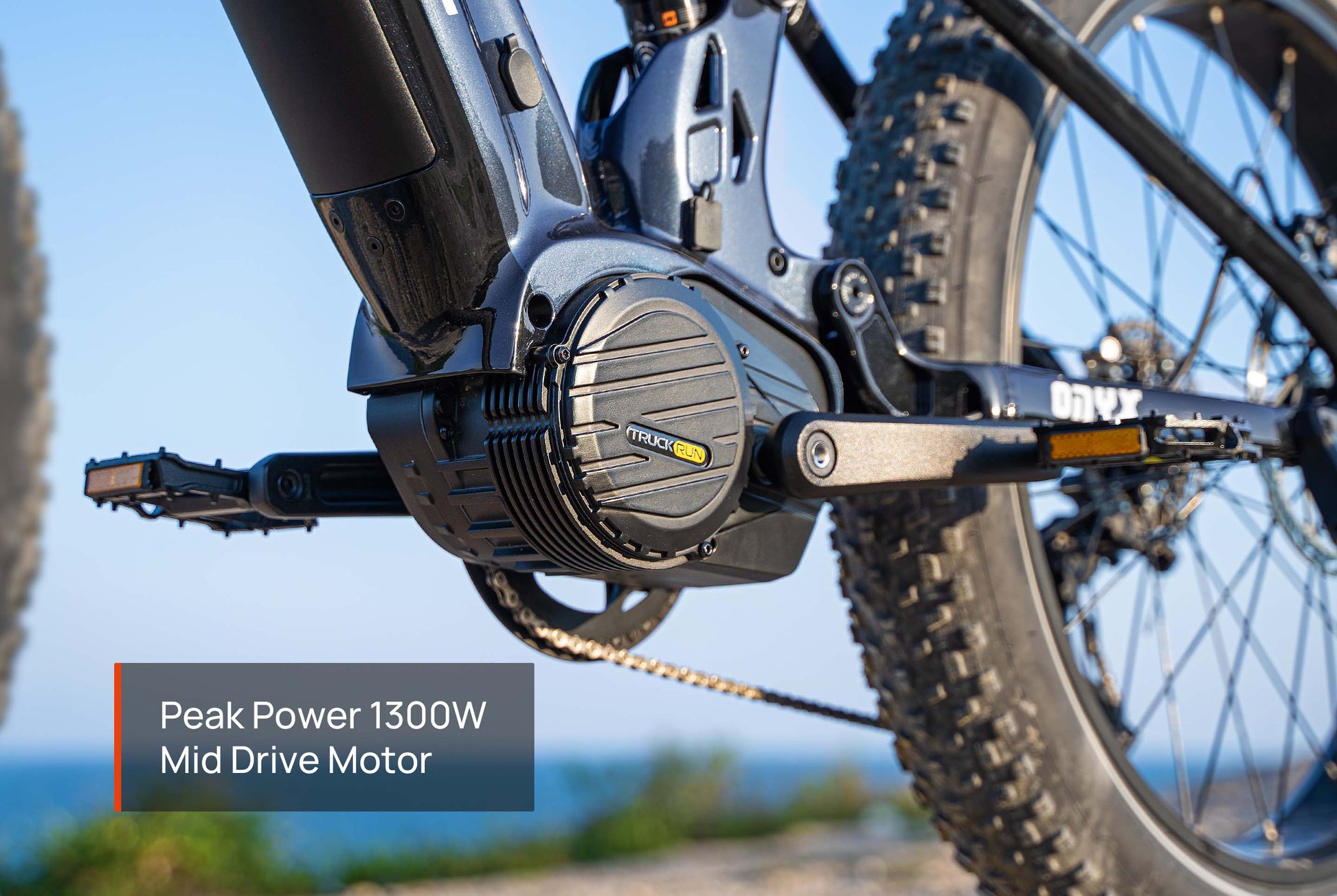

• Motor: Mid-drive, Rated 750W, Continuous 1000W, Peak 1300W, Torque 210Nm+

• Speed: 20 mph with throttle, 28 mph with pedal assist

• Weight: 89 lbs

• Range: 60–80 miles

• Payload Capacity: 560 lbs

Performance and Handling
Every component is designed for precision, durability, and control:

• Sensor: Torque and cadence sensor

• Brakes: Tektro HD-E3940 4-piston hydraulic brakes

• Tires: 26" x 4.0" puncture-resistant fat tires

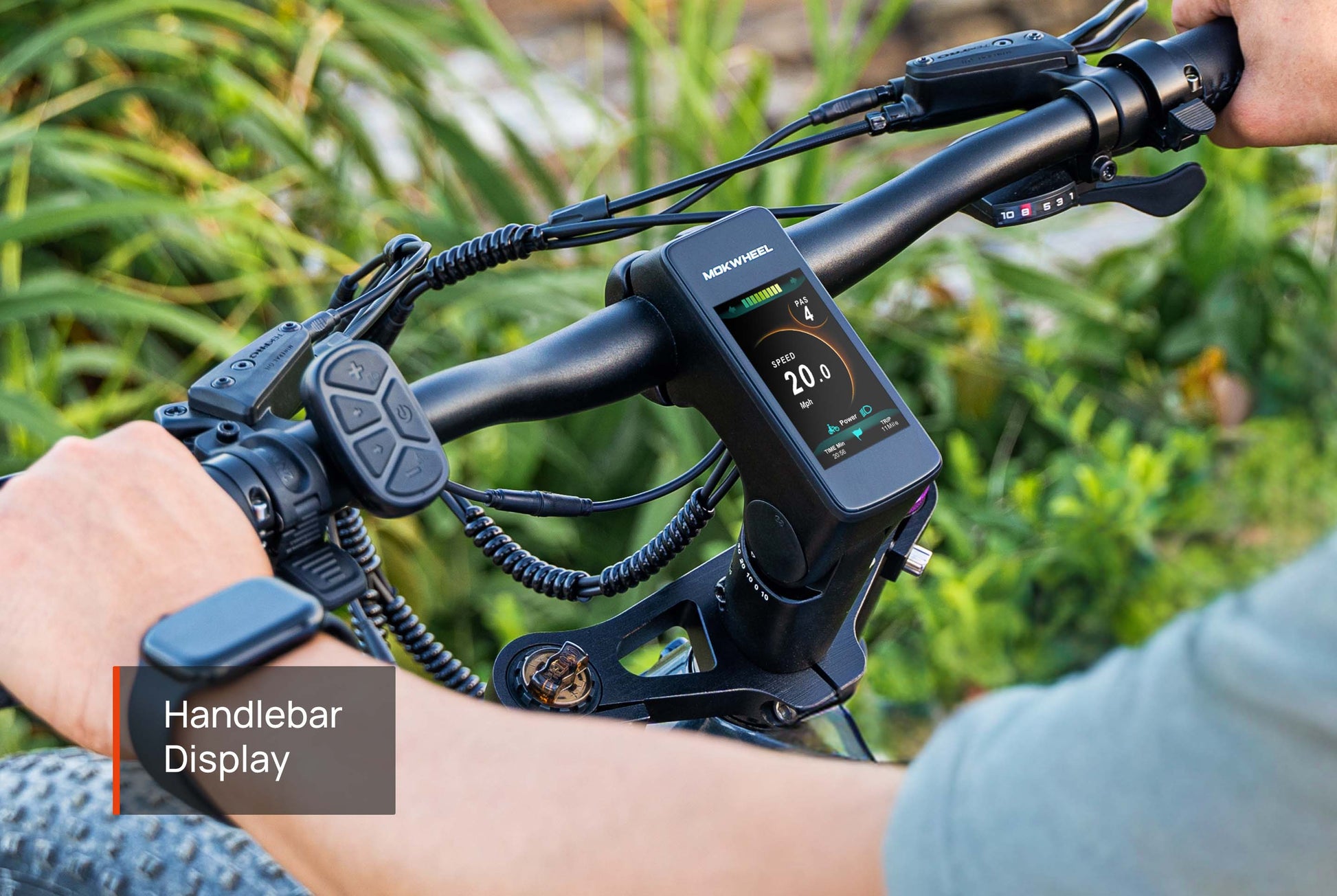

• Display: HD stem display

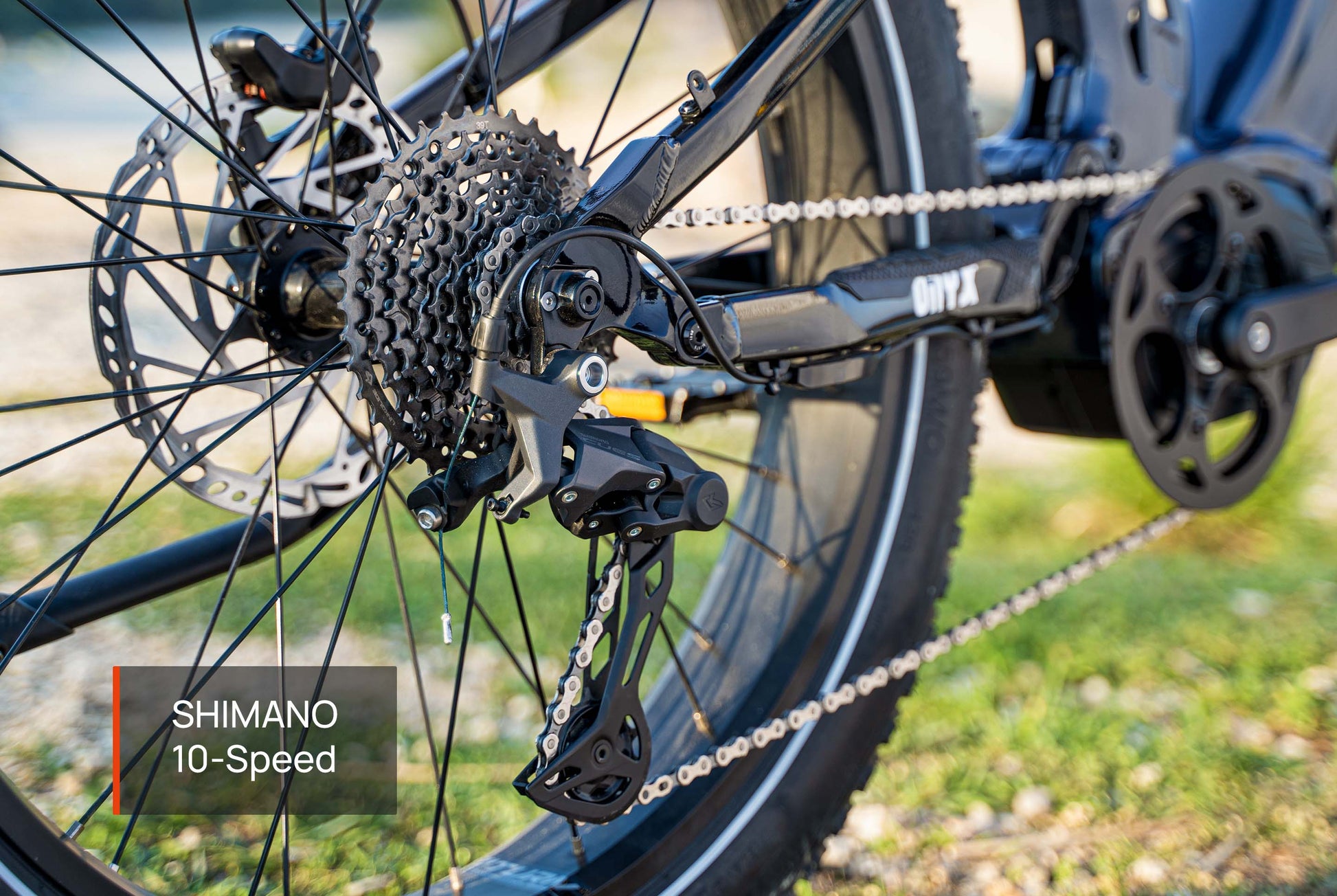

• Gearing: Shimano 10-speed

• Derailleur: Shimano 10-speed rear

• Chain: KMC stainless steel

• Crankset: 44T aluminum alloy

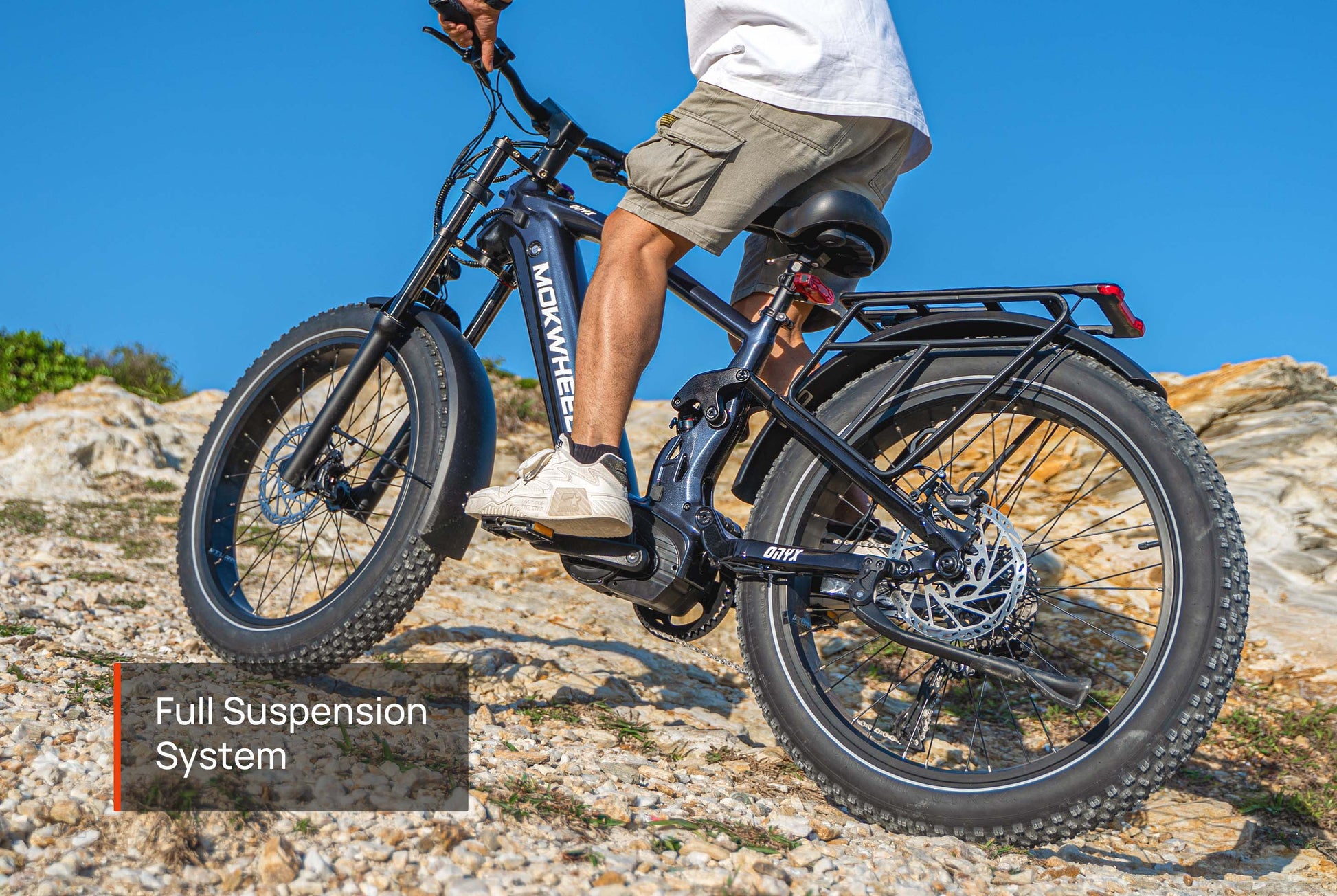

• Front Fork: 135mm adjustable suspension

• Frame: 6061 aluminum alloy with internal battery

• Throttle: Thumb

• Handlebar: 720mm aluminum alloy, 31.8mm

• Kickstand: Aluminum alloy

• Rims: Aluminum alloy

• Saddle: Features a hidden manual adjustable seatpost

• Spokes: Heavy-duty carbon steel, 12G × 248 mm front / 251 mm rear

Power. Control. Adventure.
The Onyx combines high torque, durable construction, and premium comfort for a ride that excels on urban streets, rugged trails, or long-distance journeys.
