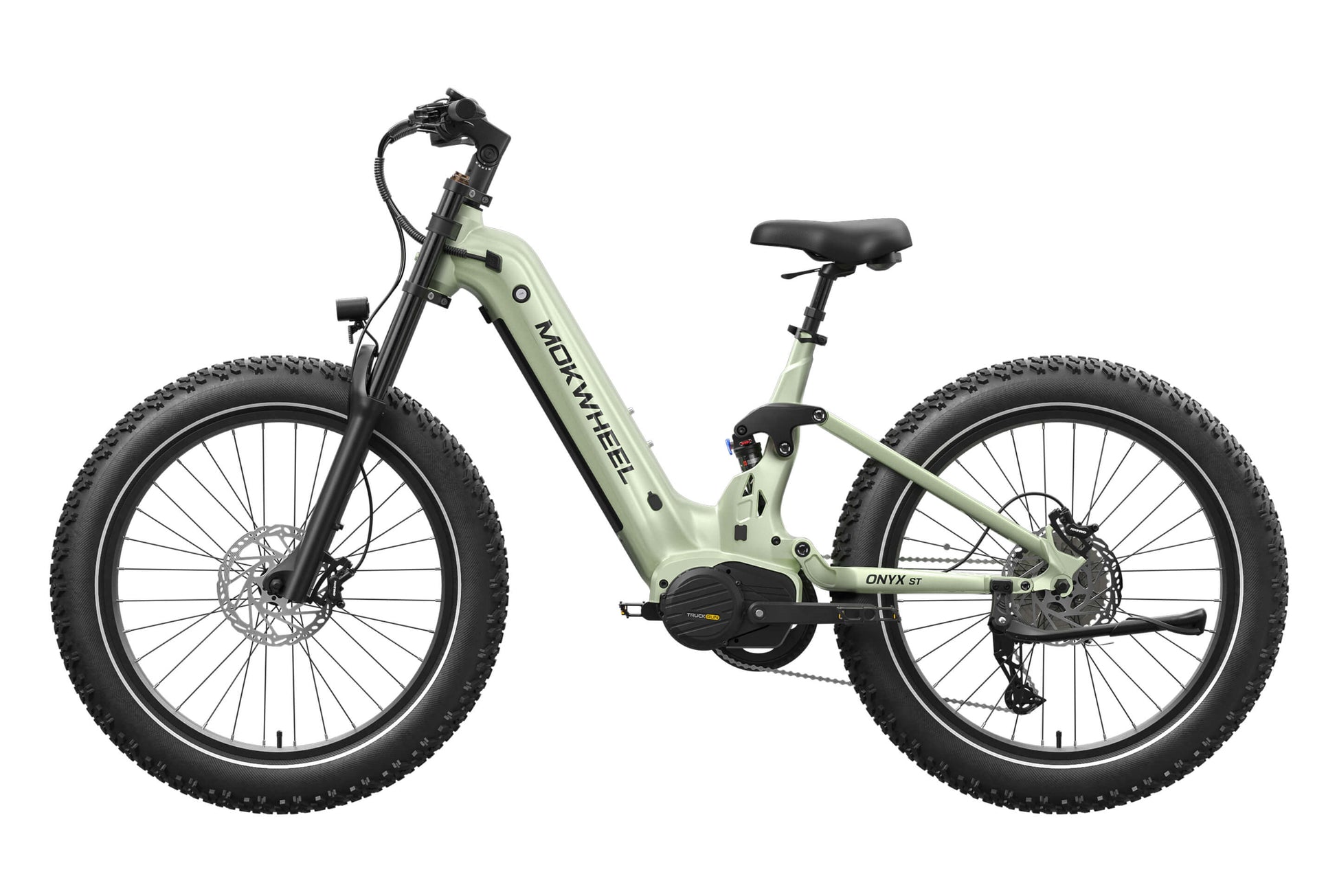

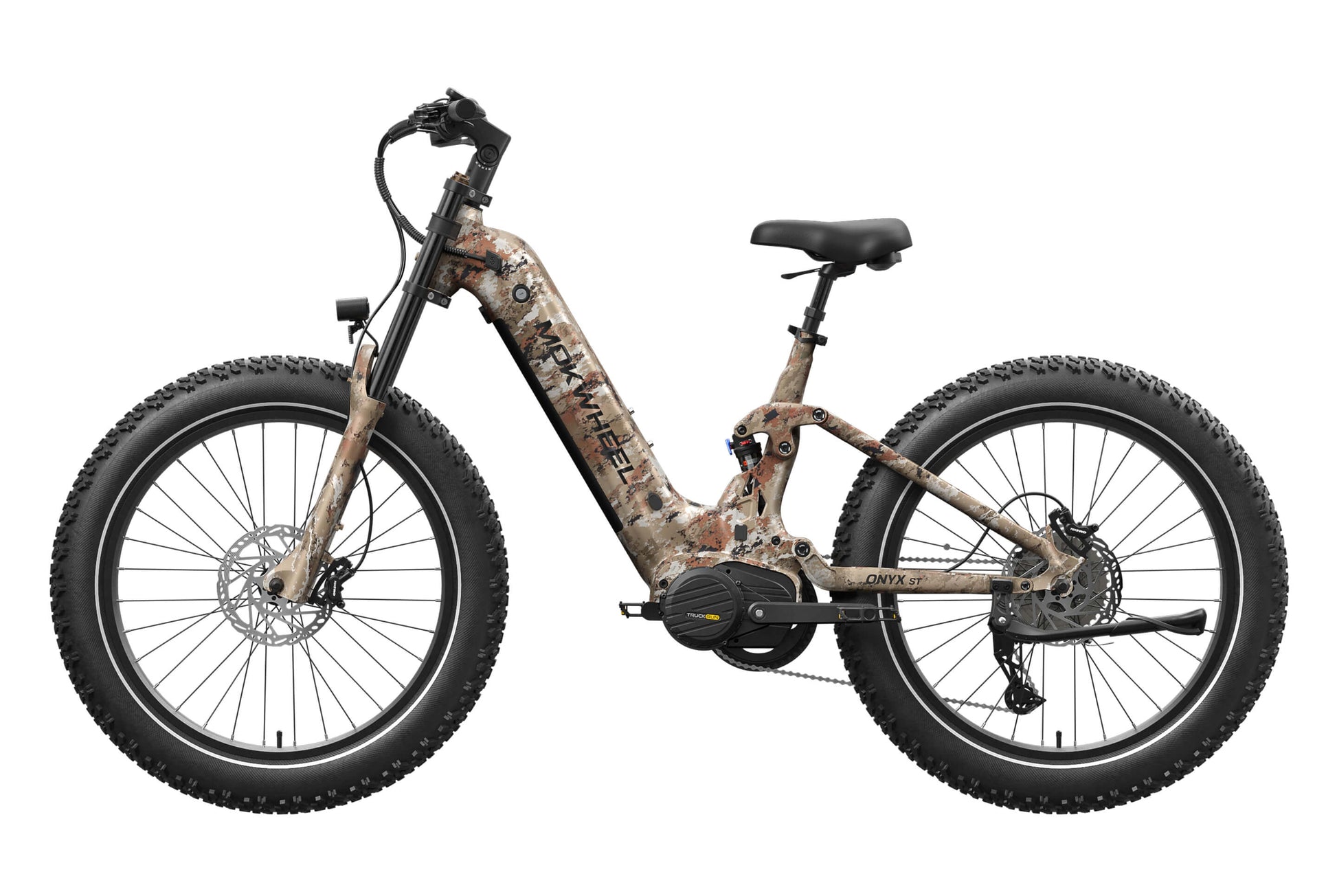

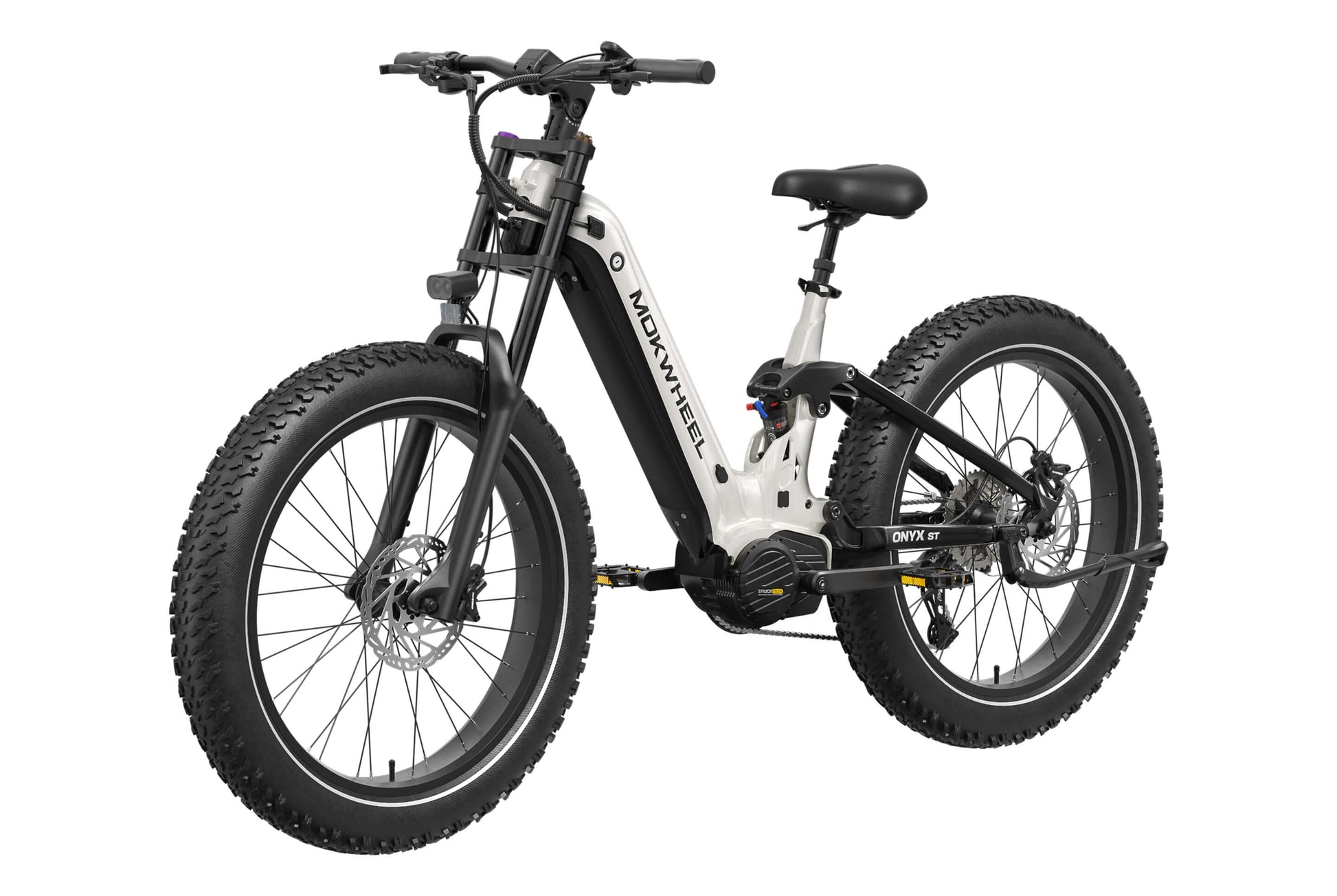

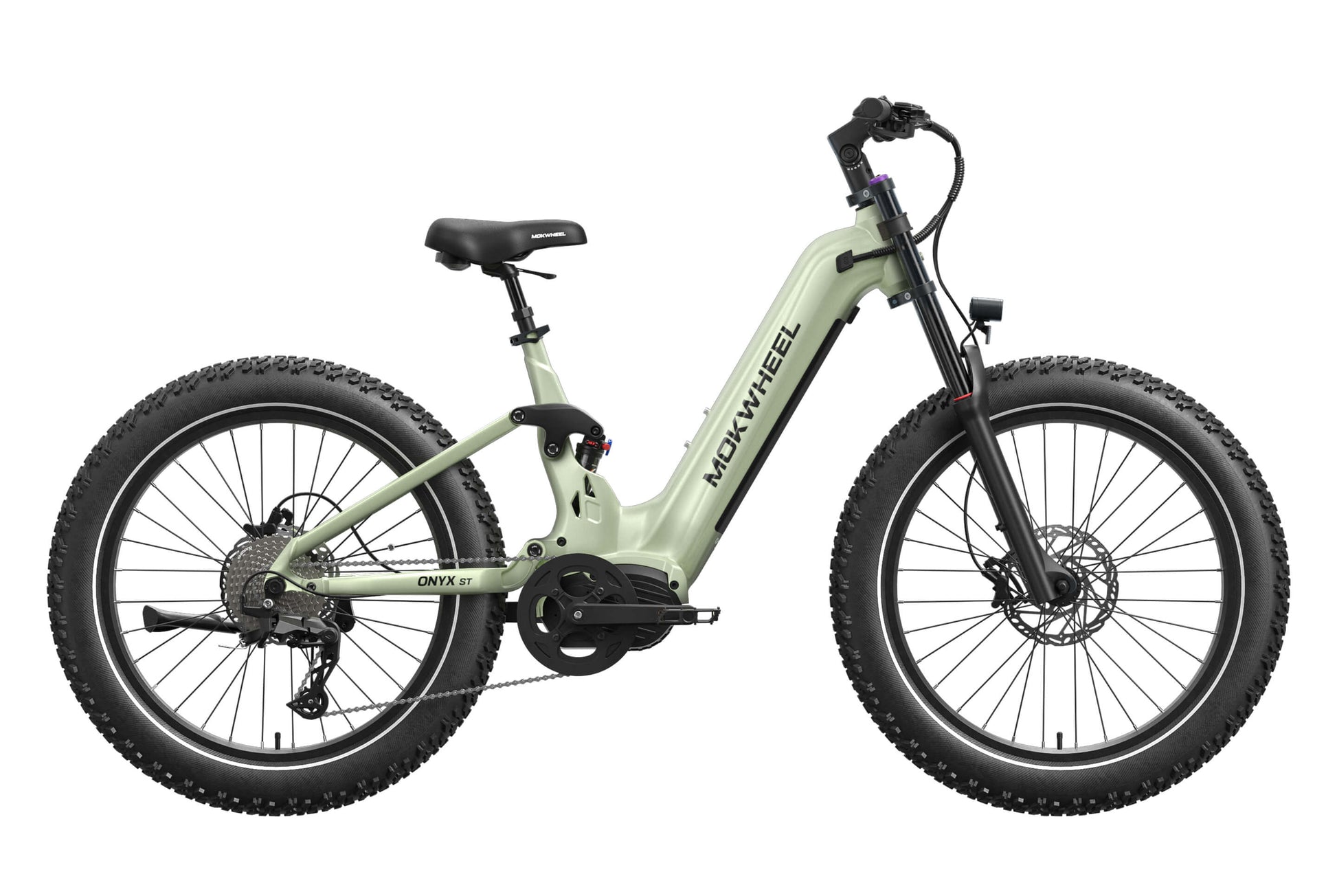

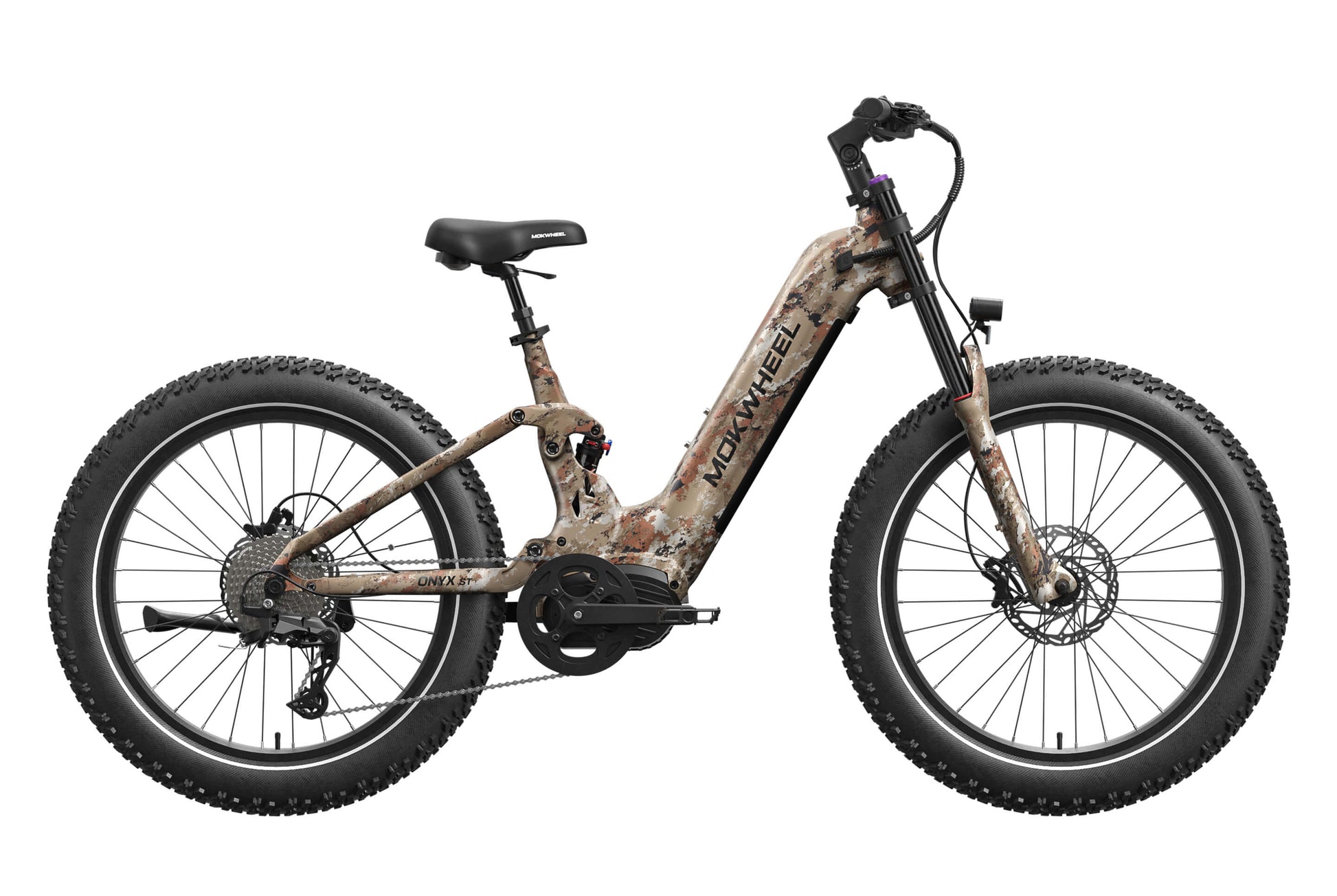

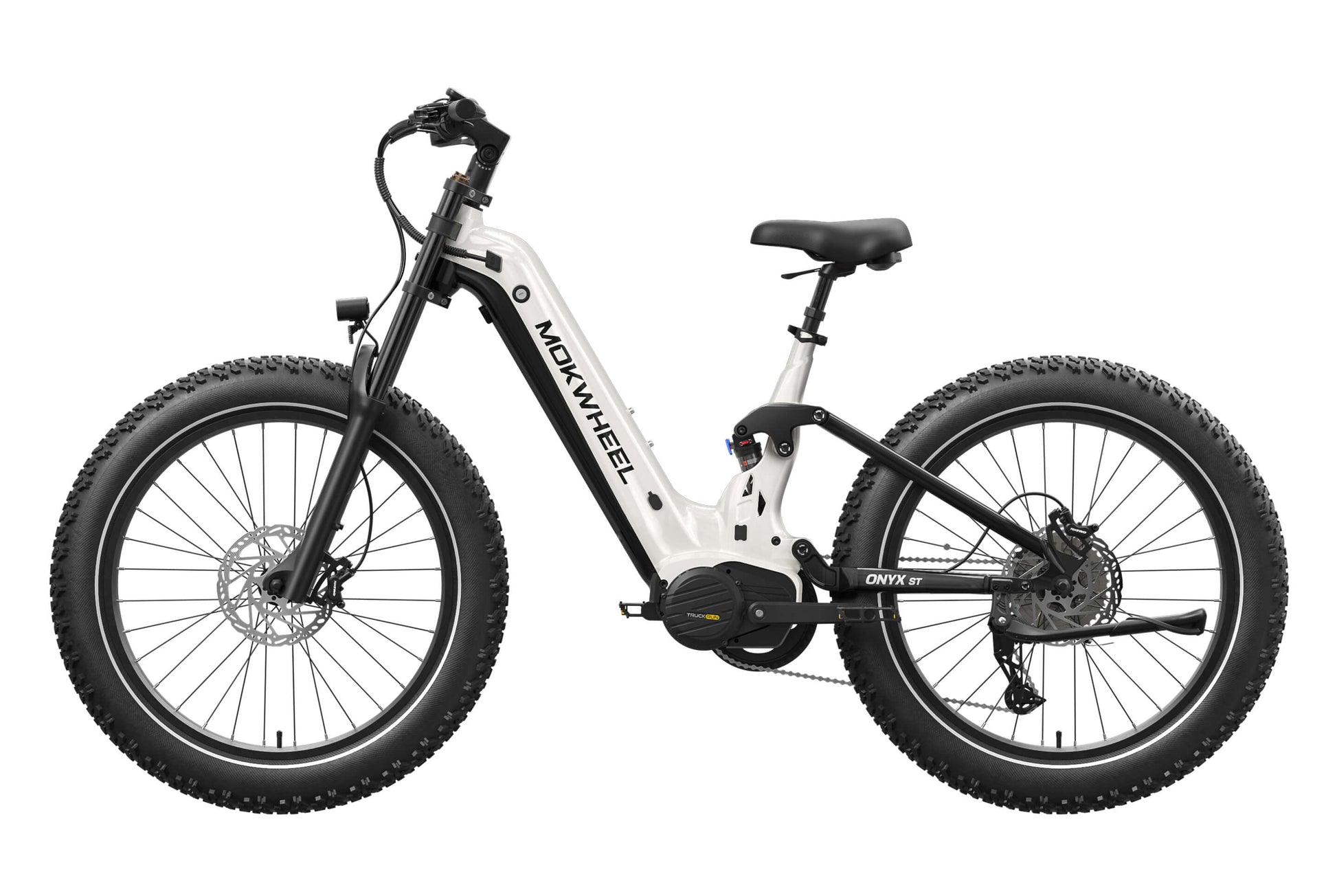

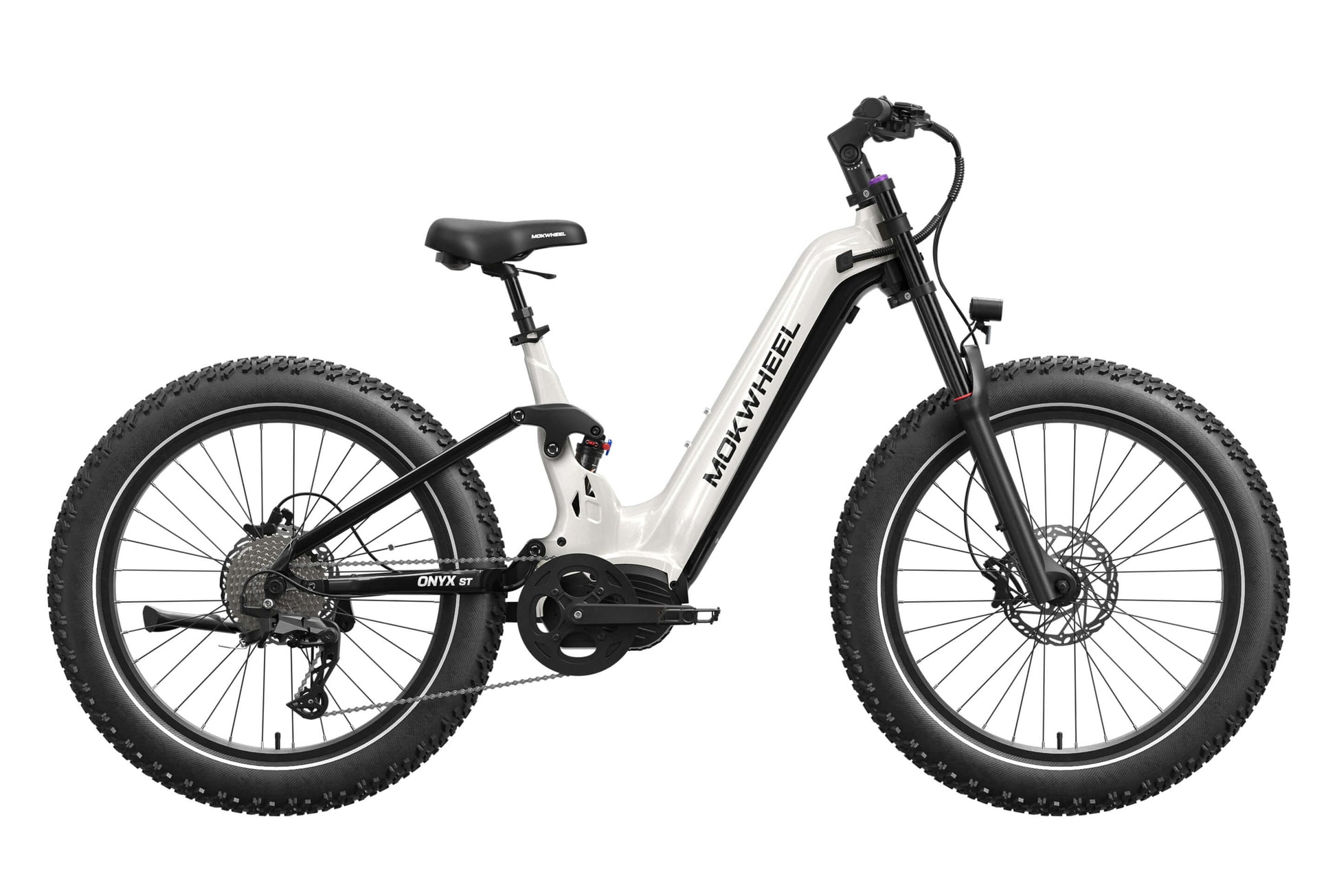

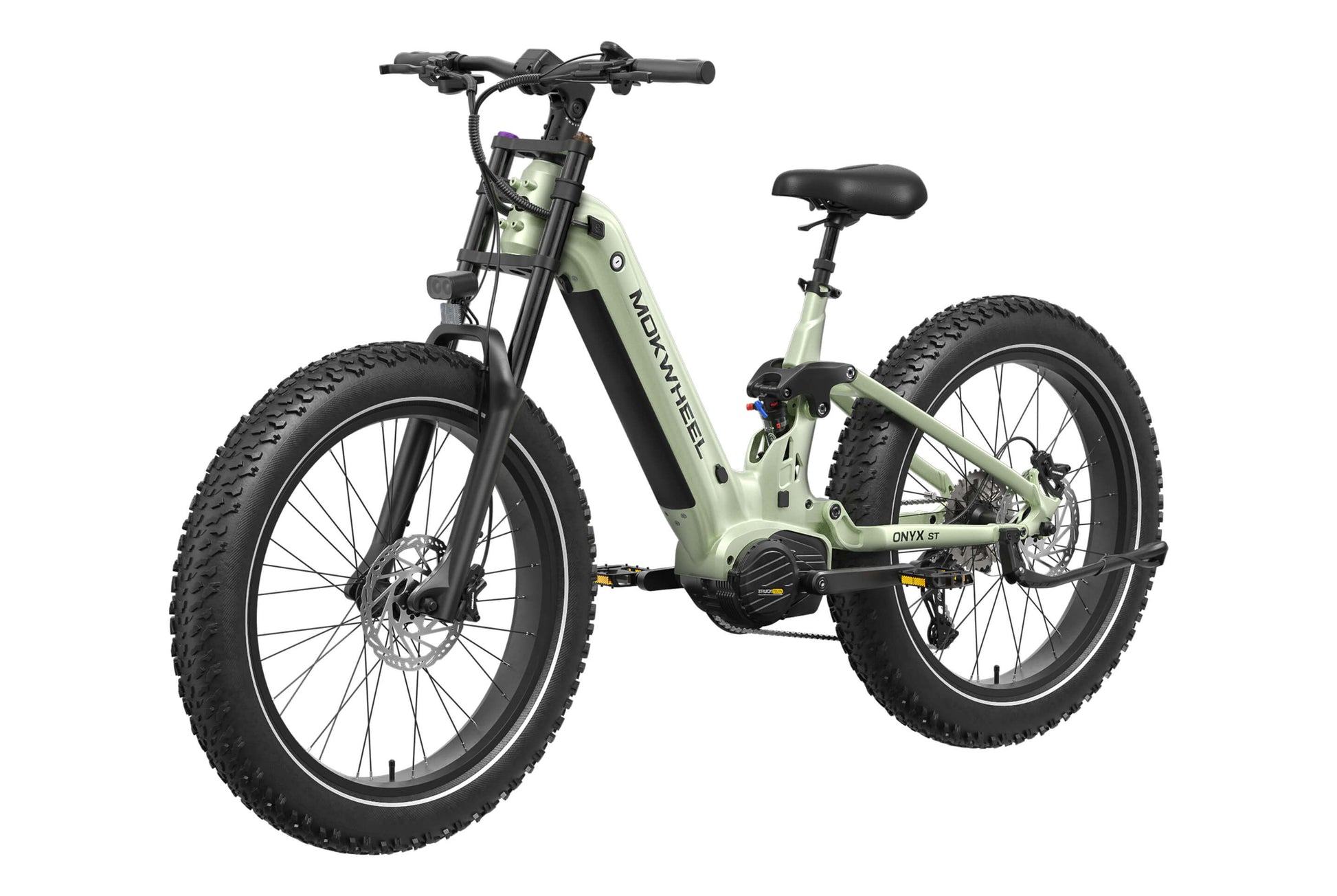

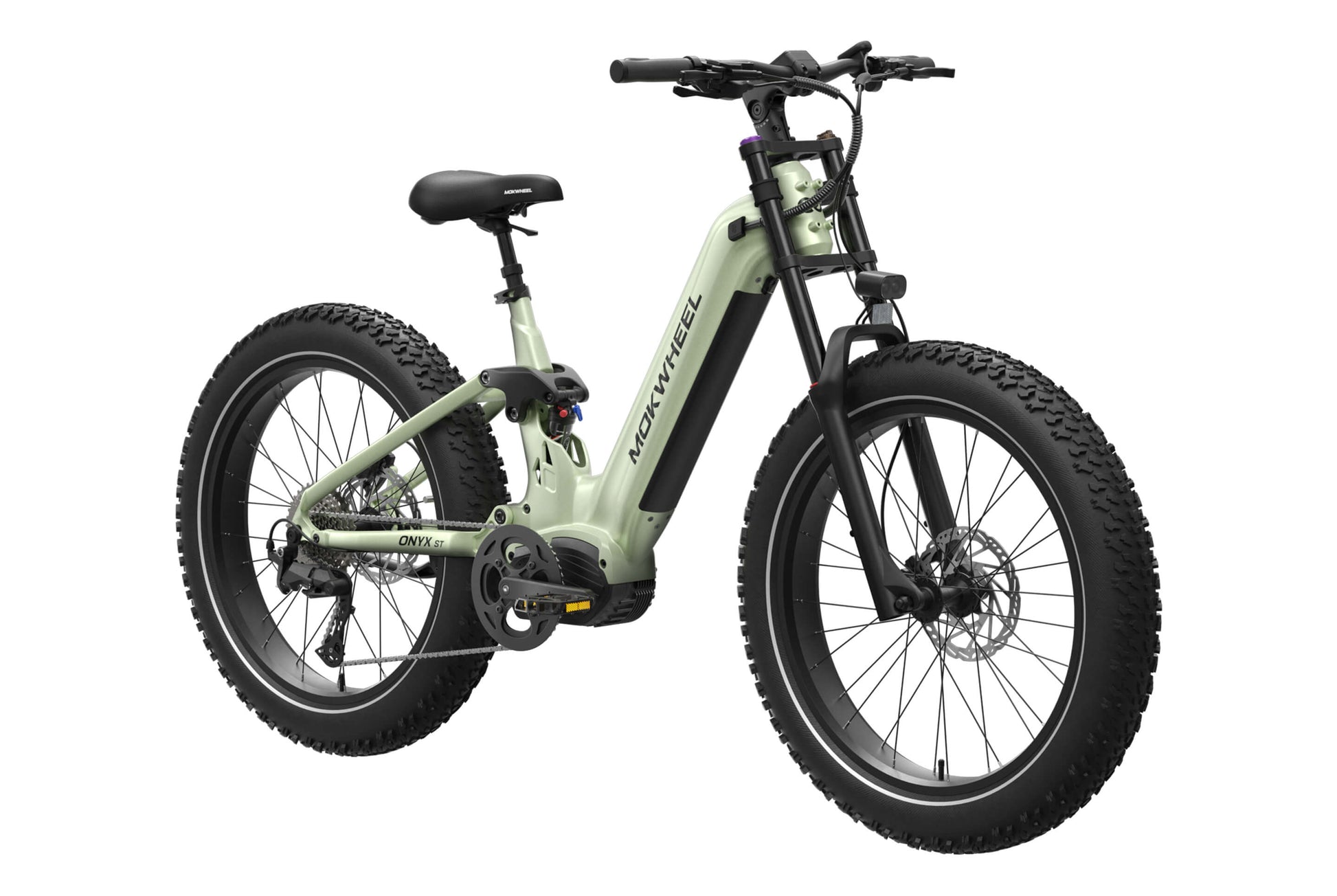

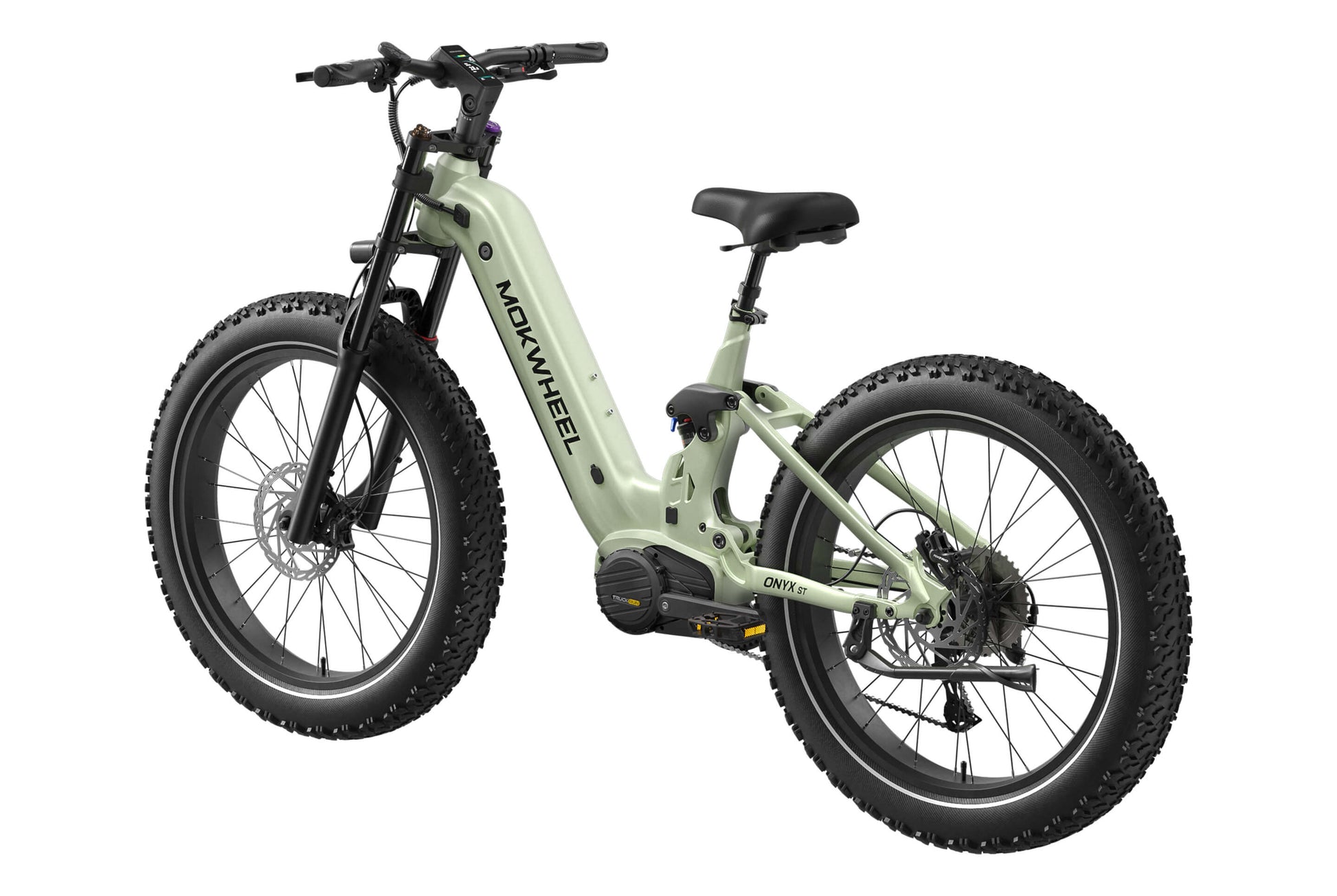

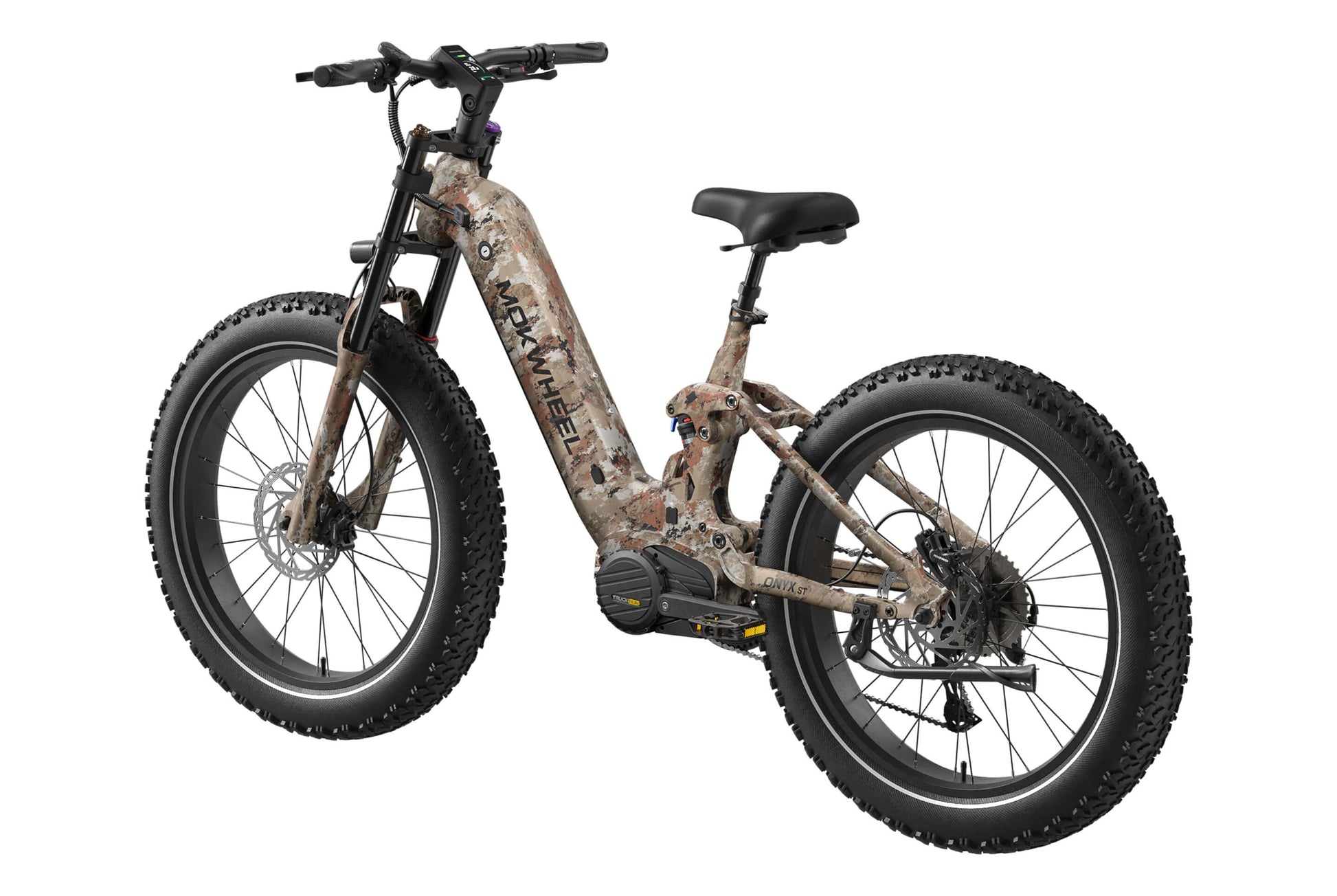

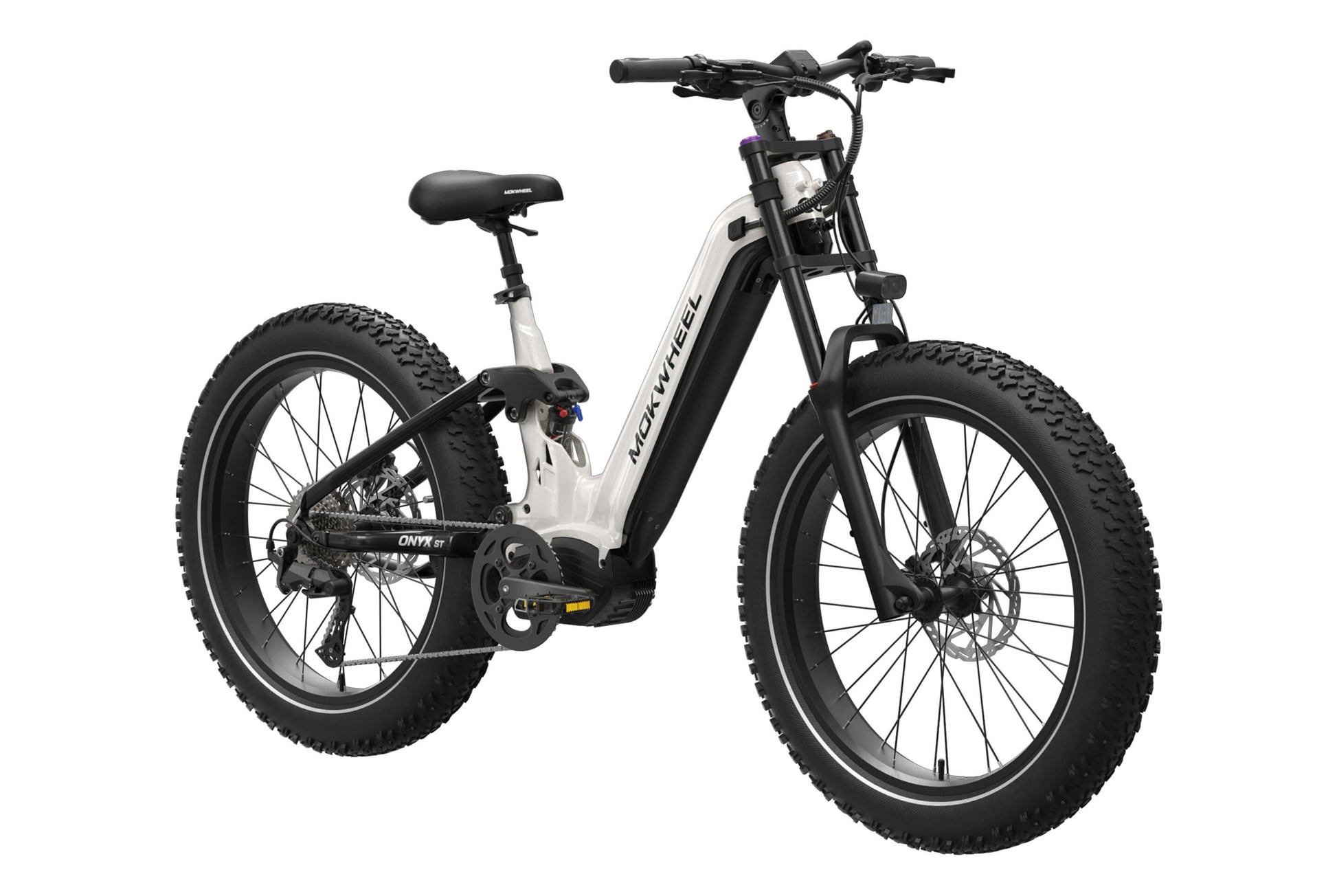

Mokwheel Onyx ST Ebike

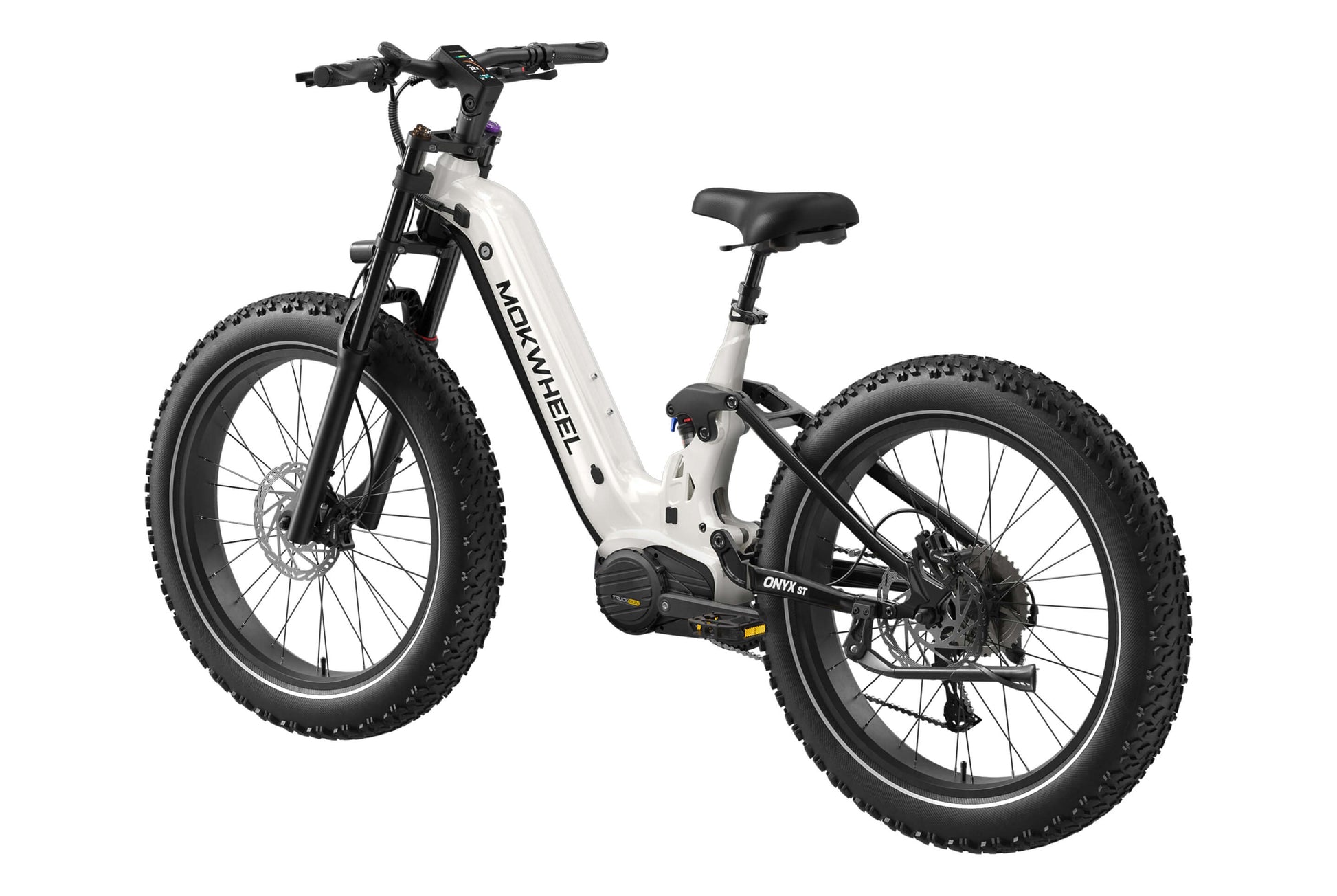

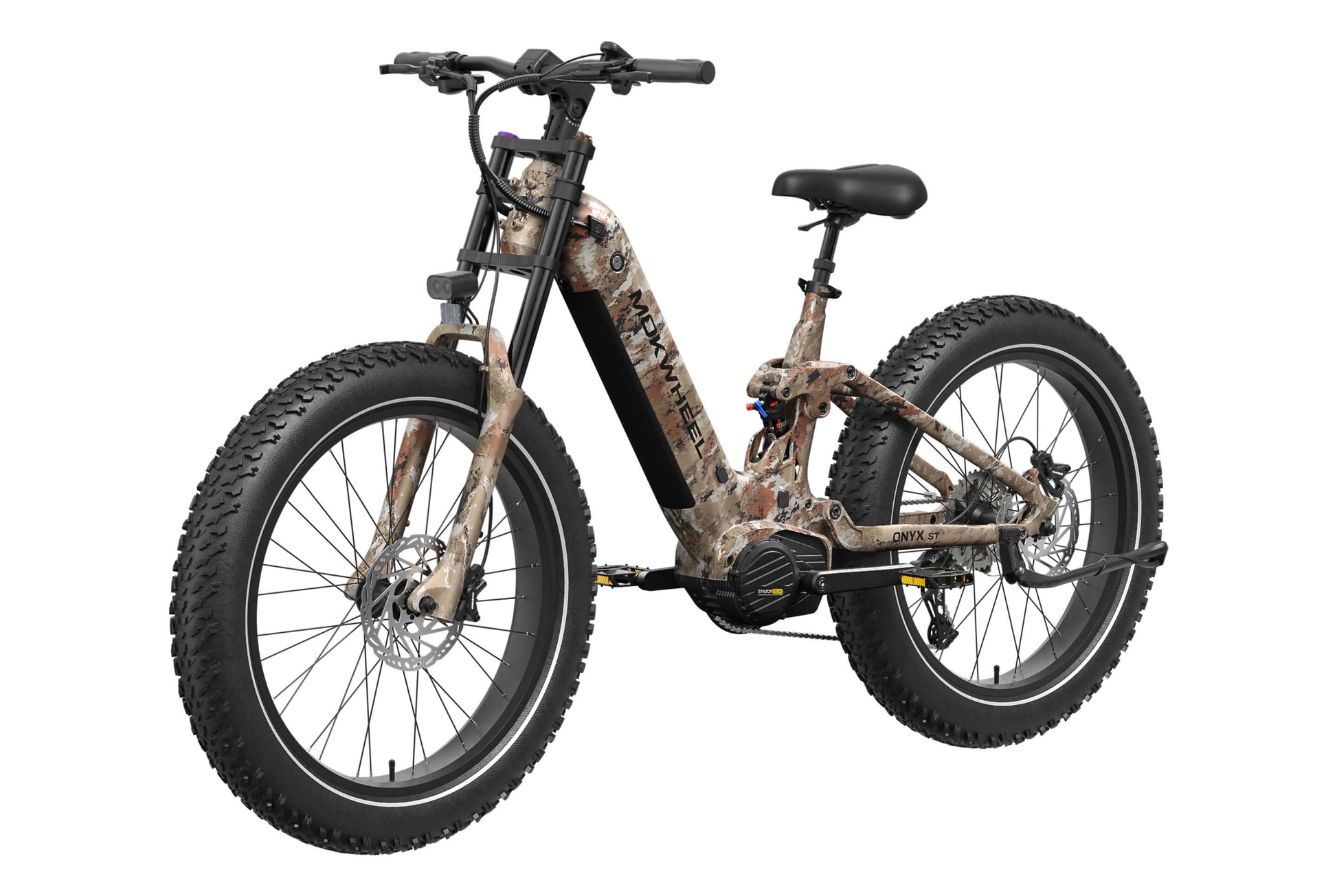

Onyx ST Ebike

Size and Fit
The Onyx ST is designed in one versatile size to fit most adults, providing comfort and control for riders between 5'5" and 6'7".

• Reach: 19 inches

• Top Tube Length: 25 inches

• Standover Height: 20 inches

• Wheelbase: 50 inches

• Minimum Saddle Height: 35 inches

• Maximum Saddle Height: 41 inches

• Total Length: 79 inches

• Head Tube Length: 6 inches

Technical Specifications
Engineered for powerful performance and long-range riding:

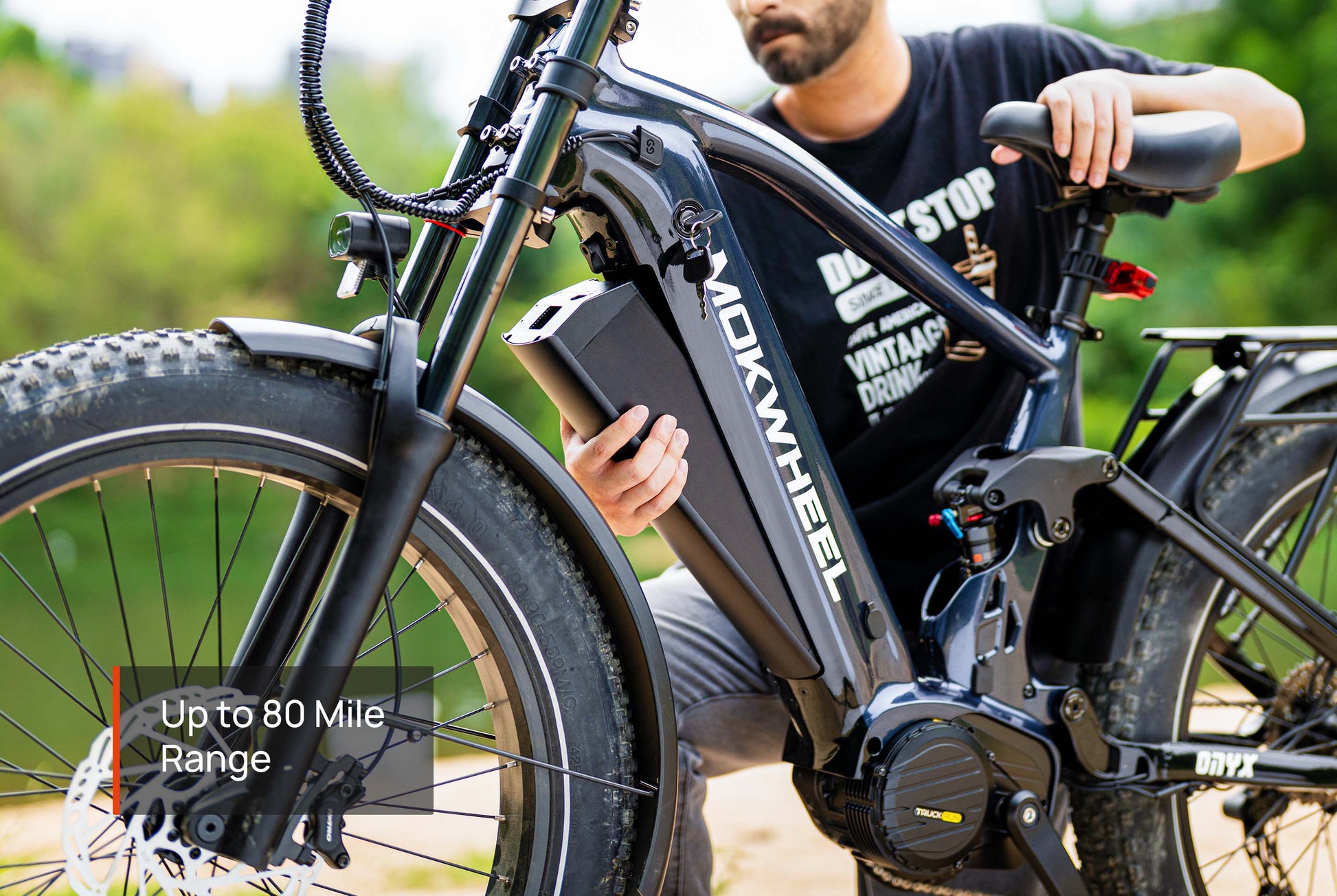

• Battery: 48V 19.6Ah, UL certified

• Charger: 48V 3A

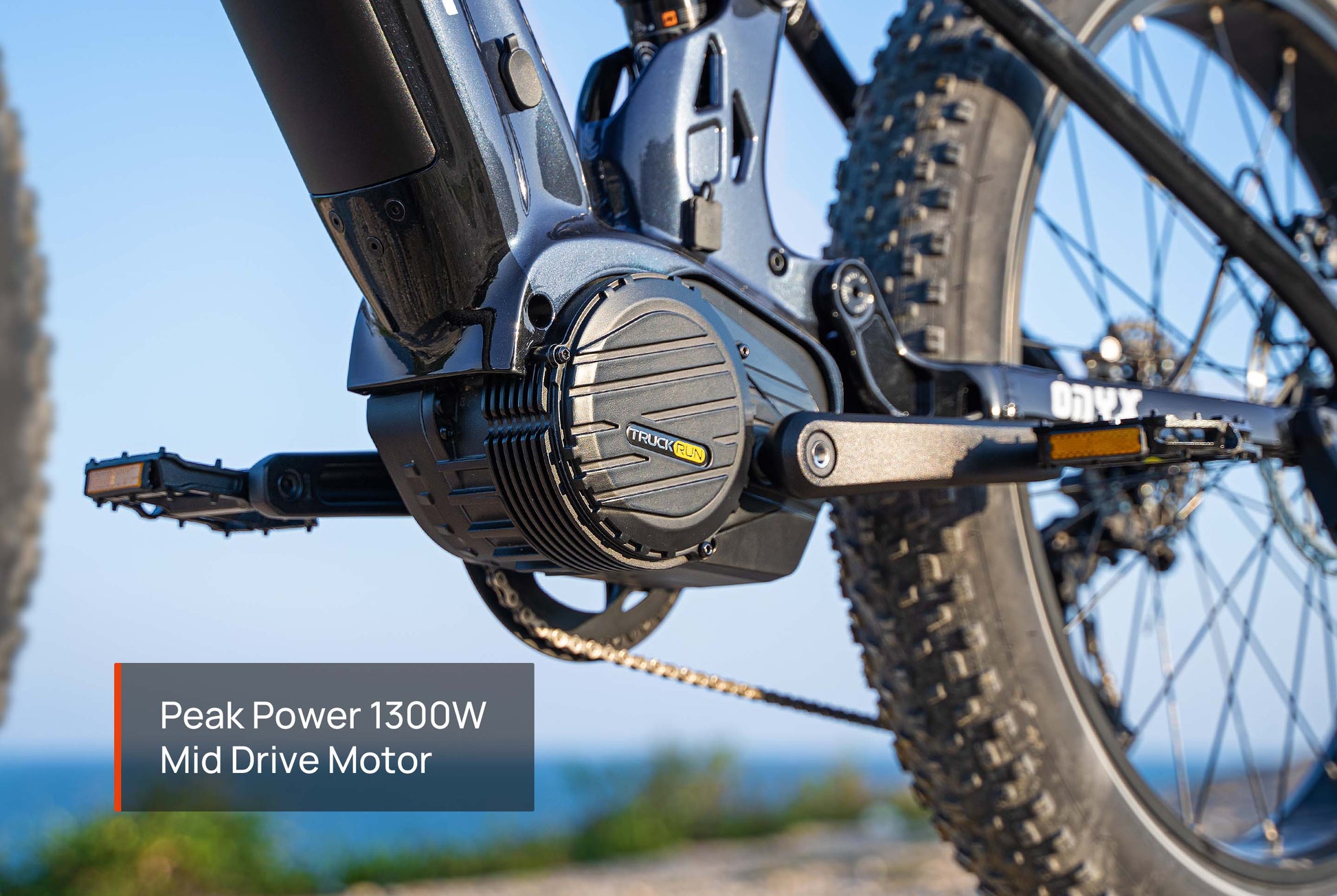

• Motor: Mid-drive, Rated 750W, Continuous 1000W, Peak 1300W, Torque 210Nm+

• Speed: 20 mph with throttle, 28 mph with pedal assist

• Weight: 88 lbs

• Range: 60–80 miles

• Payload Capacity: 560 lbs

Performance and Handling
Built for precision, durability, and maximum control:

• Sensor: Torque and cadence sensor

• Tires: 26" x 4.0" puncture-resistant fat tires

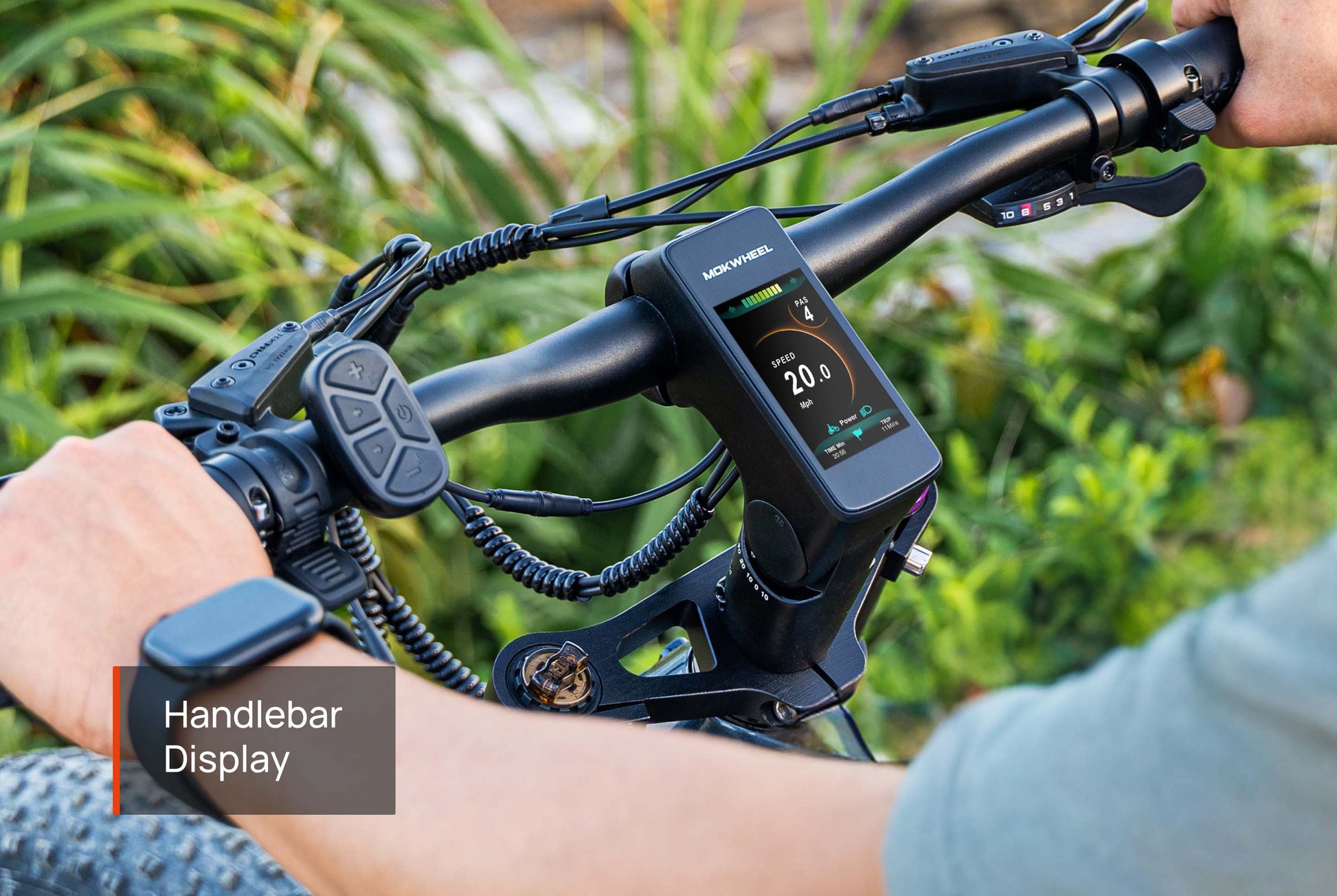

• Display: HD stem display

• Brakes: Tektro HD-E3940 4-piston hydraulic brakes

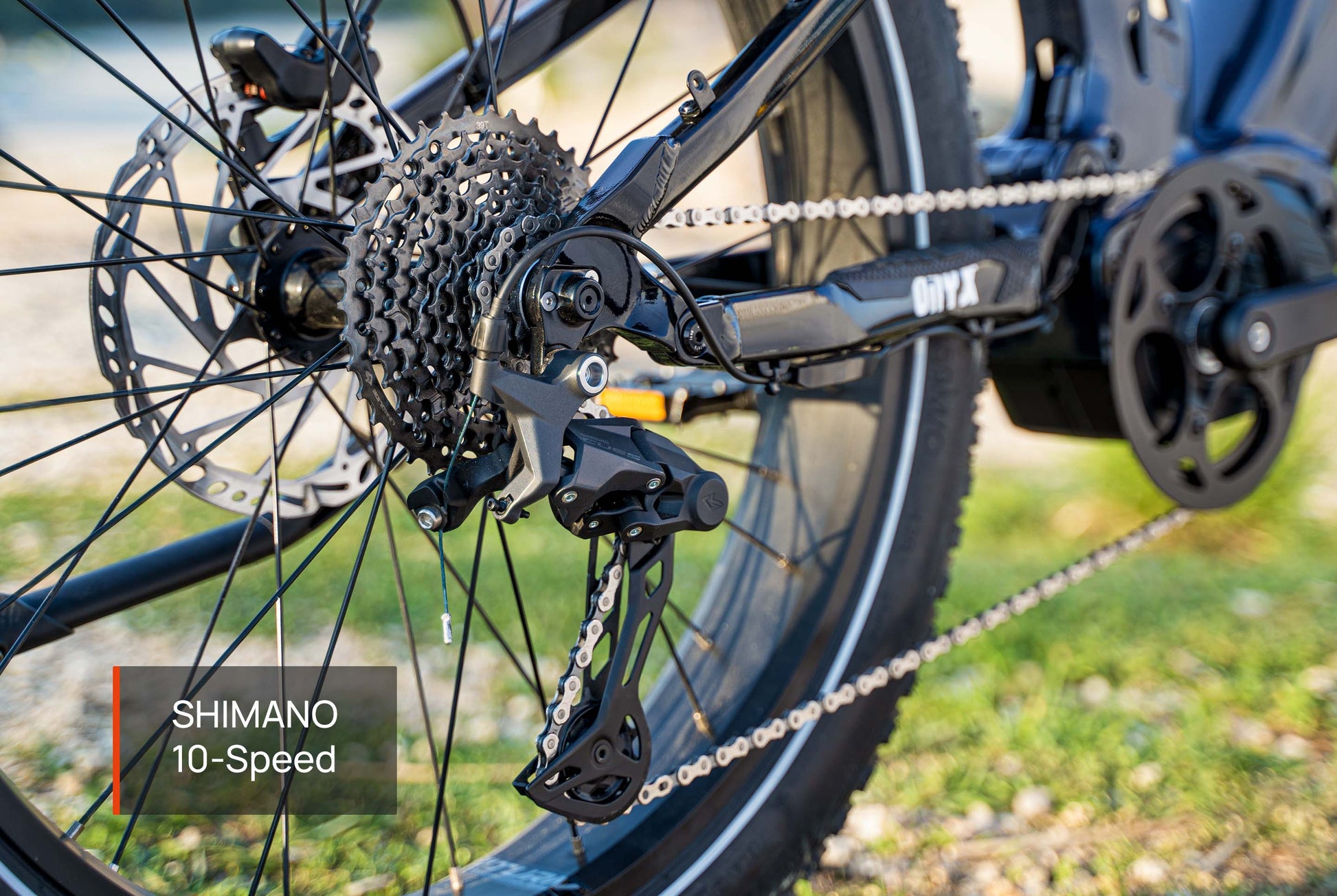

• Gearing: Shimano 10-speed

• Derailleur: Shimano 10-speed rear

• Chain: KMC stainless steel

• Crankset: 44T aluminum alloy

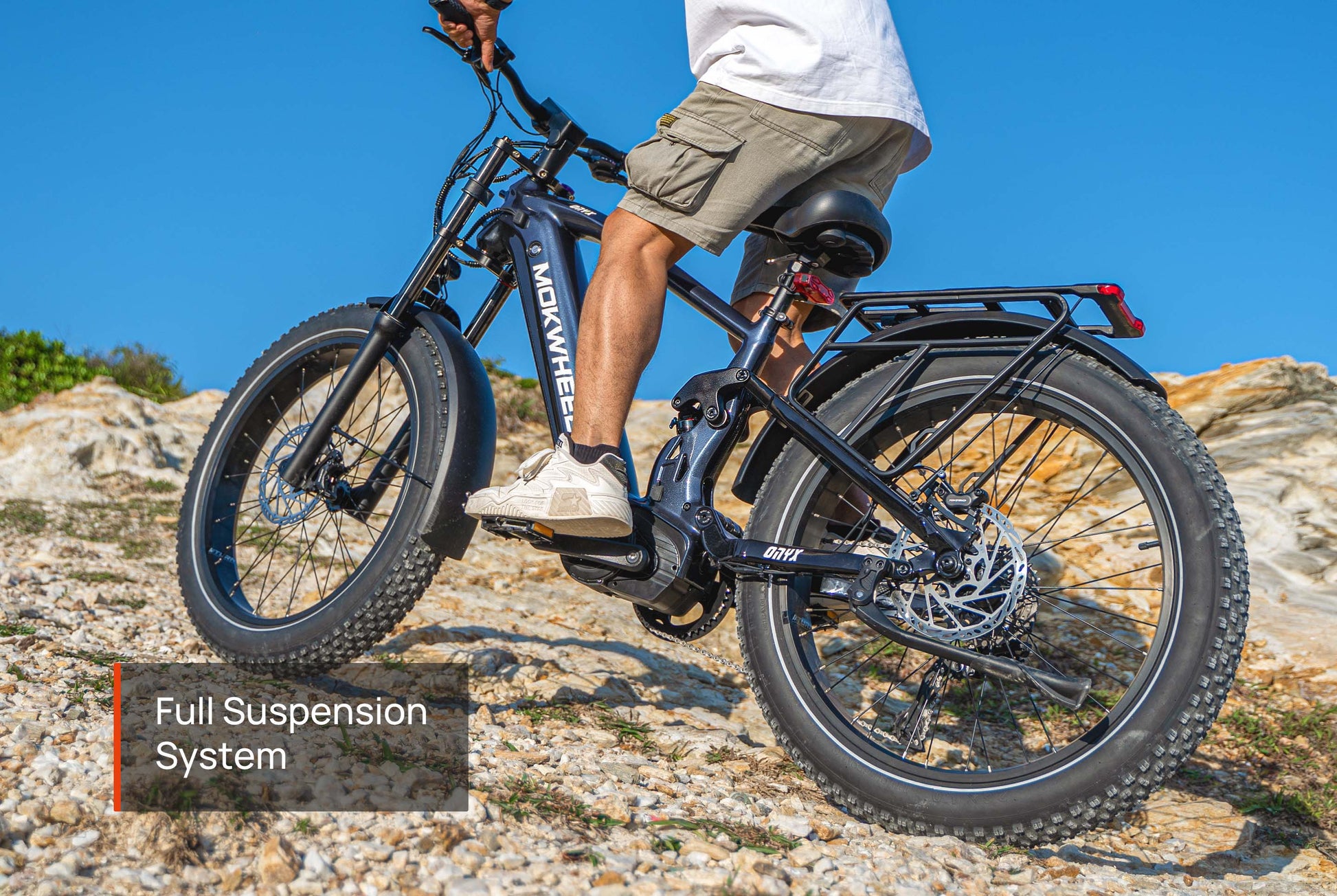

• Front Fork: 135mm adjustable suspension

• Frame: 6061 aluminum alloy with internal battery

• Throttle: Thumb

• Handlebar: 680mm aluminum alloy, 31.8mm

• Kickstand: Aluminum alloy

• Rims: Aluminum alloy

• Saddle: Customized comfort leather seat

• Spokes: Heavy-duty carbon steel, 12G × 248 mm front / 251 mm rear

Power. Comfort. Adventure.
The Onyx ST combines high torque, durable construction, and premium comfort to deliver a ride built for both urban streets and rugged trails.
