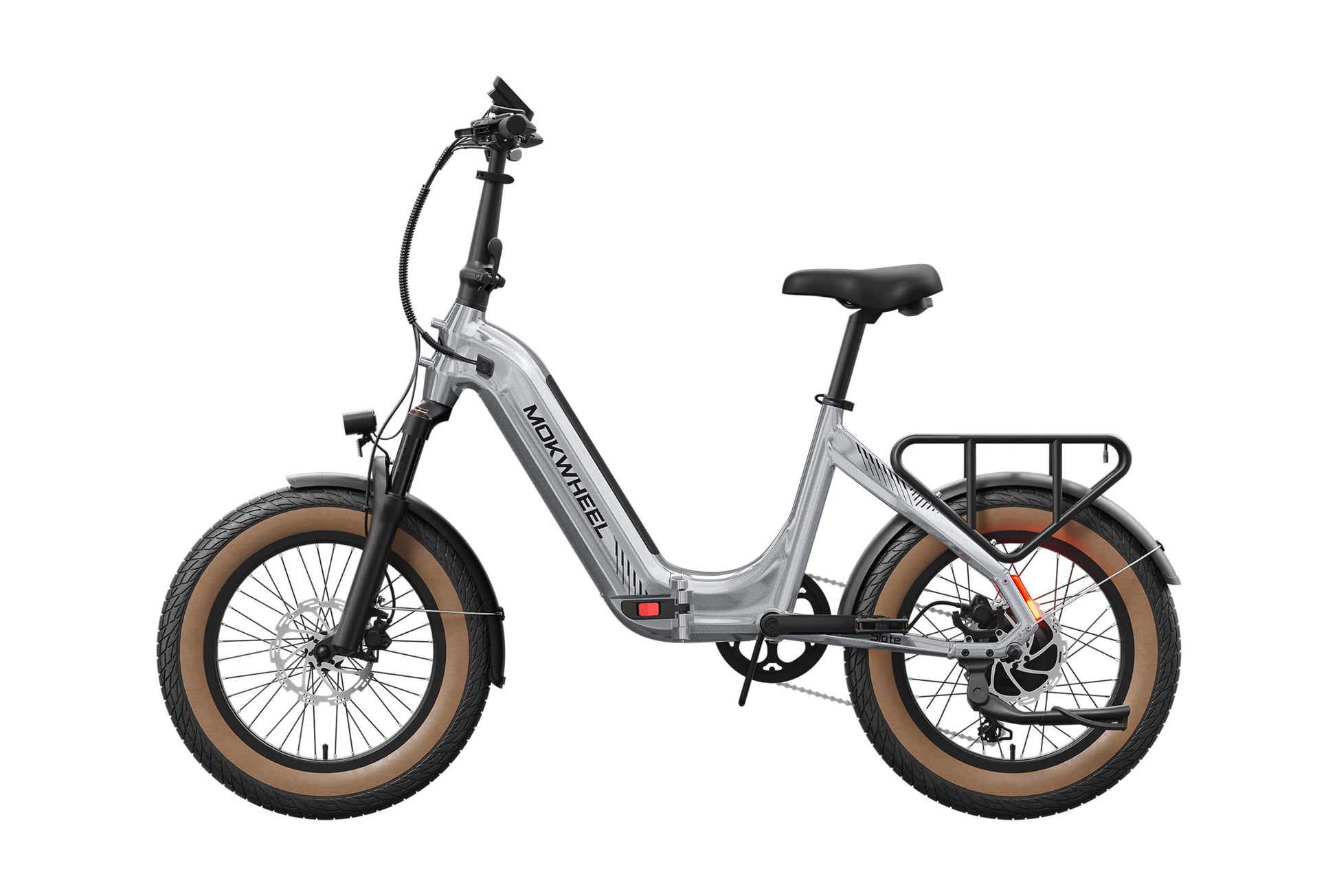

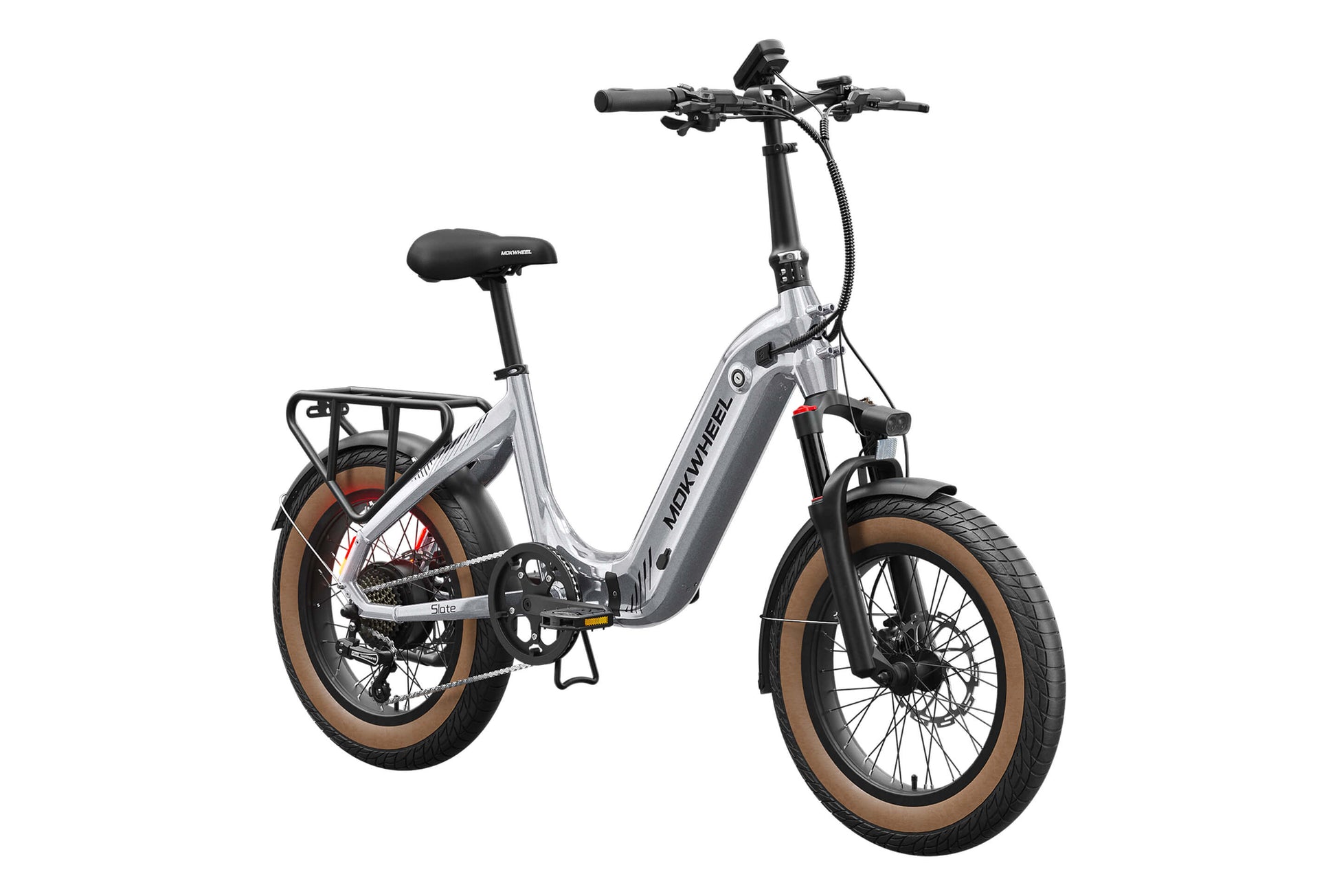

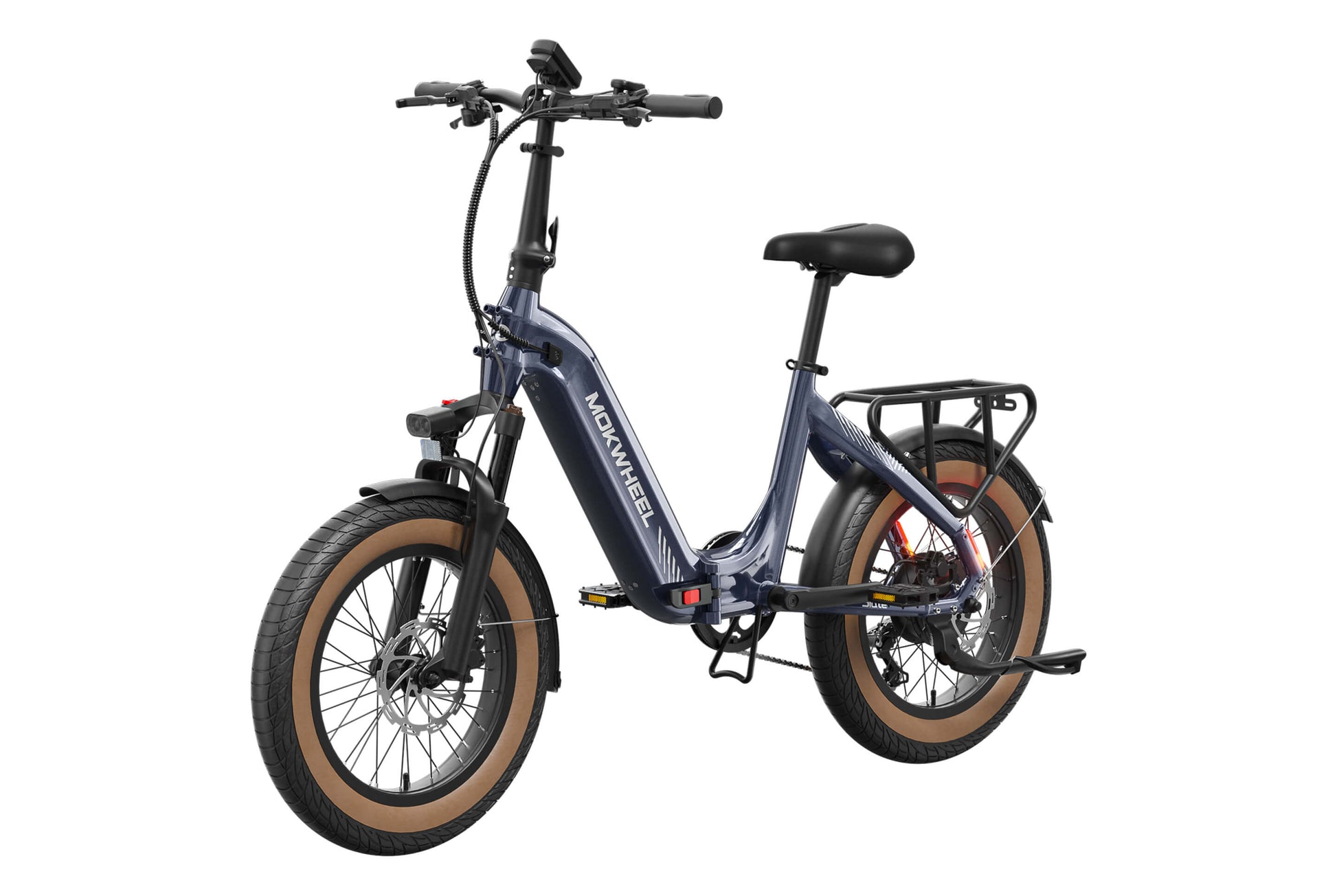

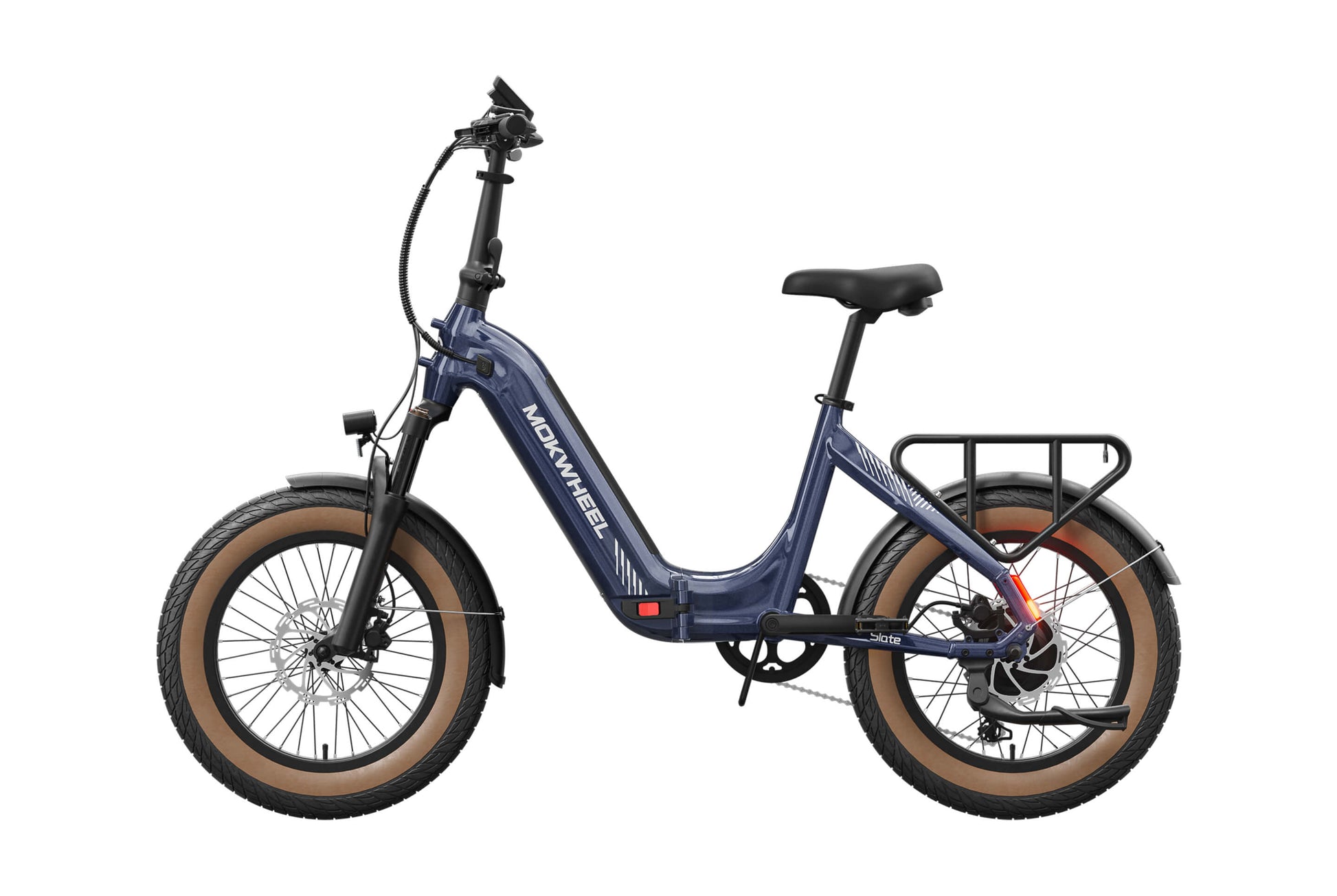

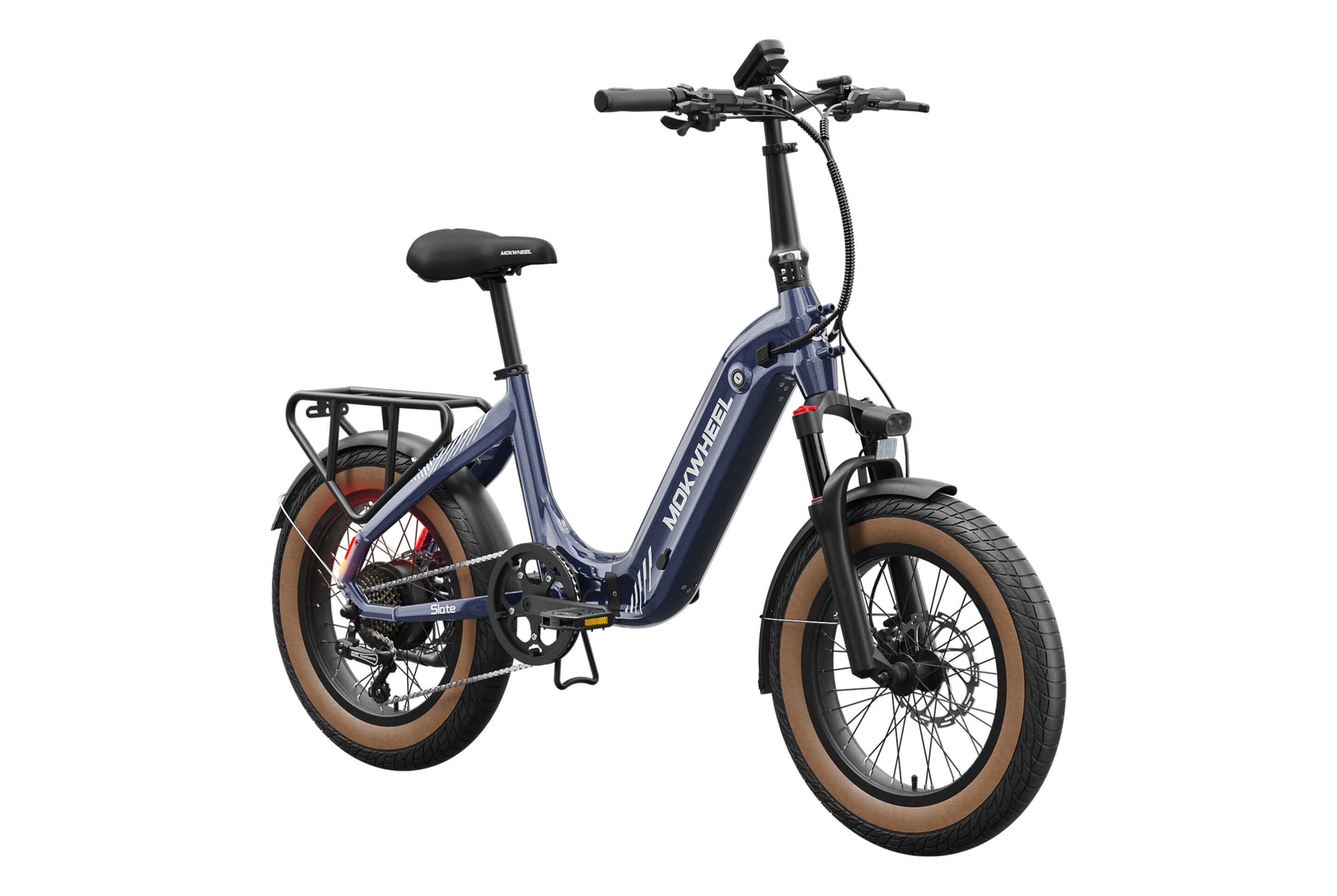

Mokwheel Slate Ebike

Slate Ebike

Size & Fit
The Slate is designed in one versatile size to fit most adults, offering comfort and control for riders between 5'0" and 6'2".

• Reach: 20 inches

• Top Tube Length: 25 inches

• Standover Height: 16 inches

• Wheelbase: 43 inches

• Minimum Saddle Height: 32 inches

• Maximum Saddle Height: 37 inches

• Total Length: 64 inches

• Head Tube Length: 7 inches

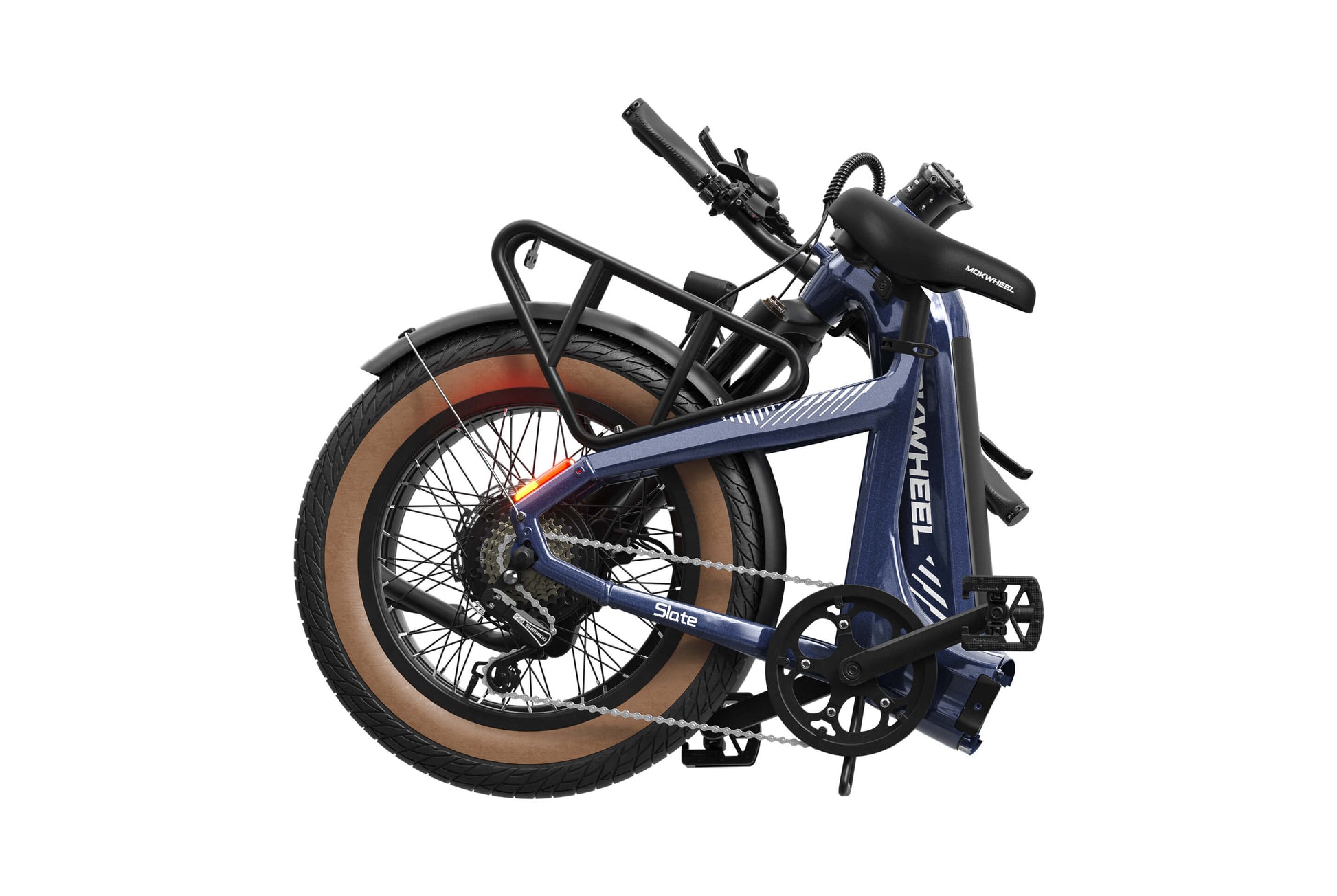

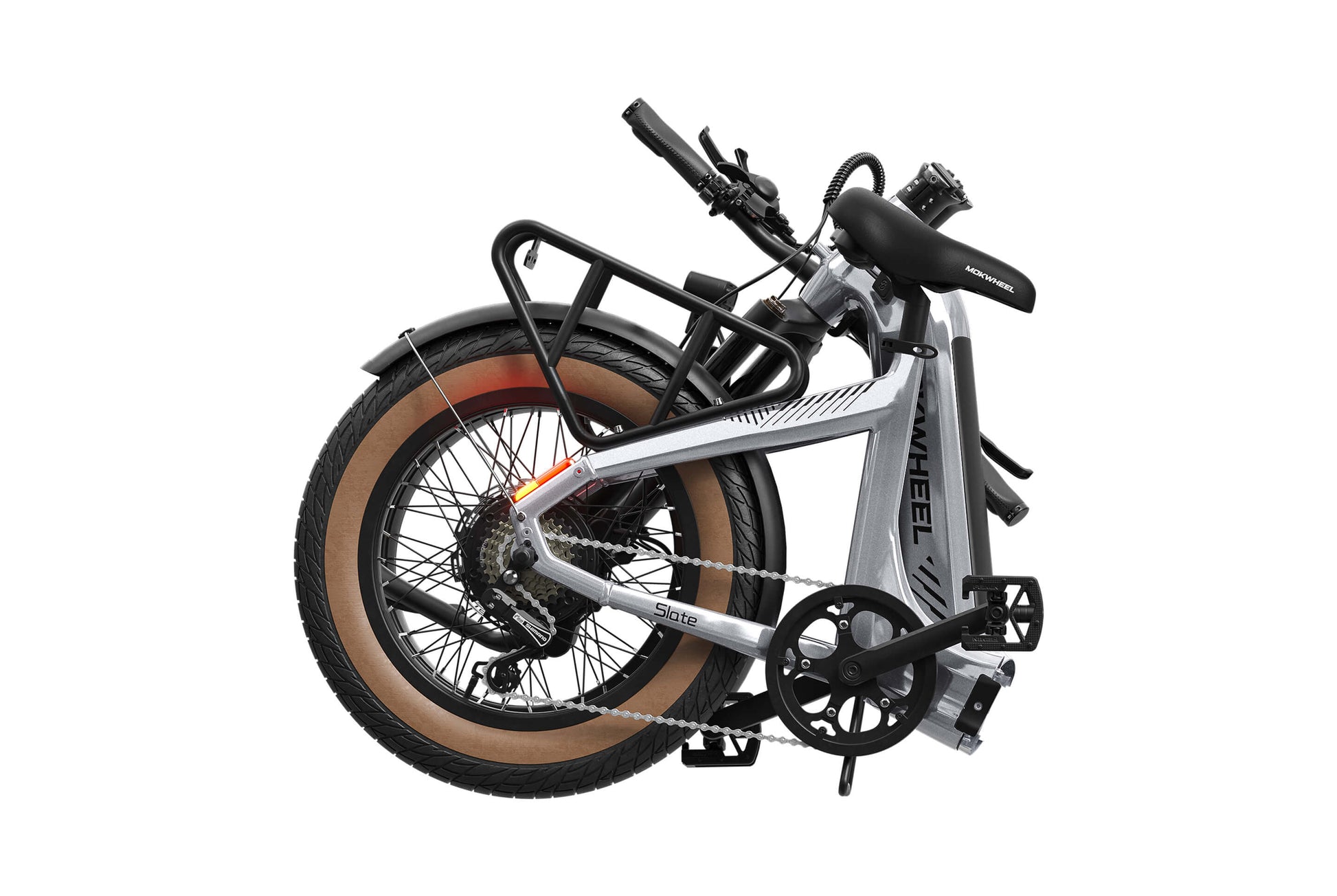

• Folded Dimensions: 39" × 12" × 30"

Technical Specifications
Compact, powerful, and built for convenience—ideal for commuting and urban mobility:

• Battery: 48V 15Ah, UL certified

• Charger: 48V 3A

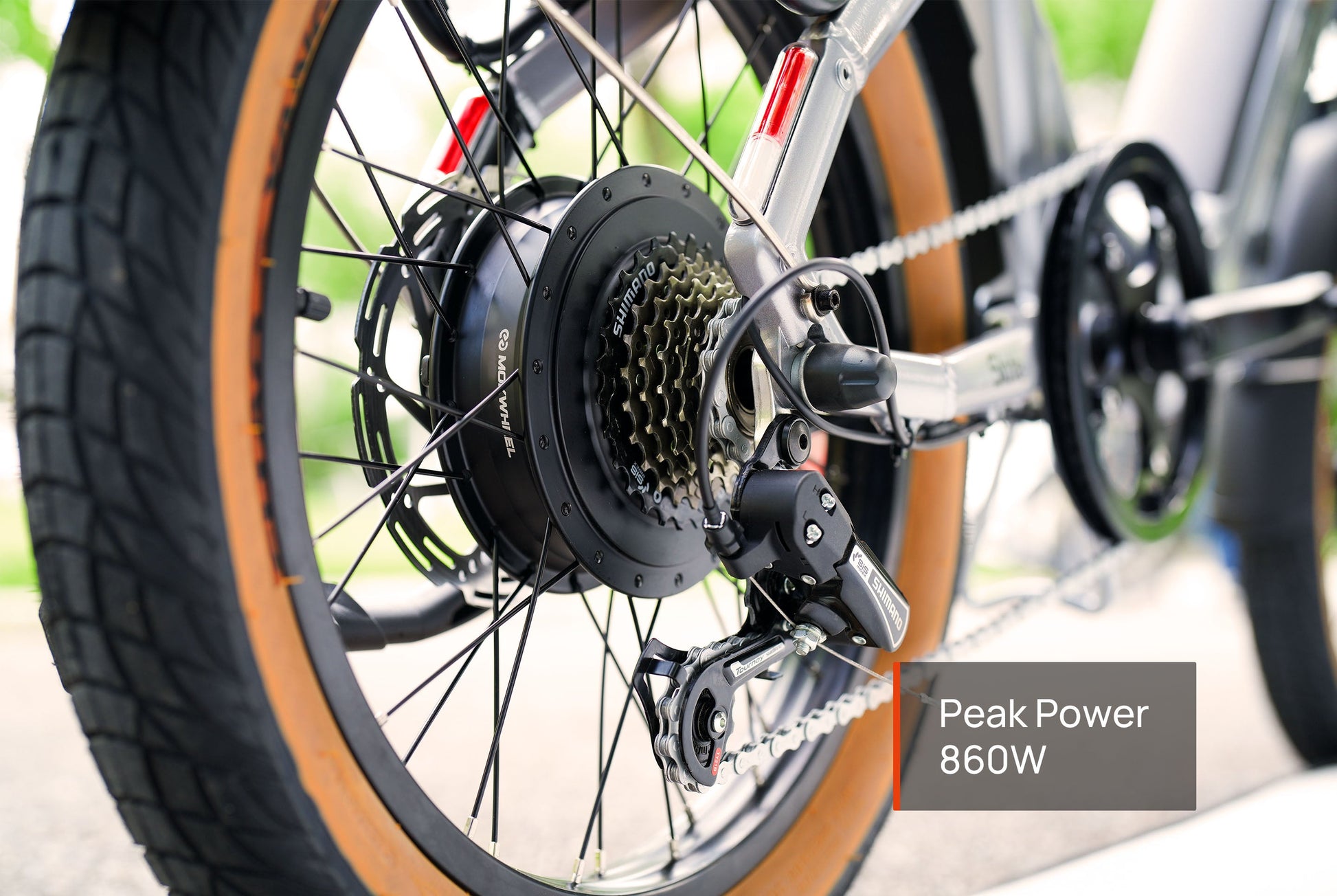

• Motor: Continuous 500W, Peak 860W, Torque 70Nm+

• Pedal Assist: Intelligent 1–5 levels

• Speed: 20 mph (throttle) / 25 mph (pedal assist)

• Weight: 64 lbs

• Range: 50–60 miles

• Payload Capacity: 350 lbs

Performance & Handling
Engineered for smooth, efficient, and responsive riding:

• Sensor: Torque + cadence sensor

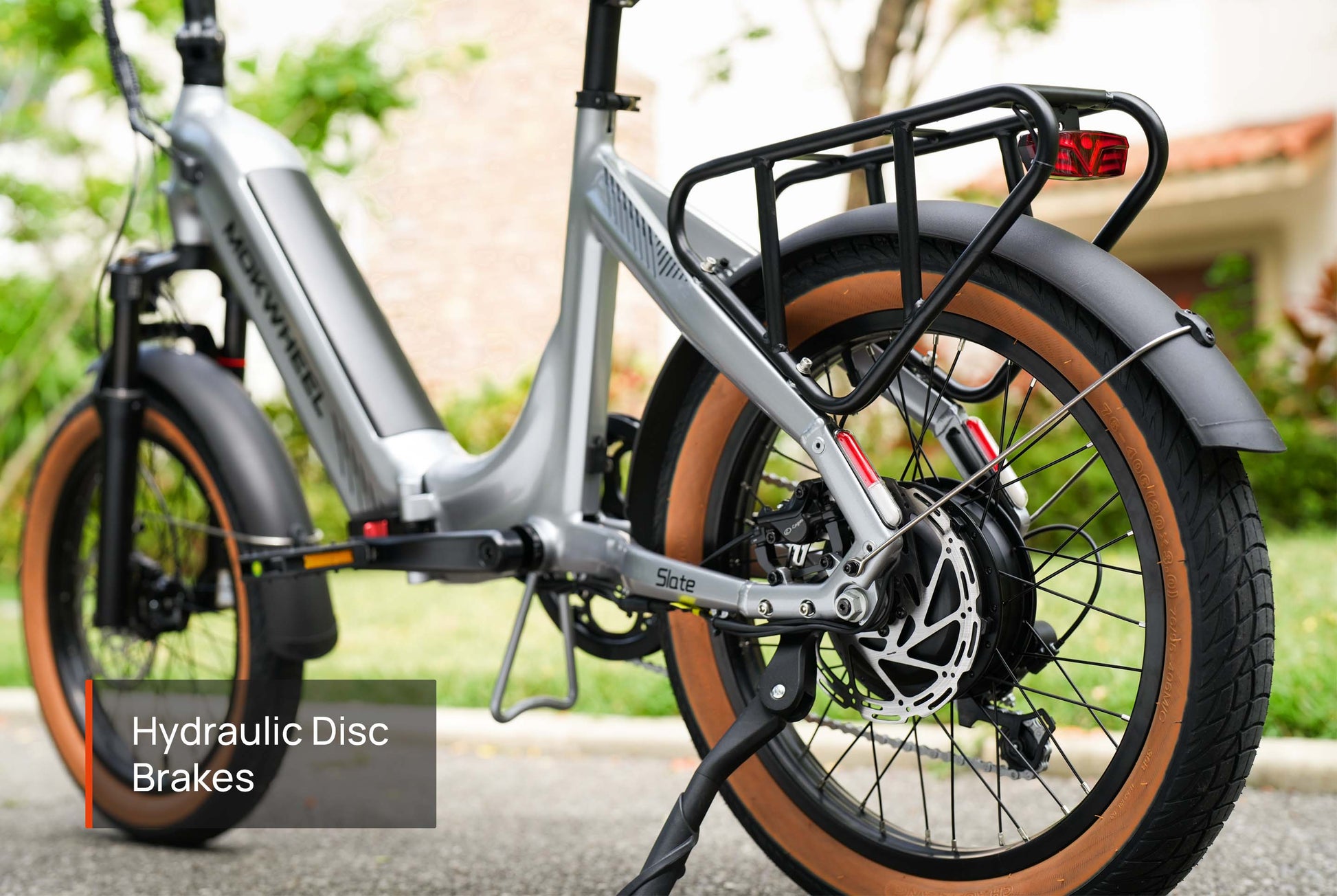

• Brakes: Logan HD-E500 hydraulic brakes

• Tires: 20" × 3.0" skin-side road tires

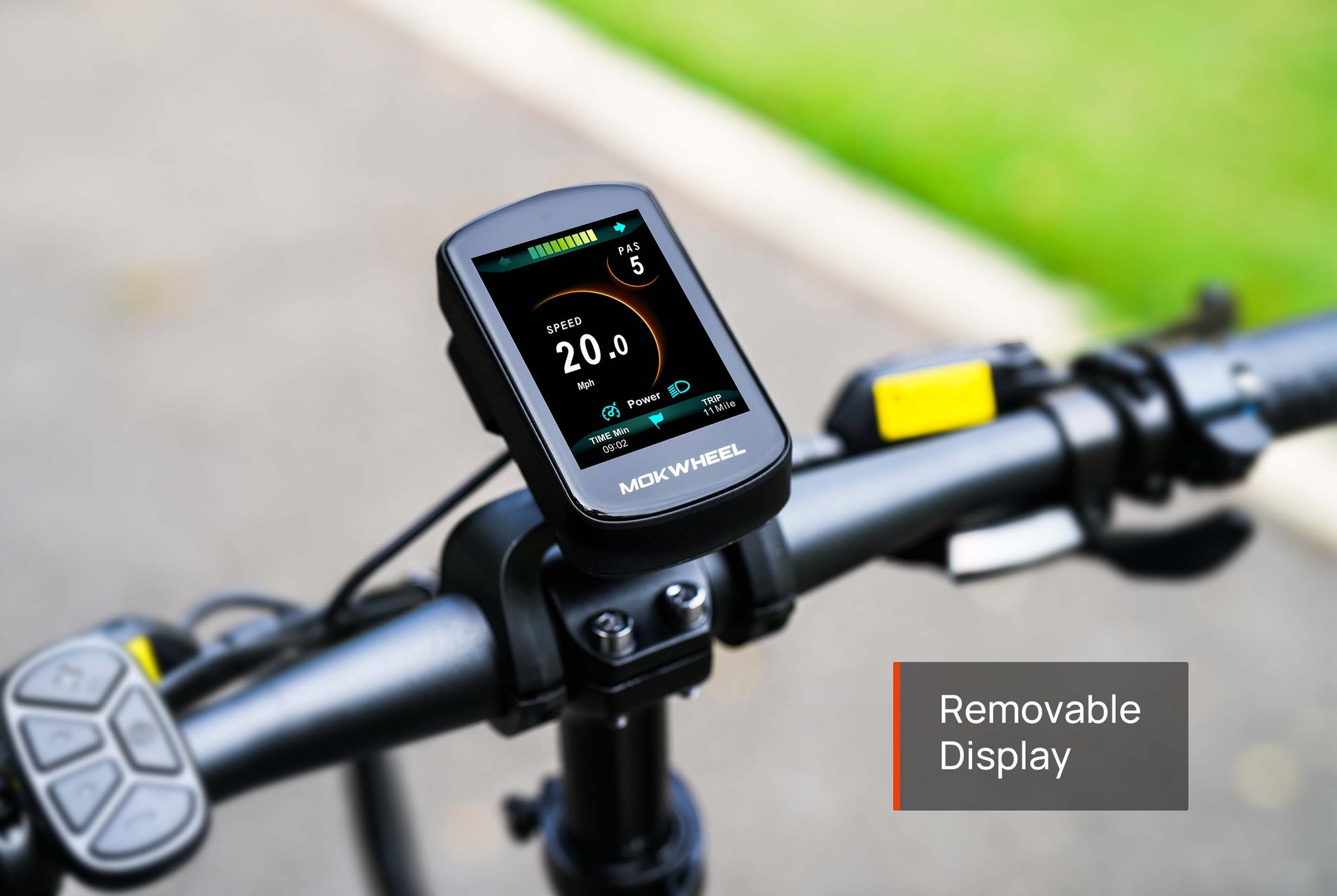

• Display: Detachable high-definition display

• Gearing: Shimano 7-speed

• Derailleur: Shimano 7-speed rear

• Chain: KMC stainless steel

• Crankset: 52T double-sided aluminum alloy

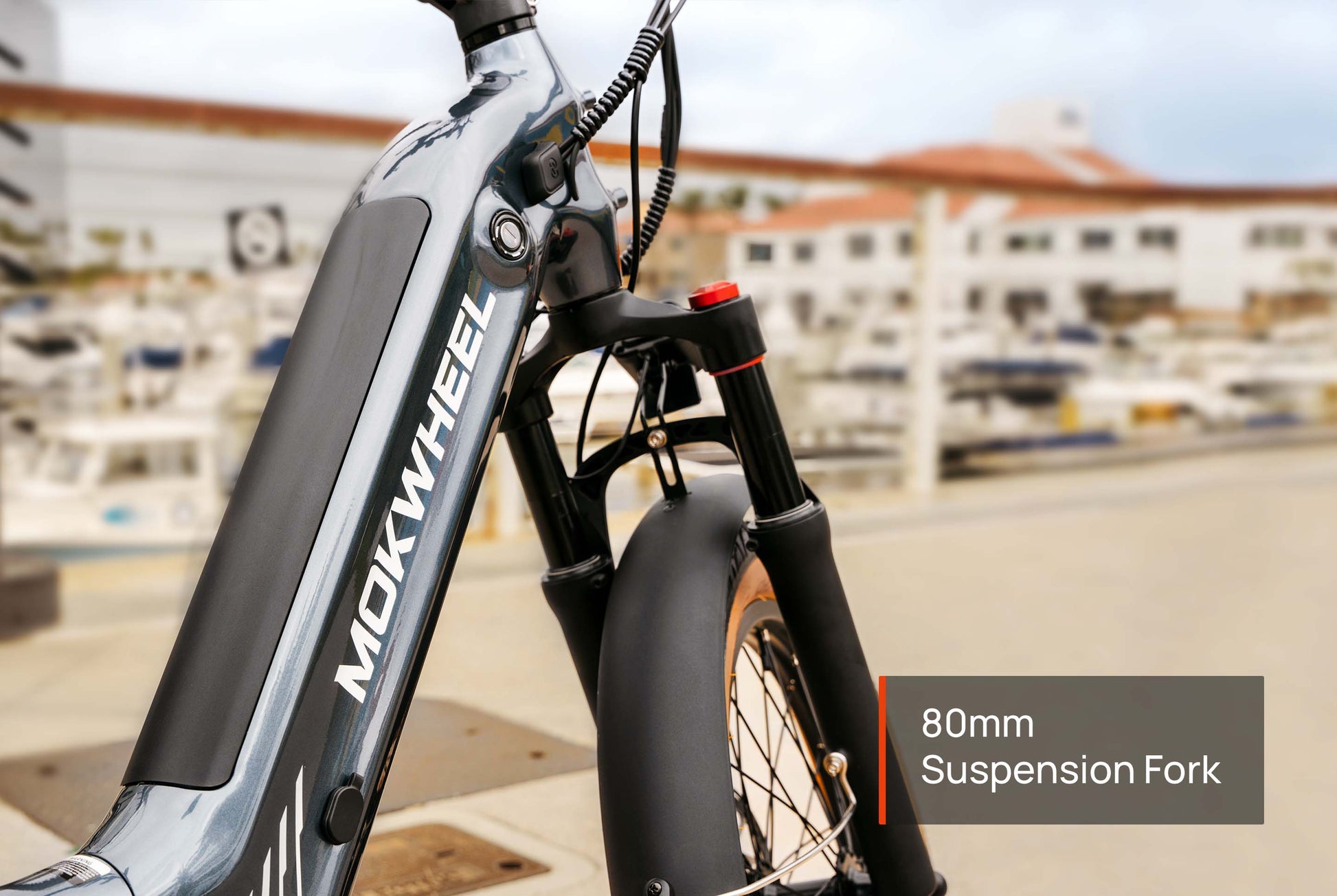

• Front Fork: 80mm travel

• Frame: 6061 aluminum alloy with internal battery

• Throttle: Thumb throttle

• Handlebar Length: 620 mm

• Kickstand: Aluminum alloy

• Rims: Aluminum alloy

• Saddle: Customized comfort leather seat

• Spokes: Heavy-duty carbon steel, front 13G × 172 mm / rear 13G × 123–125 mm

Compact. Powerful. Effortlessly Portable.
The Slate Ebike delivers exceptional performance in a foldable, space-saving design—perfect for commuters, travelers, and anyone who wants the freedom of an e-bike without the bulk.
