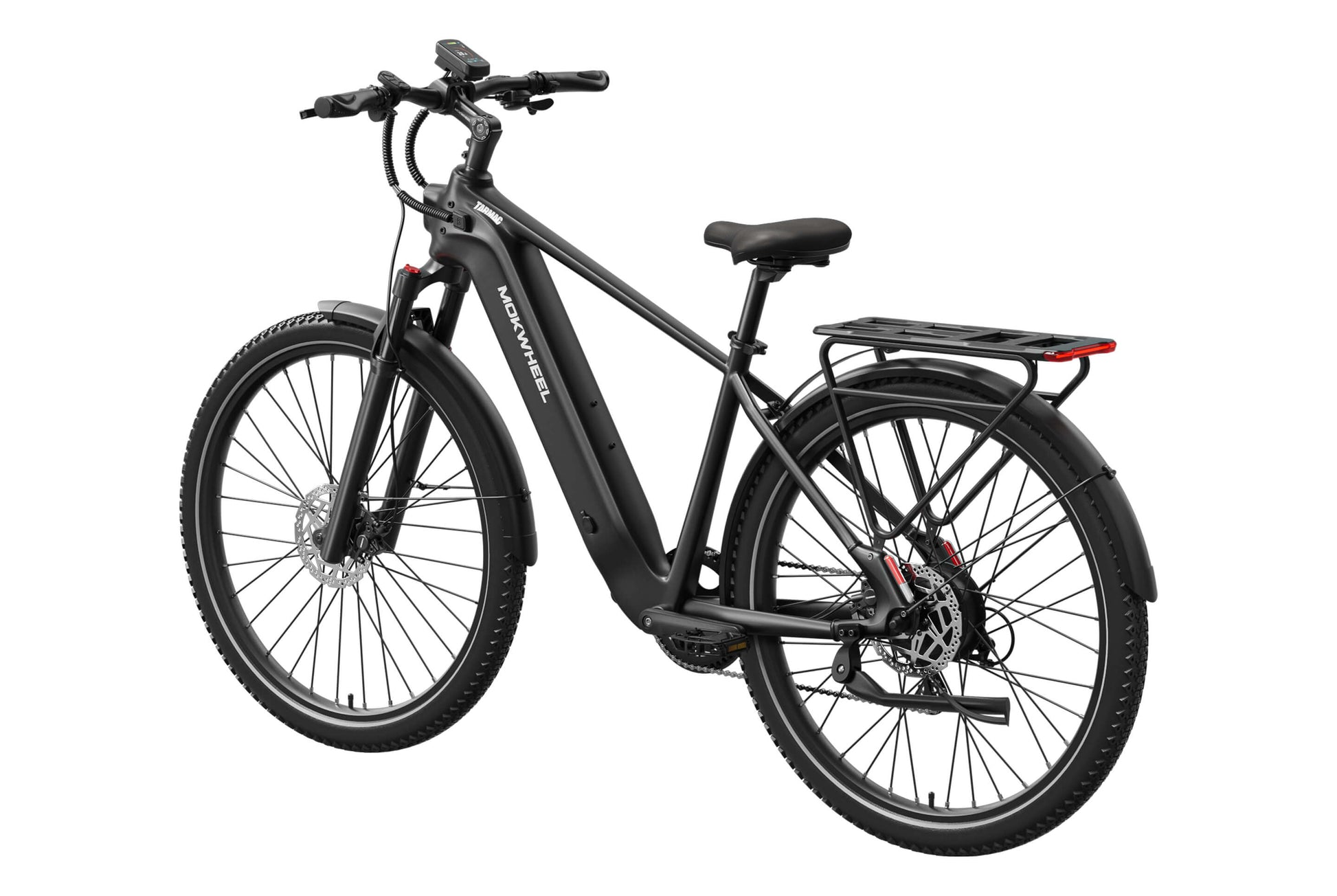

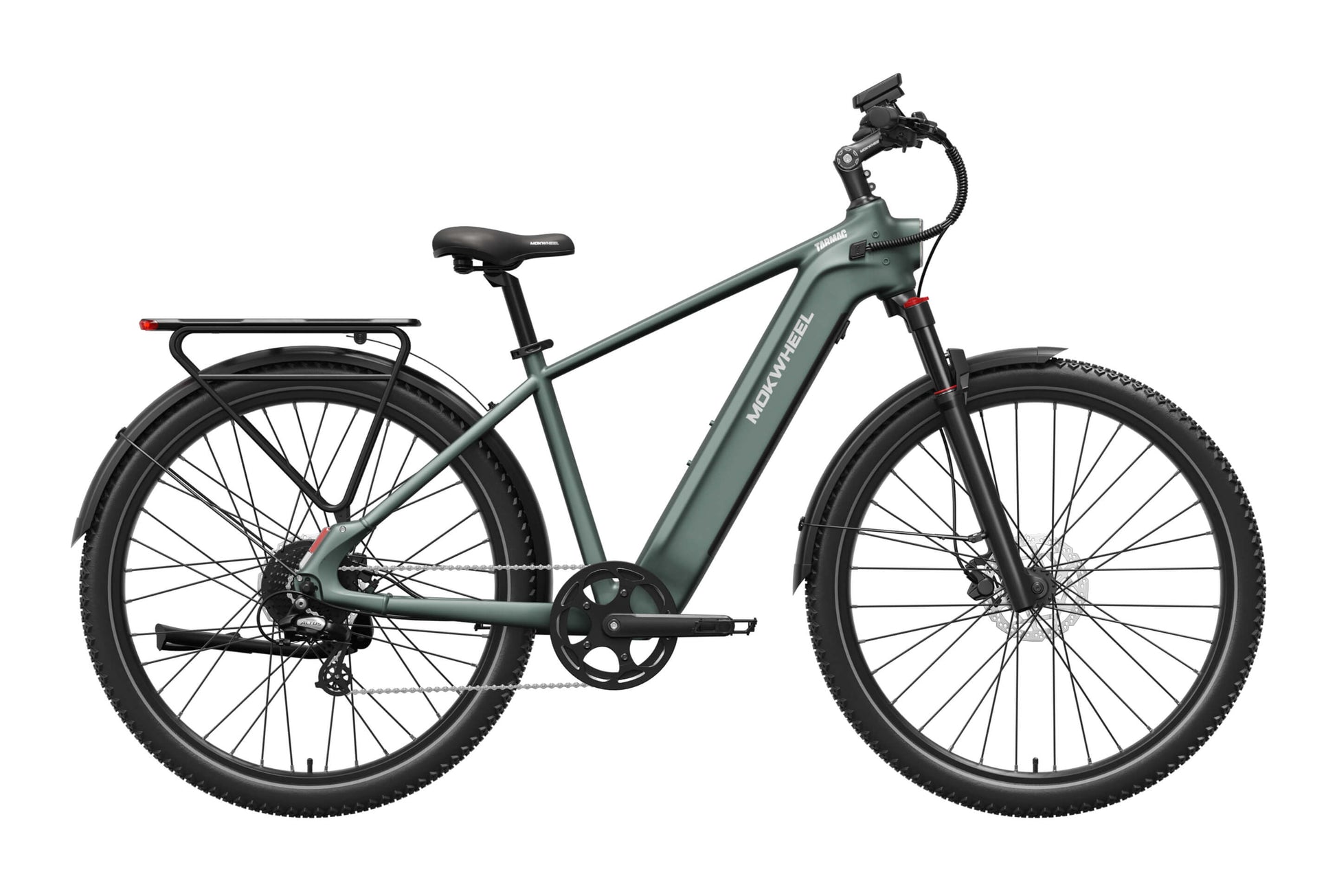

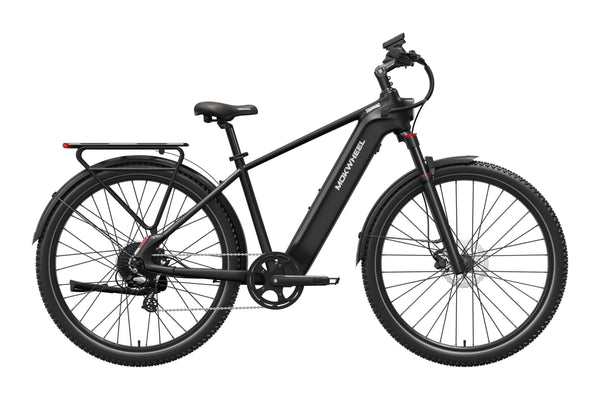

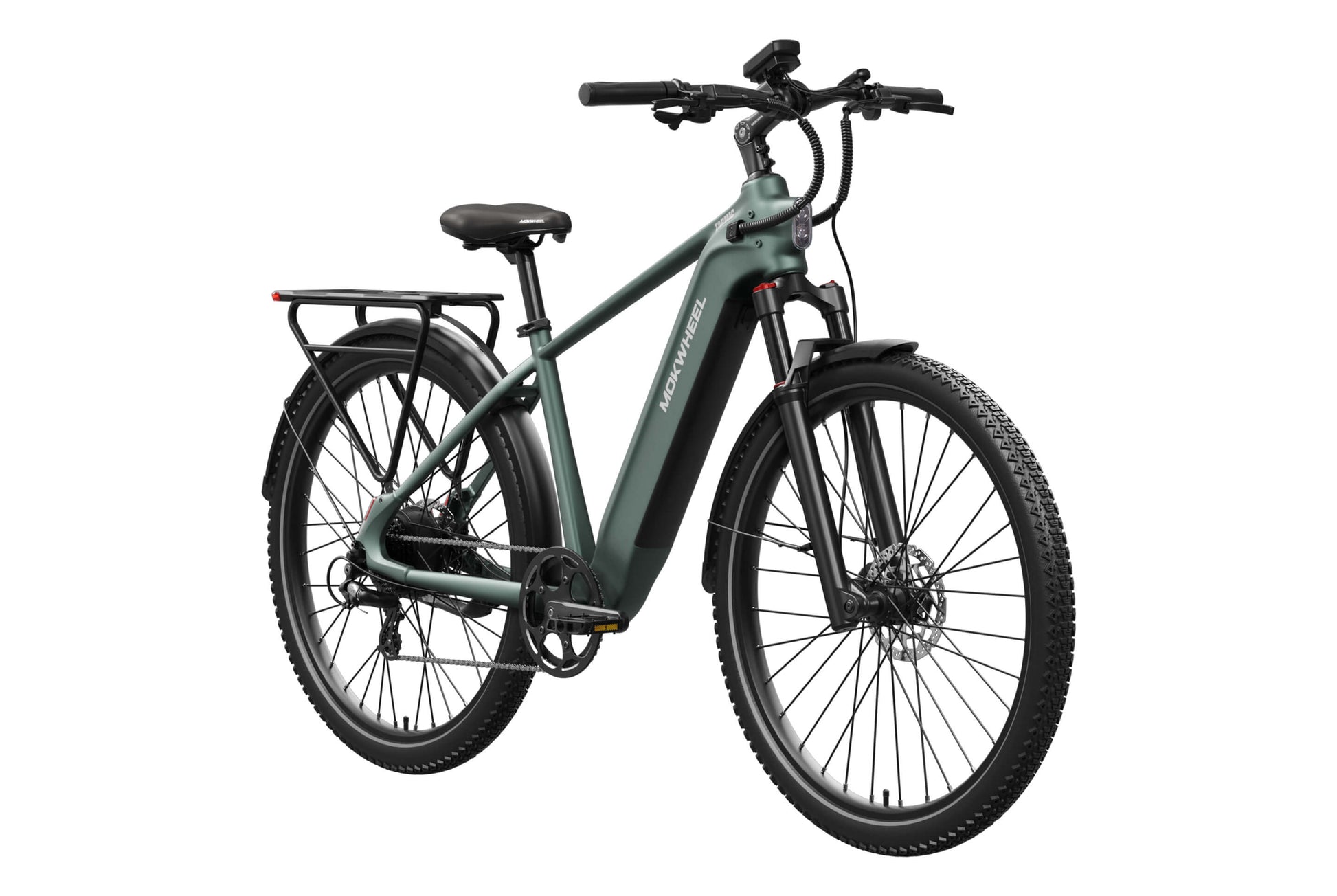

Mokwheel Tarmac Ebike

Tarmac Ebike

Size and Fit
The Tarmac comes in two sizes to suit most adults, ensuring an optimal ride for a wide range of heights:

• Large: 5'7" – 6'7"

• Standard: 5'5" – 6'5"

Frame Dimensions

Large Frame:

• Reach: 17 inches

• Top Tube Length: 25 inches

• Standover Height: 32 inches

• Wheelbase: 47 inches

• Minimum Saddle Height: 36 inches

• Maximum Saddle Height: 44 inches

• Total Length: 76 inches

• Head Tube Length: 6 inches

Standard Frame:

• Reach: 16 inches

• Top Tube Length: 24 inches

• Standover Height: 31 inches

• Wheelbase: 46 inches

• Minimum Saddle Height: 34 inches

• Maximum Saddle Height: 42 inches

• Total Length: 75 inches

• Head Tube Length: 6 inches

Technical Specifications
Designed for power, reliability, and long-distance performance:

• Battery: 48V 15Ah, UL safety certified

• Charger: 48V 3A

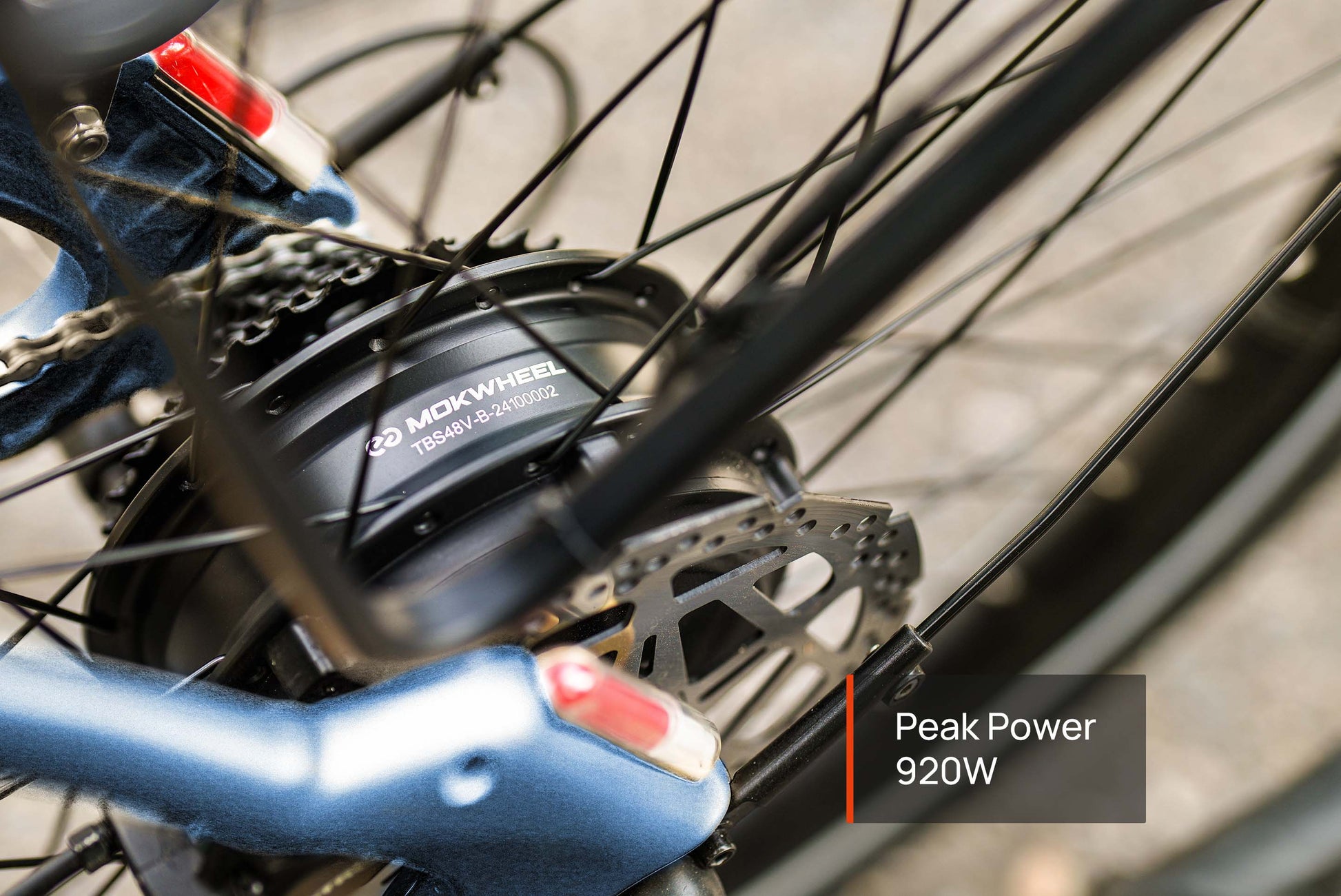

• Motor: Continuous 750W, Peak 920W, Torque 75Nm

• Speed: 20 mph with throttle, 28 mph with pedal assist

• Weight: 66 lbs

• Range: 50–60 miles

• Payload Capacity: 350 lbs

Performance and Handling
Every component is built for smooth rides, responsive control, and durability:

• Sensor: Torque and cadence sensor

• Tires: 29" x 2.35"

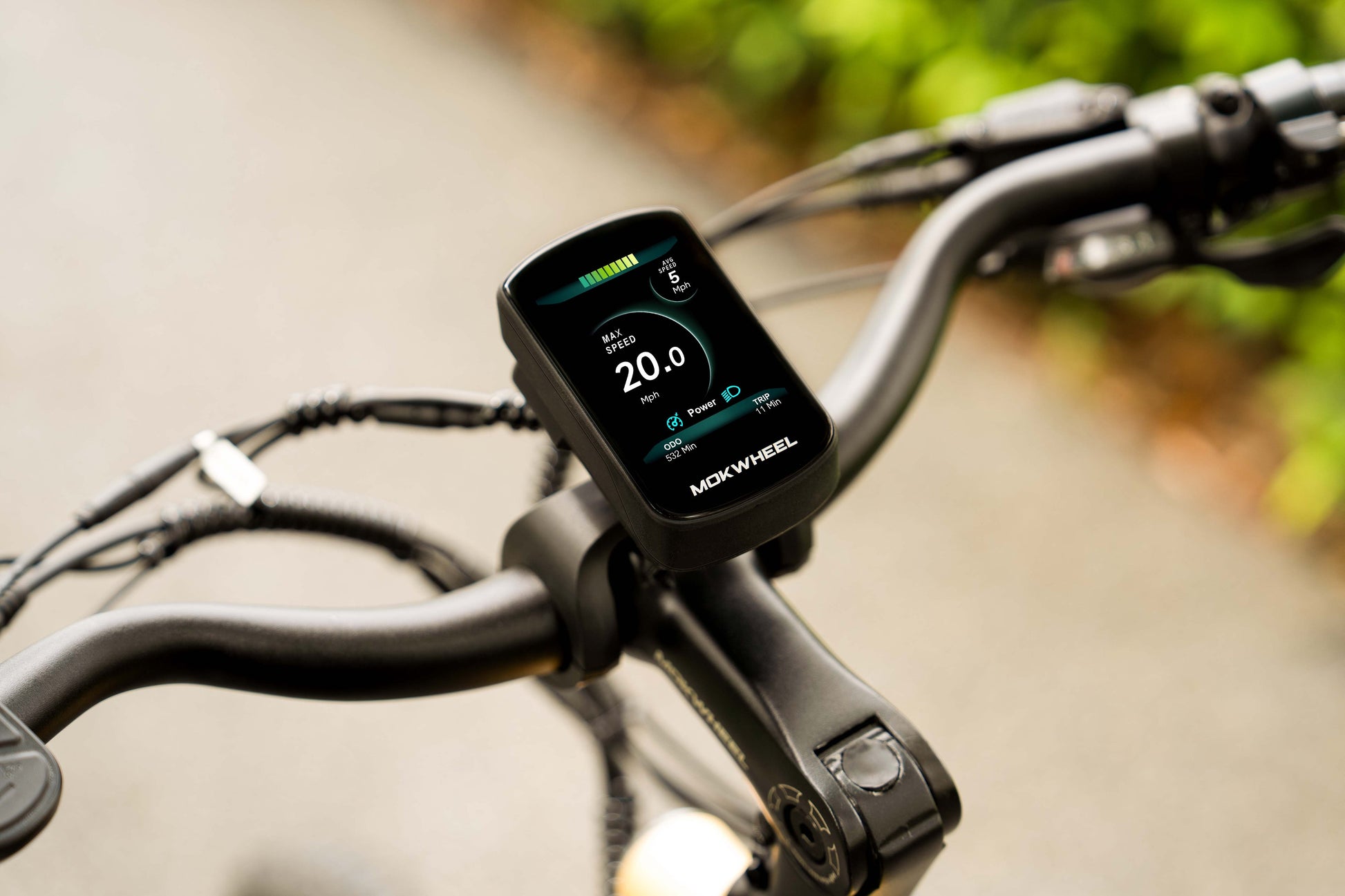

• Display: Detachable high-definition display

• Gearing: Shimano 8-speed

• Derailleur: Shimano 8-speed rear

• Brakes: TKD171 hydraulic disc brakes with aluminum lever

• Chain: KMC stainless steel

• Crankset: 46T cassette, 170mm crank

• Front Fork: 80mm adjustable suspension

• Frame: 6061 aluminum alloy

• Throttle: Thumb

• Handlebar: 680mm aluminum alloy, 31.8mm

• Kickstand: Aluminum alloy

• Rims: Aluminum alloy

• Saddle: Customized comfort leather seat

• Spokes: Heavy-duty carbon steel, front 13G × 275 mm, rear 13G × 243–245 mm

Extended Range Upgrade
Optional 940Wh battery with smart BMS enables up to 80 miles of riding for long-distance adventures.

Power. Comfort. Endurance.
The Tarmac Ebike delivers effortless power, responsive handling, and premium comfort, making it ideal for both city commuting and weekend exploration.
